Delta GR350 - Eye Shield; X1;4 Hex Head

10
ALWAYS WEAR EYE PROTECTION.
1. Place the eye shield (A) on the spark guard (Fig. 4).
2. Align the holes in the eye shield with the holes in the
spark guard. Place the eye shield spacer (A) Fig. 5 in
the spark guard.
3. Insert the eye shield bolt (A) Fig. 6 through the eye
shield (B), the eye shield spacer (C), and the spark
guard (D).
4. Place a 1/4" flat washer (E) Fig. 6 on the end of the
eye shield bolt. Fasten the eye shield knob (F) on the
end of the eye shield bolt.

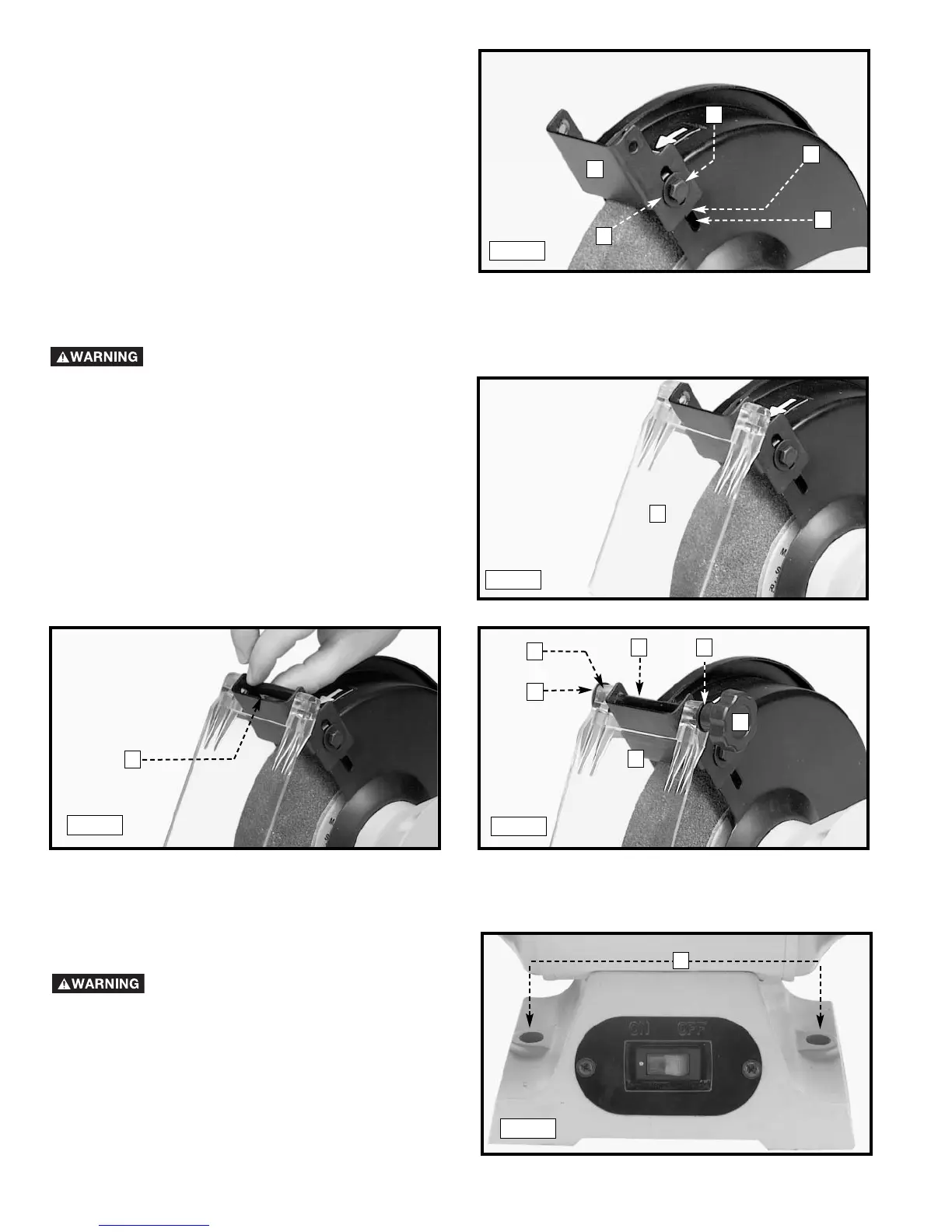

ATTACHING THE EYE SHIELDS
A
A
A
B
D
C
E
F
Fig. 4
Fig. 5
Fig. 6
FASTENING THE GRINDER TO THE SUPPORTING SURFACE
If during operation, there is any
tendency for the grinder to tip over, slide, or "walk",
the grinder must be secured to the supporting
surface using fasteners (not supplied) through the
two holes (A) Fig. 7 in the grinder base.
A
Fig. 7
SPARK GUARDS
Mount the spark guard (A) Fig. 3 to the side of each
wheel guard, using the 1/4-20x1/4" hex head screw (B)
and 1/4" flat washer (C).
NOTE: Place the tab (D) Fig. 3 (on the side of the spark
guard) (A) in the slot (E), before attaching the spark
guard (A) to the grinder.
Adjust the spark guard (A) as close as possible to the
grinding wheel to prevent sparks from striking your
hand. As the wheels wear down, adjust the spark guard
(A) accordingly.
A
C
B
D
E
Fig. 3
