Delta LD-100E-M22 User Manual

Chapter 2 Settings and Measurements
LD-E Operation Manual
2-5

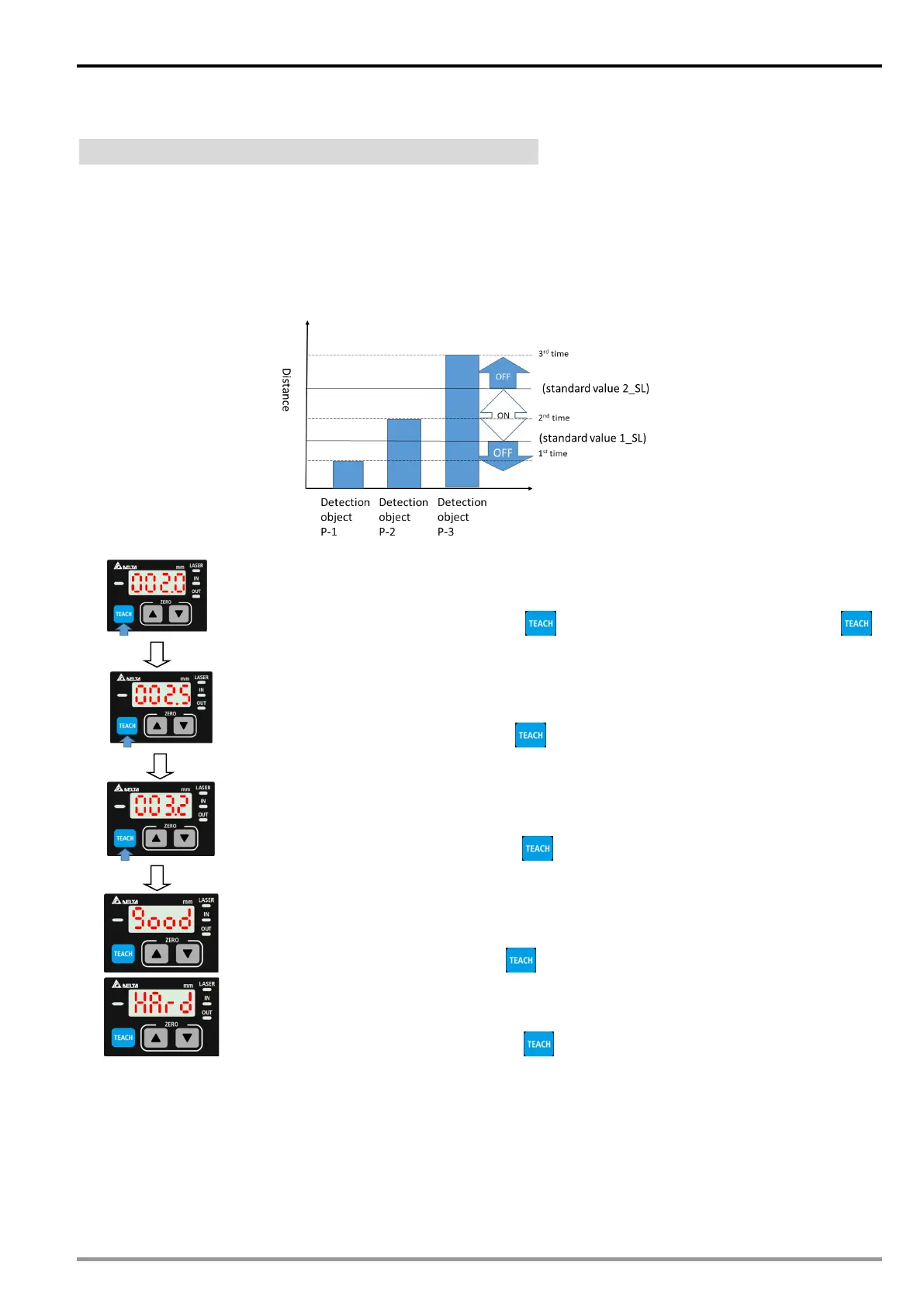

3 point teaching (window comparison mode)
 Before executing 3 point teaching, set the reference value 1_SL between 1
st
time and 2
nd
time
and set the reference value 2_SL between 2
nd
time and 3
rd
time.
 First, come to the advanced setting, set the detection output to _P_3 (3-point teaching)
1. When there is a detection object (P-1), press the first to enter the teaching mode, and press the second
2. With the detection object (P-2), press the third
3. With the detection object (P-2), press the fourth
When the object can be detected, press the fifth to leave.
When the object cannot be detected, press the fifth to leave.
