25

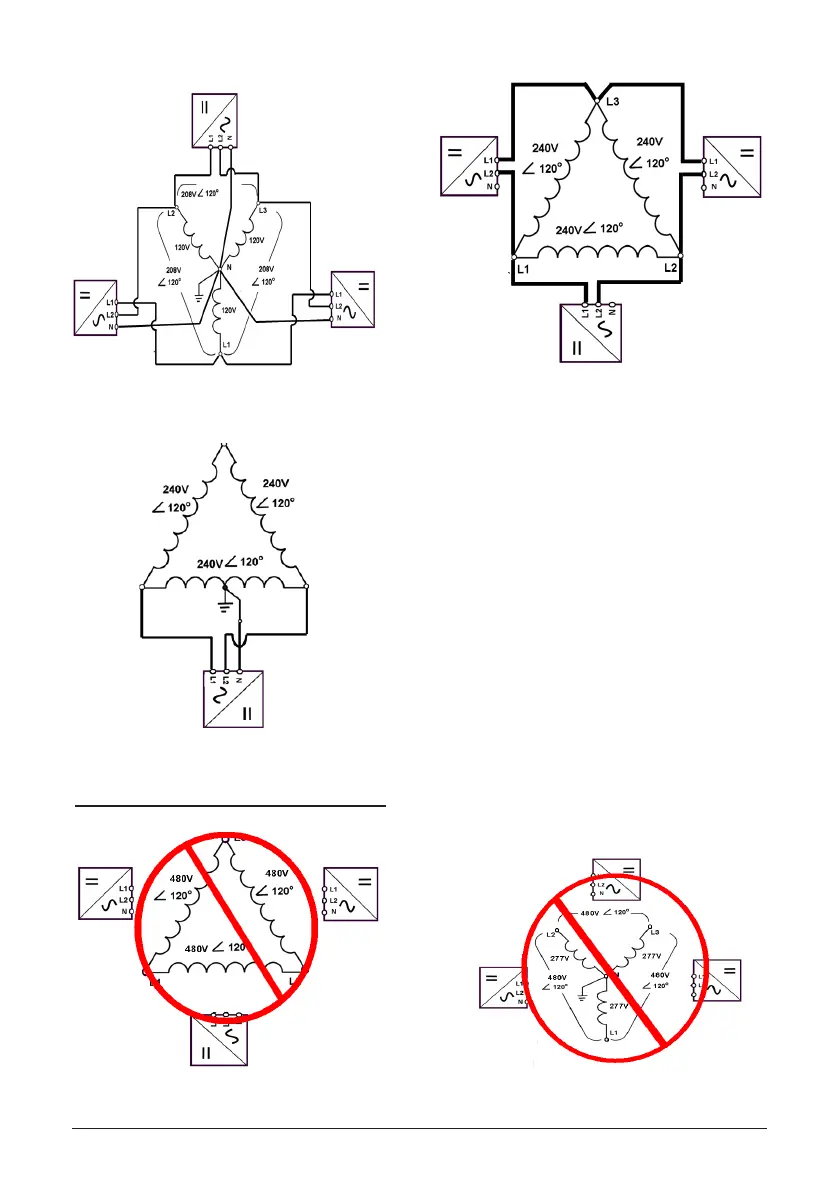

Figure 17: 208V / 120V WYE AC Grid
Figure 19: 240V / 120V Stinger AC Grid
Figure 18: 240V Delta AC Grid
PublicGridCongurationsNOTAllowed:
Figure 20: 480V Delta AC Grid Figure 21: 480V / 277V WYE AC Grid
