Shower Head and Tub Spout Installation

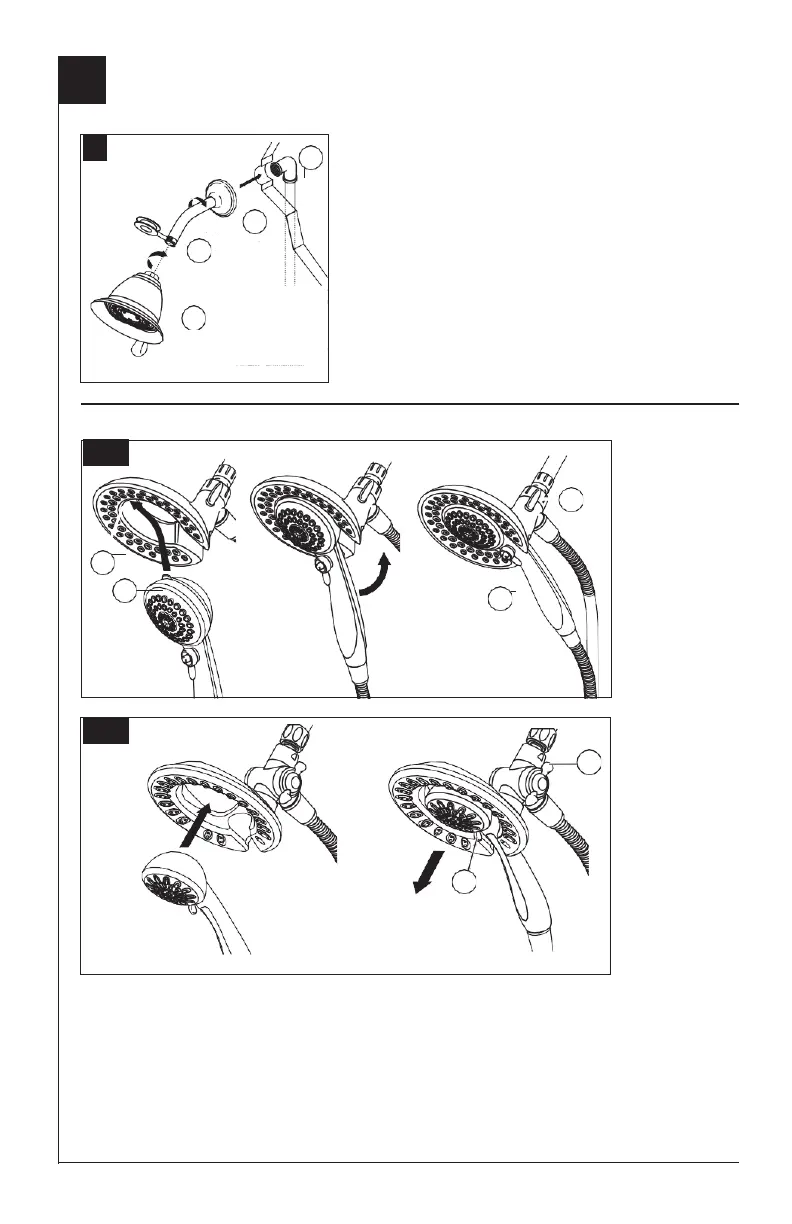

FOR SHOWER HEAD INSTALLATION: Connect top
outlet (1) to shower arm (2) with proper fittings. To
prevent damage to finish on shower arm, insert wall end
of shower arm into shower flange (3) before screwing
arm into riser connection. Thread shower head (4) onto
shower arm. Apply plumber tape to pipe threads on both
ends. Do not overtighten shower head.
B-1: To combine the two showers, insert the top tab (1) on the hand shower into the slot (2) of
the shower head. Push the hand shower into the shower head until the two parts snap together.
B-2: To combine the two showers, push the hand shower into the shower head, then pull down
on the hand shower until locked with the shower head.
If the shower head moves when removing the hand shower, hand tighten the connection between
the shower head and the shower arm.
To change spray modes, turn the lever (3) left or right to the desired setting. Turn knob (4) to
change between shower head only, shower head and hand shower or hand shower only.
3
B-2
4
3

Delta MultiChoice 14 Series Specifications

General

Type	Shower Faucet
Valve Type	MultiChoice Universal Valve
Brand	Delta
Series	14 Series
Handle Style	Lever
Number of Handles	1
Spray Patterns	Full Body Spray
Handle Type	Single Handle
WaterSense Certified	Yes
ADA Compliant	Yes
Warranty	Limited Lifetime Warranty
Finish	Chrome
Flow Rate	1.75 GPM
Installation	Wall Mount
Compatibility	Compatible with Delta MultiChoice Universal Valve
