Delta MultiChoice 17 Series Manual

107529 Rev. F
SHUT OFF WATER SUPPLIES.
Consider the type and thickness of your
finished wall before placing your stringer

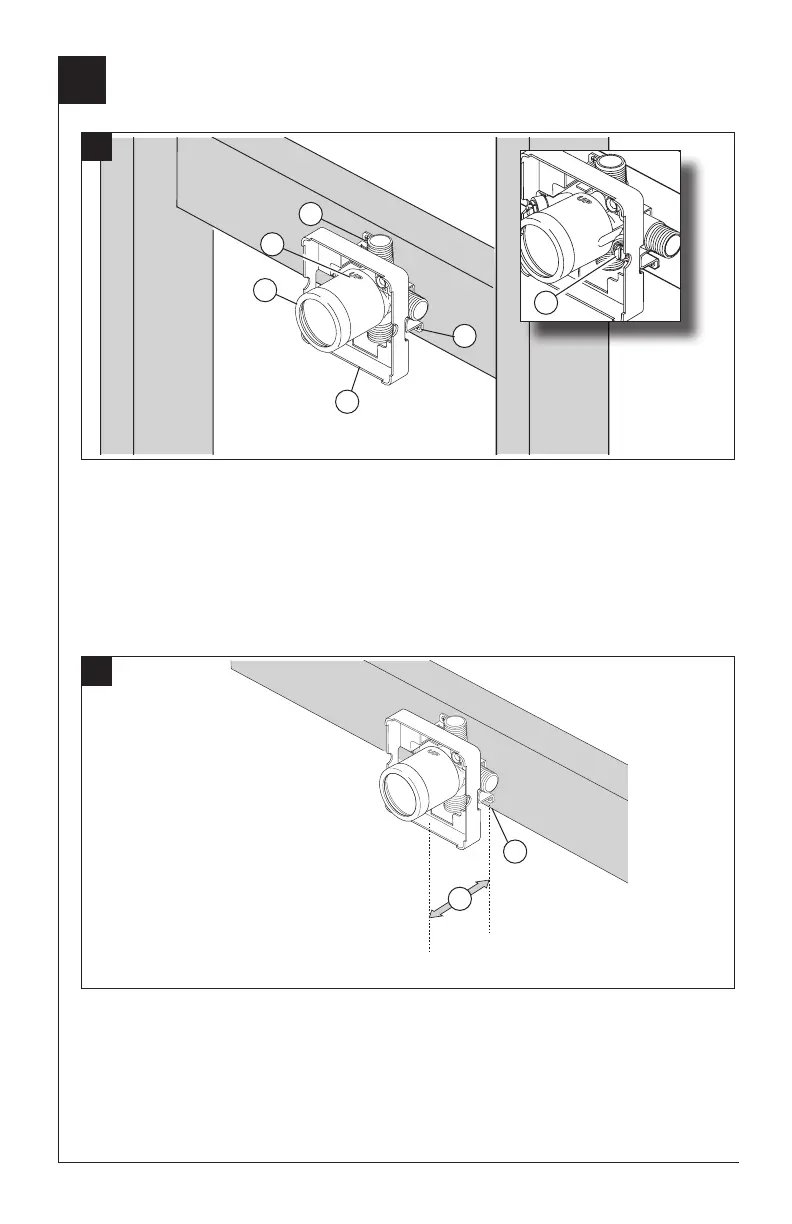

back plate. Install the body (1) so the
surface of the finished wall is flush with the
front of the plasterguard (2) ± 3/8". Note:
For models with stops (3), plasterguard
A.
B.
Distance (1) from the stringer (2) to the
front of the plasterguard is 2.8" (71 mm).
must be flush or subflush 3/8" to
finished wall. Mount body using the two
stringer mounting holes (4) on the bracket.
Make sure the word “UP” (5) is on top of the
valve body when installing.
If a thin wall is used, be sure to have the
plasterguard behind the wall, otherwise the
wall should always be flush with the front of
the plasterguard. See instruction on the bag
for thin wall mounting.
1
2
5
4
4
1
2
3
3
1
MultiChoice
®
Rough-In Installation
(When your product requires)

Delta MultiChoice 17 Series Specifications

General

Series	17 Series
Material	Brass
Handle Type	Lever
Diverter Location	Integrated
ADA Compliant	Yes
WaterSense Certified	Yes
Flow Rate	2.5 GPM
Installation	Wall Mounted
Cartridge	Dual-function pressure balance cartridge
Valve Type	Pressure Balance
Temperature Control	Thermostatic
Finish	Varies by trim kit
