- 2 -

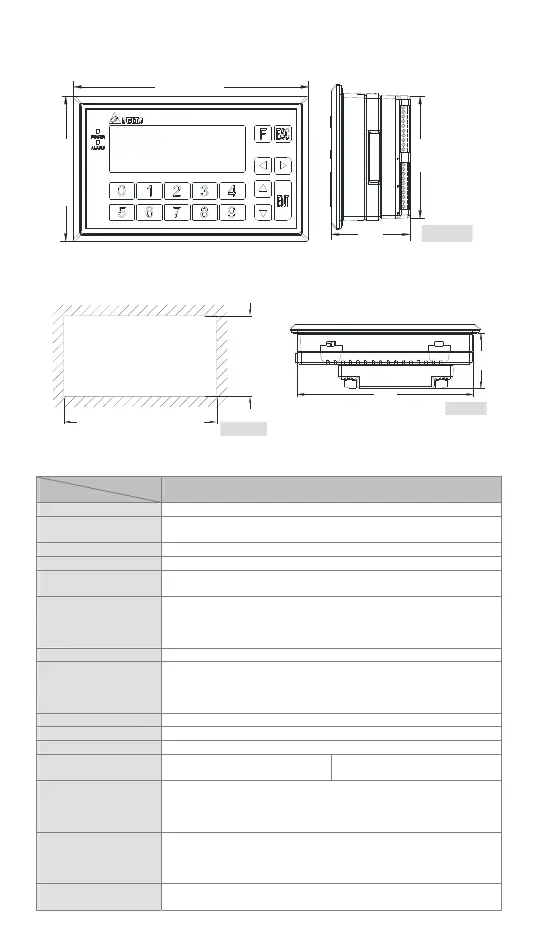

Front View and Right Side View (Units: mm, [ ]: inch)
91.73
[3.613]
59.2
[2.331]
175.8 [6.921]
1
0
8
.
6
[
4
.
2
7
6
]
Figure3
Mounting Dimensions
(Units: mm, [ ]: inch)
Top View (Units: mm, [ ]: inch)
Figure4
162.7~164.0 [6.4055~6.4567]
Thickness Range 0.5~5mm
9
5
.
5
~
9
7
.
0
[
]
3
.
7
5
9
8
~
3
.
8
1
8
8
162.2
[6.386]
51.2
[2.016]
Figure5
Function Specifications
Model
Spec.
TP04P series
PLC program capacity 8k steps
Screen type/Display
color
STN-LCD/Monochromatic
Driver Delta automation products
Function/Numeric keys 0~9, ESC, F, Enter and Up/Down/Left/Right keys
Alarm LED indicator
(Red)
Power indication (Blinking for three times)/Communication error
alarm/User program indication
Backlight
Automatically turning off the backlight: 1~99 minutes (0: The
backlight is not turned off.)
(The life span of the backlight is about 50,000 hours at a
temperature of 25°C)
Contrast adjustment Set by software, 10 levels of adjustment
Language/Font
ASCII: (Code page 850) Alphanumeric code (including European
characters)
Taiwan: Traditional Chinese fonts
China: Simplified Chinese fonts
Resolution 192 × 64 dots
Display range 101.8 mm (W) × 35.24 mm (H); 4.1” (diagonal)
Font size ASCII: 5 × 8, 8 × 8, 8 × 12, 8 × 16
Display text
5×8 dots: 38 characters × 8 rows
8×8 dots: 24 characters × 8 rows
8×12 dots: 24 characters × 5 rows
8×16 dots: 24 characters × 4 rows
Program
upload/download
communication port
USB (COM1)
Transmission method: Virtual communication port
Data length: 7 or 8 bits, Stop bits: 1 or 2 bits, Parity: None/Odd/Even
Baud rate: 9,600 bps~115,200 bps
USB: USB (Type B) terminal
Extension
communication port
RS485 (COM2)
RS485 (COM3)
Asynchronous transmission method: RS-485
Data length: 7 or 8 bits, Stop bits: 1 or 2 bits, Parity: None/Odd/Even
Baud rate: 9,600 bps~115,200 bps
RS-485: 8 PIN-removable terminal block
Download & Monitoring
method
Download program to TP through virtual COM port
