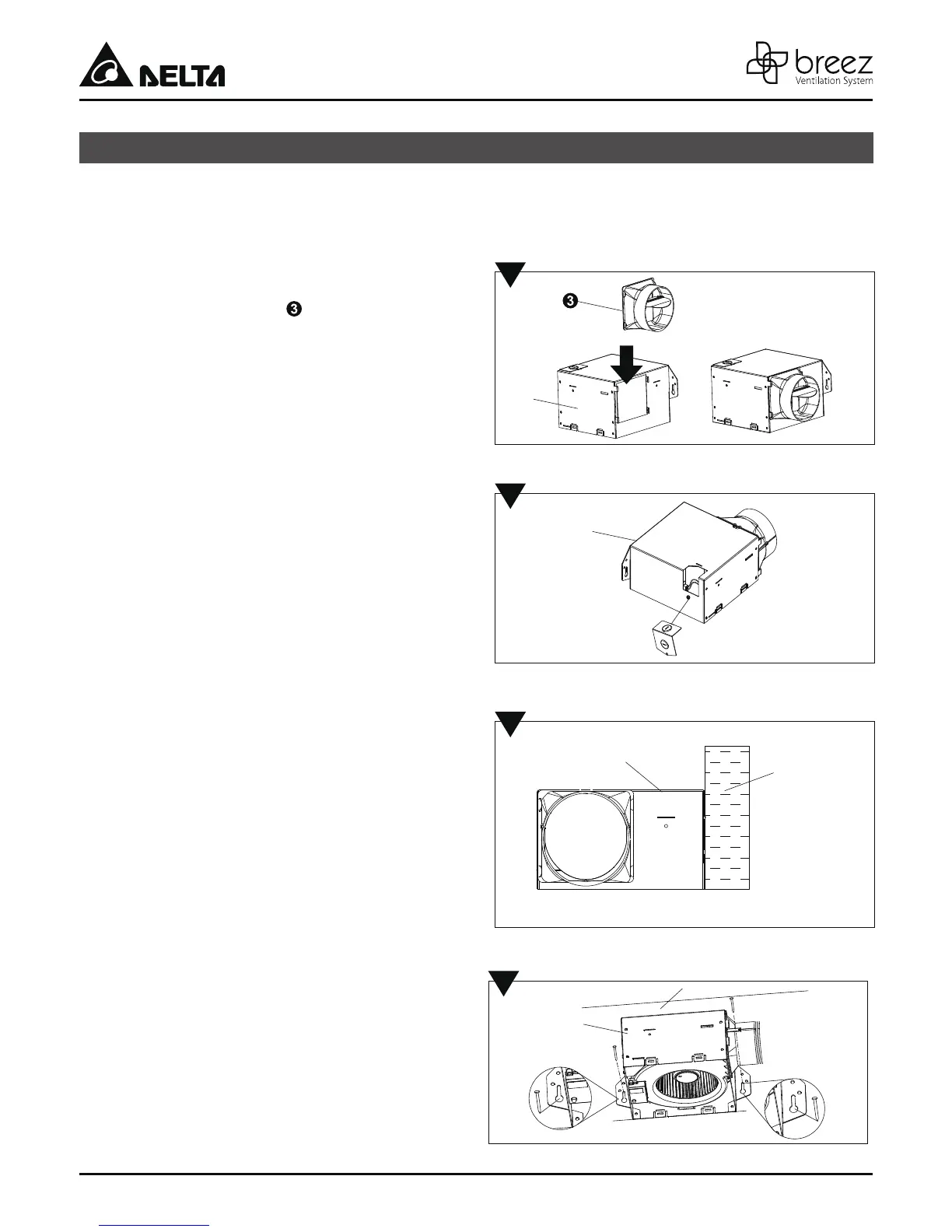

ASSEMBLY INSTRUCTIONS
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Attach the Duct Connector to the Fan Body .
❶
2.
NEW CONSTRUCTION
2
1
3
❶
Remove the wiring box cover from the Fan Body
. Remove the wiring knockout from the wiring box
cover with a flathead screwdriver (not included).
❶
❶
3.
Place the Fan Body next to a ceiling joist or wall
stud. The Fan Body should be level and
perpendicular to the joust or stud.
❶
❶
Joist or
wall stud
❶
4.
4
Mount the Fan Body to the joist or stud using
nails (not included) were indicated.
Joist or
wall stud
Nail
Nail
❶
❶
