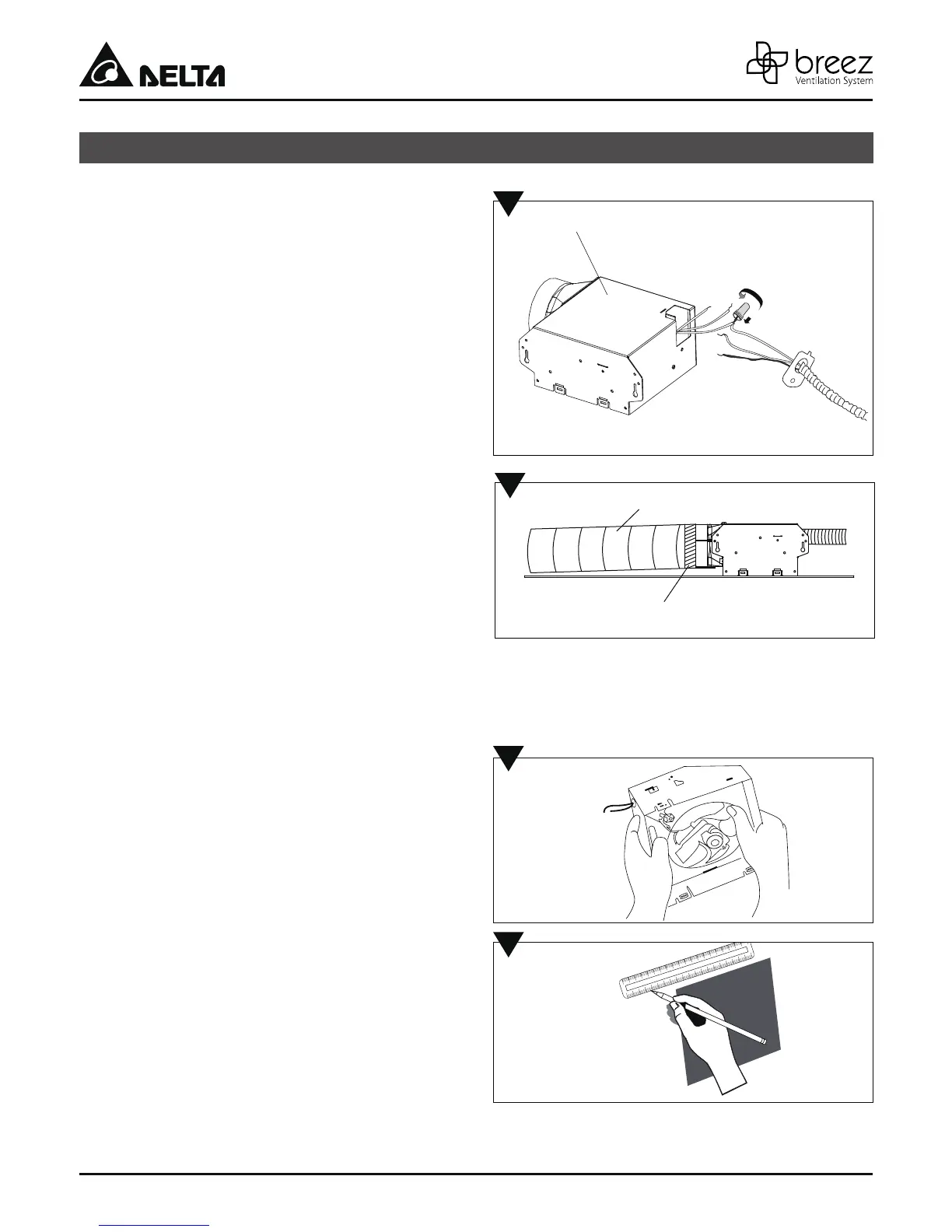

ASSEMBLY INSTRUCTIONS
5.
Turn off power source. Review all safety precautions.
1. Remove existing fan.
2.
5
1
2
EXISTING CONSTRUCTION
BEFORE INSTALLATION
Pull the wire through the hole and into the junction
box(not included), secure 120VAC house wiring
from the wall diagram on page4. 14AWG is the
smallest conductor that shall be used for
branch-circuit wiring.
Push the wires back through the hole. Reattach
the wiring box cover.
Measure the opening to ensure it is large enough
to accommodate the new Fan Body(7 1/2in. x 7
1/4in.).
Note: 7 1/4 inch side of opening should be flush
with the joist.
6
6
6. Install a circular 3 in. duct (not included) and
secure it with duct tape or clamps
(neither included).
Finish ceiling work. The ceiling hole should be
aligned with the edge of the fan housing.
Ceiling
3 in. Duct
Duct tape
or clamp
❶
To Next Page
