Delta VFD022B43A - 3 HP to 5 HP (VFD022 B21 A, VFD037 B23 A, VFD037 B43 A)

VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-10

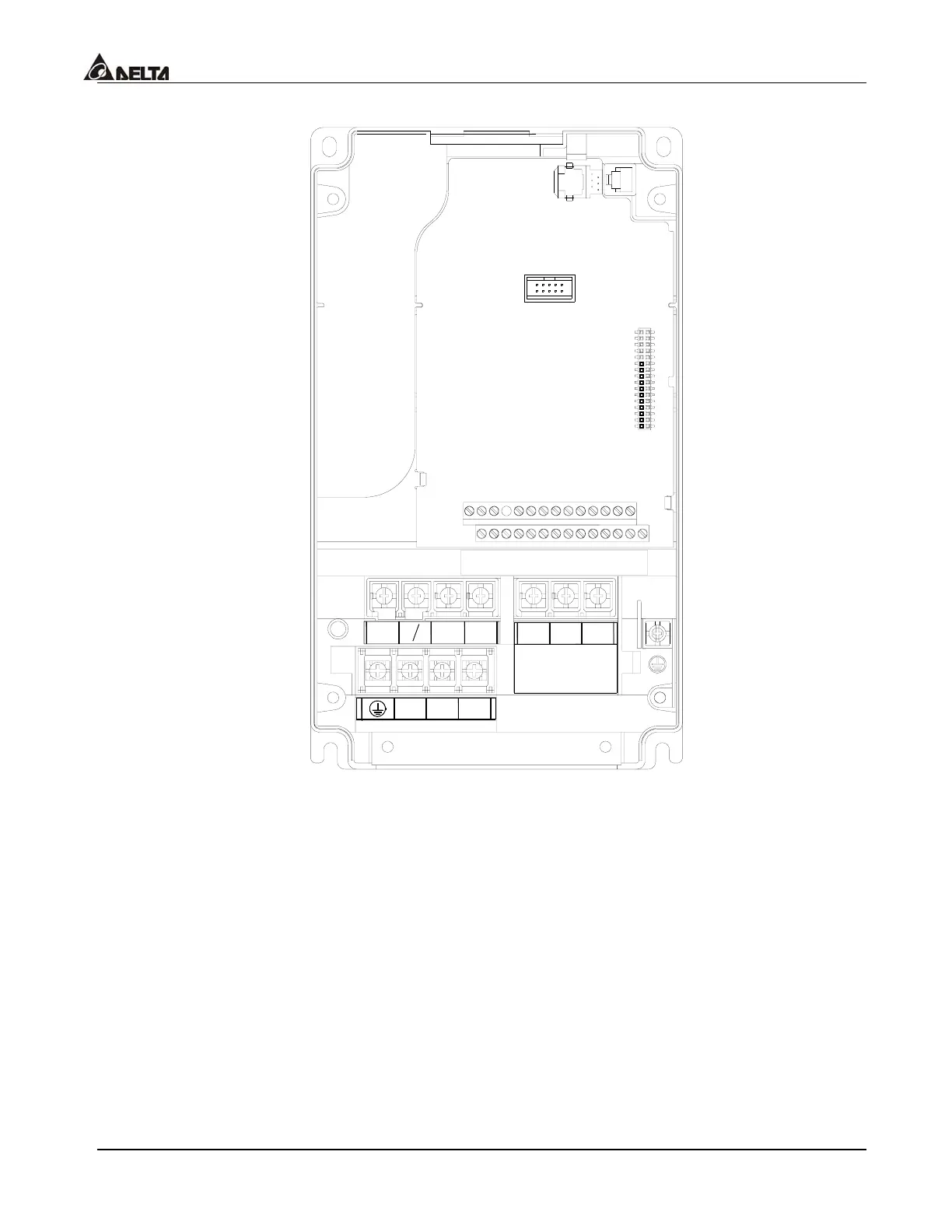

3HP to 5HP (VFD022B21A, VFD037B23A, VFD037B43A)
+1
+2
B
1
-
B
2
R/L1 S/L2 T/L3
Screw Torque :
Wire Gauge :
18Kgf-cm
18~10AWG
U/T1 V/T2 W/T3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
]Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG
Wire Type: Stranded copper only, 75°
C
