VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
1-1
CHAPTER 1 RECEIVING AND INSPECTION
This VFD-B AC drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC drive, please check for the following:
Receiving
Check to make sure that the package includes an AC drive, the User Manual, dust
covers and rubber bushings.
Inspect the unit to insure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

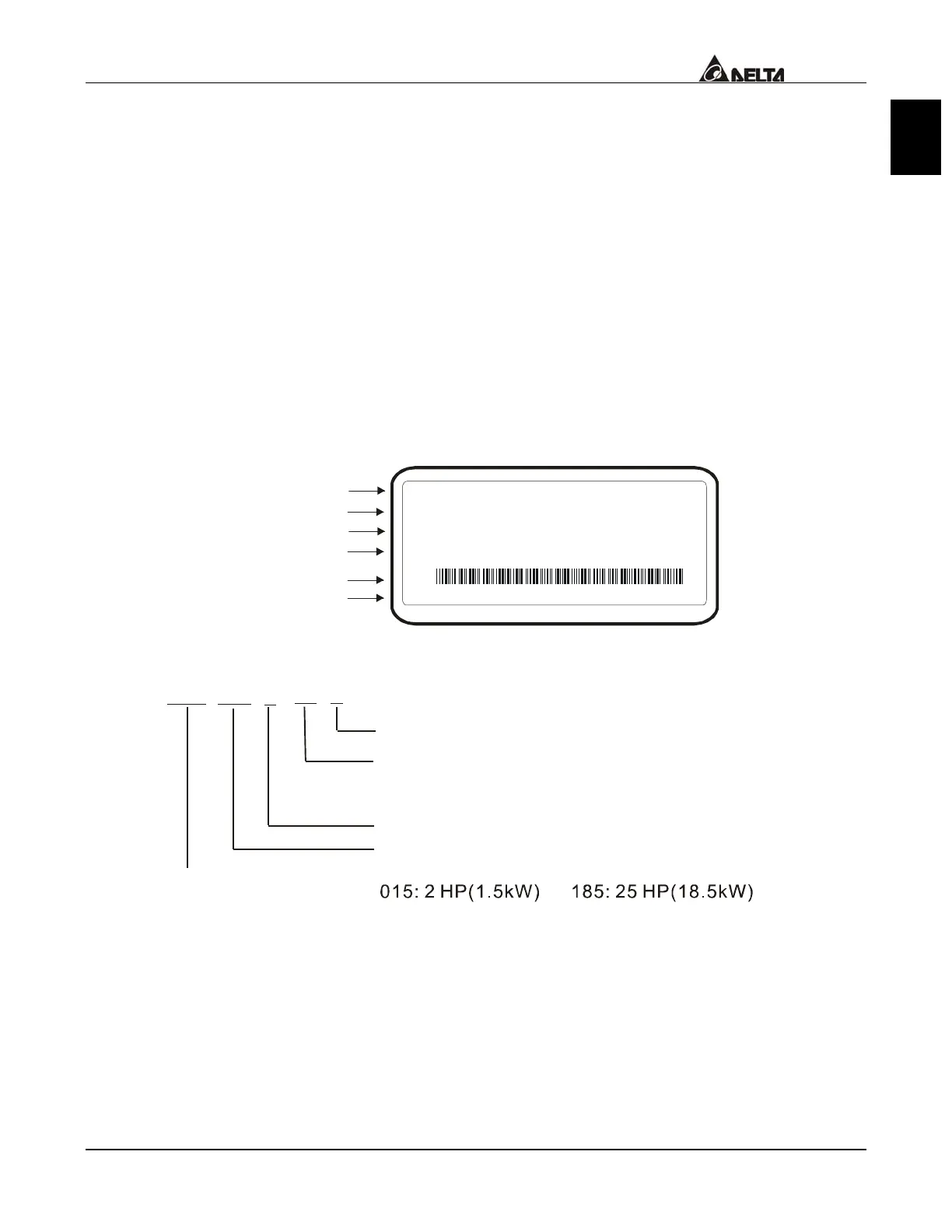

1.1 Nameplate Information: Example for 1HP/0.75kW 3-phase 230V AC drive
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Serial Number & Bar Code
Enclosure type
MODE : VFD007B23A
INPUT : 3PH 200-240V 50/60Hz 6.0A
OUTPUT : 3PH 0-240V 5.0A 1.9kVA 1HP
Freq. Range : 0.1~400Hz
ENCLOSURE: TYPE 1
007B23A0T0220001
1.2 Model Explanation:
VFD
Version Type
23
Input Voltage
21:Single phase 230V
23:Three phase 230V
43:Three phase 460V
B
B Series
007
pplicable motor capacity
007: 1 HP(0.7kW) 150: 20HP(15kW)
022: 3 HP(2.2kW) 220: 30 HP(22kW)
037: 5 HP(3.7kW) 300: 40HP(30kW)
055: 7.5HP(5.5kW) 370: 50 HP(37kW)
075: 10 HP(7.5kW) 450: 60HP(45kW)
110: 15 HP(11kW) 550: 75HP(55kW)
750: 100HP(75kW)
Series Name
