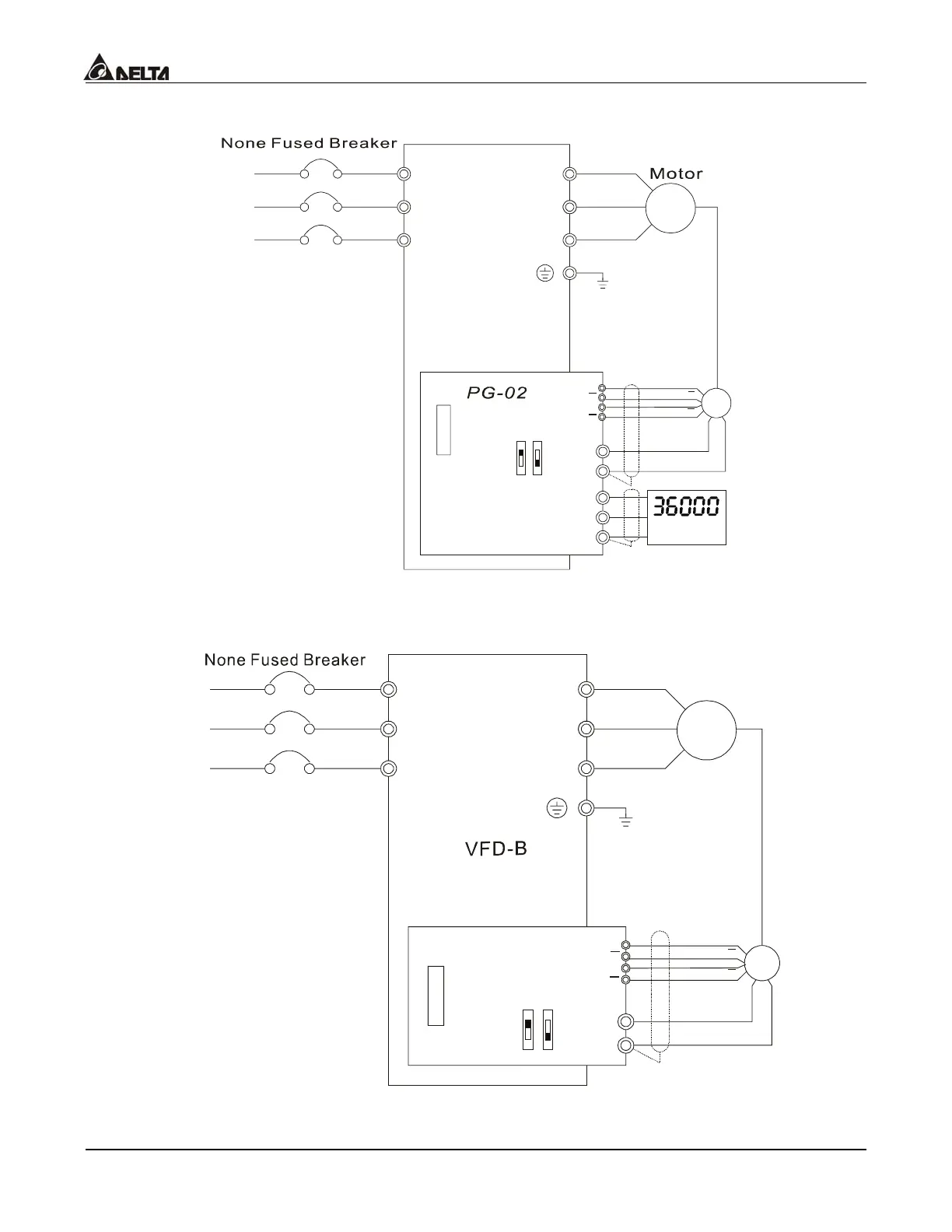

2.2) Basic Wiring Diagram with RPM Meter Attached.
R/L1
S/L2
T/L3
NFB
U/T1
V/T2
W/T3
IM
3~
VP
COM
VFD-B
+5V
GND
OC
5VTP
12V
PG-02 and Pulse Generator Connections
A/O
B/O
RPM meter
DCM
PG
A
B
A
B
A
B
A
B
R/L1
S/L2
T/L3
2.3) When Pulse Generators is Open Collector type, please refer to following wiring.
R/L1
S/L2
T/L3
NFB
U/T1
V/T2
W/T3
IM
3~
Motor
PG
A
B
VP
DCM
PG-02
5V
GND
A
B
OC
5V
TP
12V
Factory
Default
Pulse Generator
Output 5V DC
A
B
A
B
R/L1
S/L2
T/L3
