Chapter 6 Control TerminalsCP2000
6-6

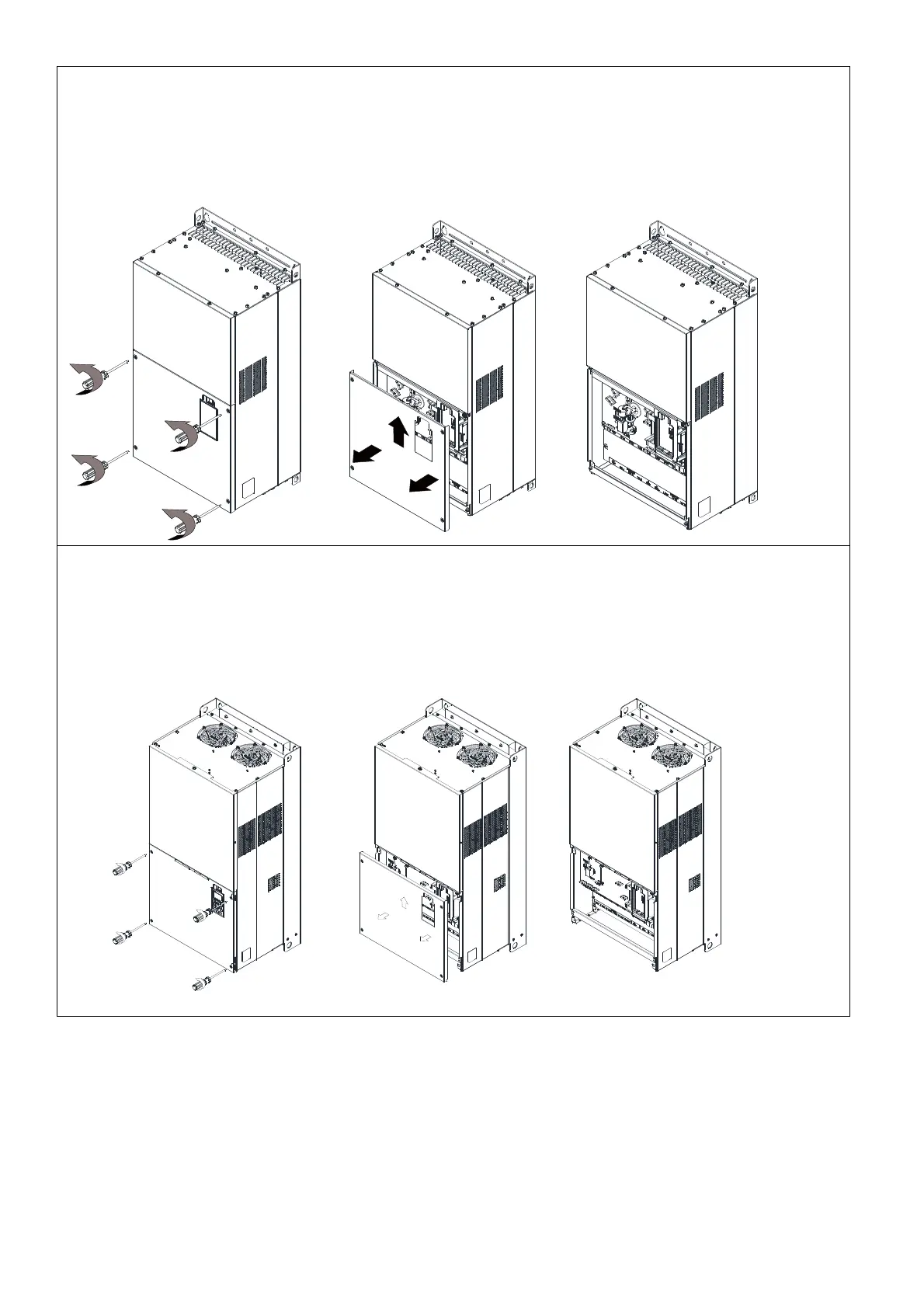

Frame F
Applicable models:
VFD1600CP43A-00/-21; VFD1850CP43B-00/-21; VFD1600CP63A-00/-21; VFD2000CP63A-00/-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward
Figure 6-10
Frame G
Applicable models:
VFD2200CP43A-00/-21; VFD2800CP43A-00/-21; VFD2500CP63A-00/-21; VFD3150CP63A-00/-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward
Figure 6-11
