Chapter 7 Optional AccessoriesCP2000
7-16

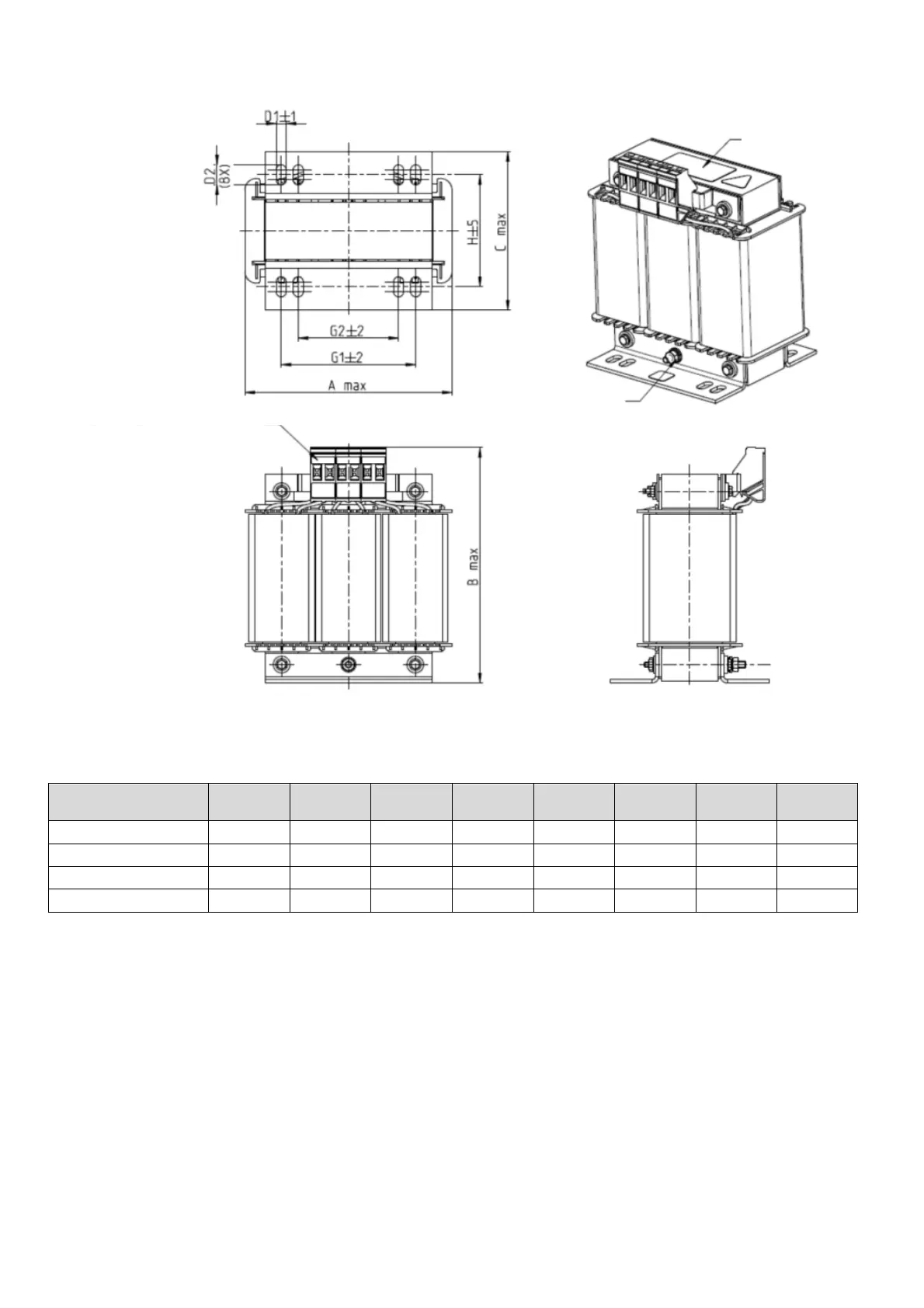

AC input reactor dimension and specification:
Unit: mm
Input AC reactor
Delta part #
A B C D1*D2 E G1 G2 PE D
DR005A0254 100 115 65 6*9 45 60 40 M4
DR008A0159 100 115 65 6*9 45 60 40 M4
DR011A0115 130 135 95 6*12 60 80.5 60 M4
DR017AP746 130 135 100 6*12 65 80.5 60 M4
Tightening torque: F Nm
PE bolt
Tightening torque: 6.1–8.2 kg-cm / [5.3–7.1 lb-in.] / [0.6–0.8 Nm]
Marking
Table 7-23
Figure 7-7
