Delta VFD150CP43B-21 User Manual

Chapter 1 IntroductionCP2000
1-10
Frame C
VFD185CP23A-21; VFD220CP23A-21; VFD300CP23A-21; VFD220CP43A-21; VFD300CP43B-21;
VFD370CP43B-21; VFD220CP4EA-21; VFD300CP4EB-21; VFD370CP4EB-21; VFD185CP63A-21;
VFD220CP63A-21; VFD300CP63A-21; VFD370CP63A-21
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail A
See Detail B

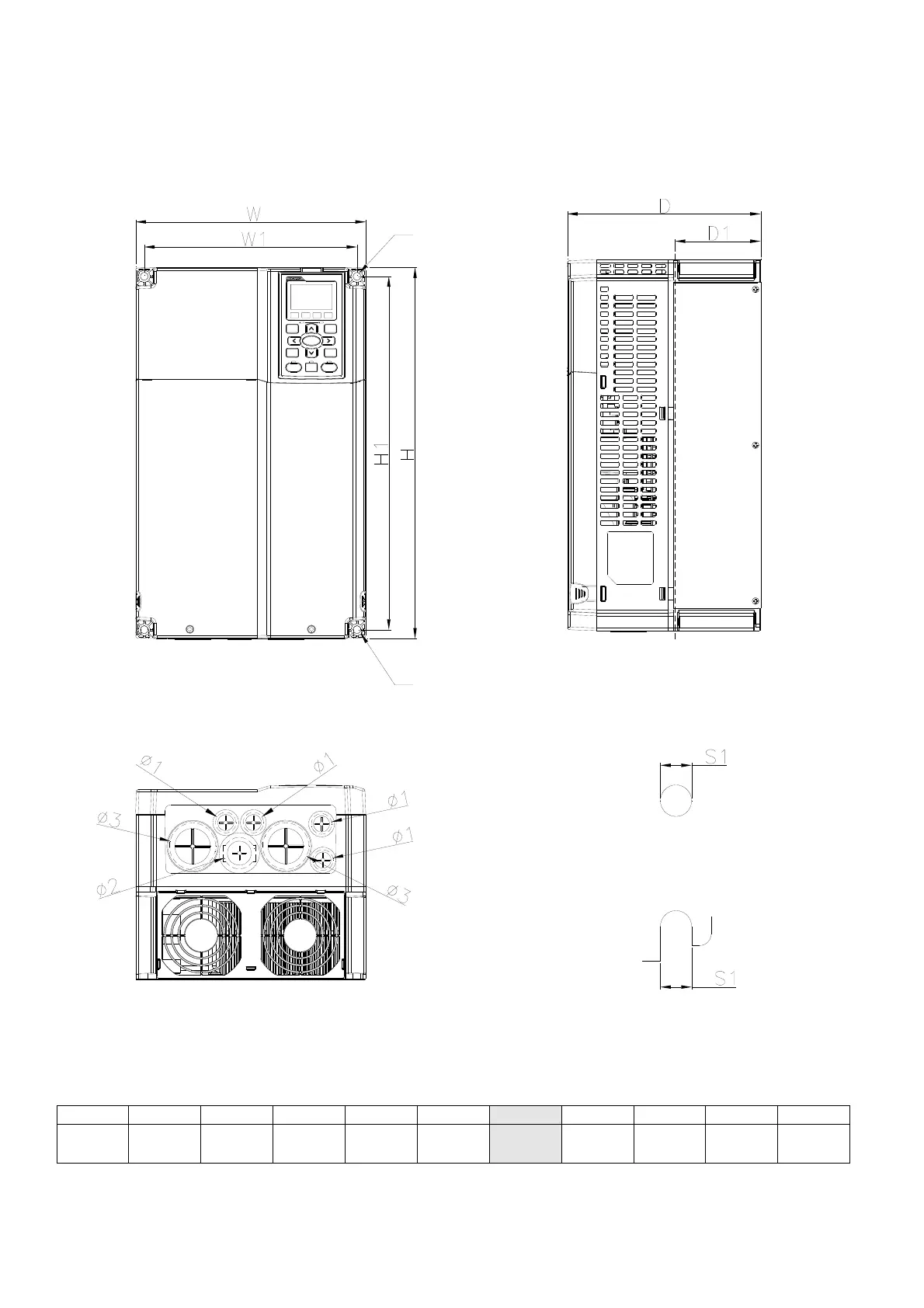

Figure 1-16
Unit: mm [inch]
Frame W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
C
250.0
[9.84]
400.0
[15.75]
210.0
[8.27]
231.0
[9.09]
381.0
[15.00]
92.9
[3.66]
8.5
[0.33]
22.2
[0.87]
34.0
[1.34]
50.0
[1.97]
D1*: Flange mounting
See Detail
A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)
