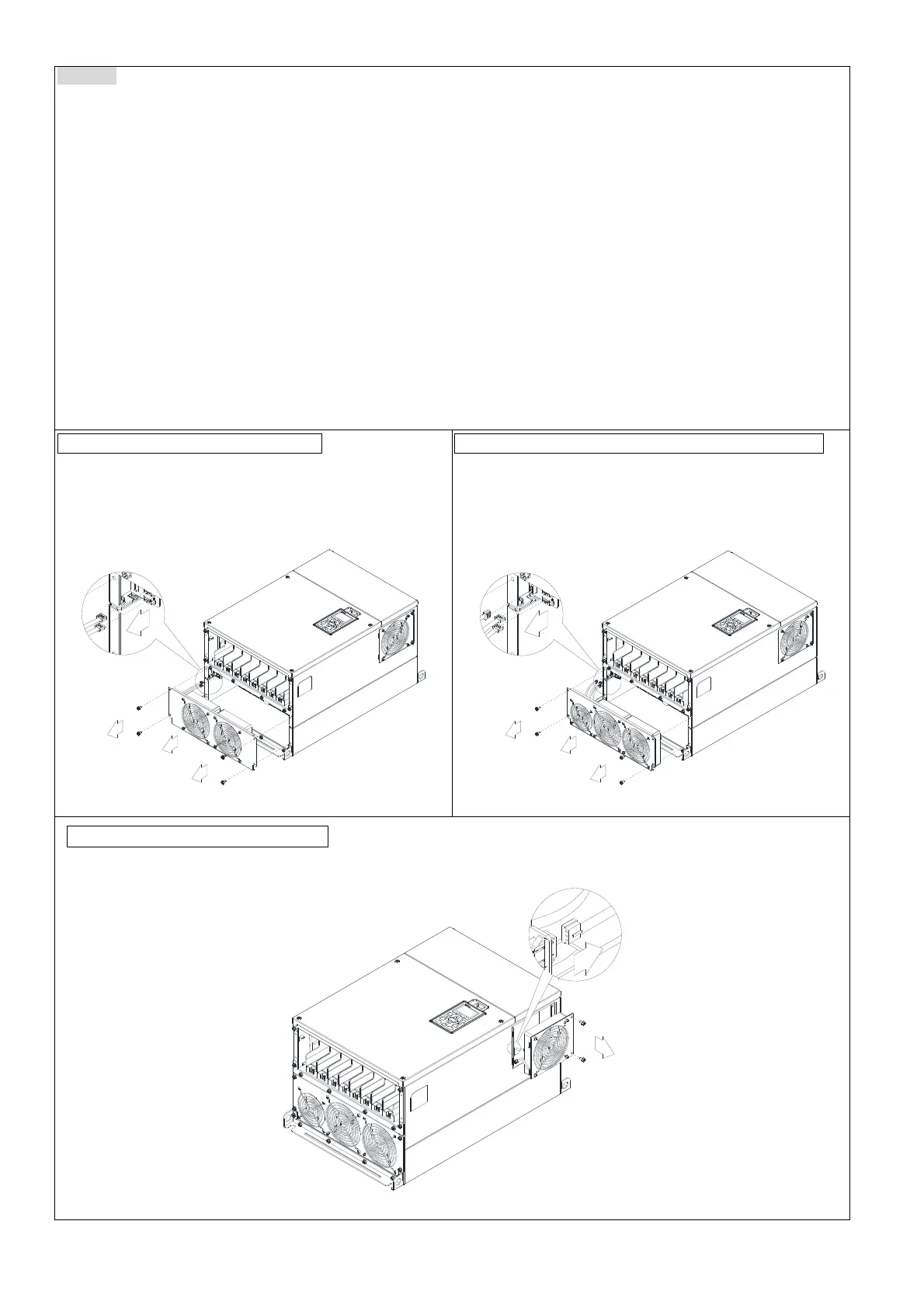

Chapter 7 Optional AccessoriesCP2000
7-100
Frame E
Applicable models for MKC-EFKM1:
VFD550CP23A-00; VFD550CP23A-21; VFD750CP23-00; VFD750CP23A-21
Applicable models for MKC-EFKM2:
VFD900CP23A-00; VFD900CP23A-21; VFD1100CP43A-00; VFD1100CP43A-21; VFD1320CP43B-00;
VFD1320CP43B-21
Applicable models for MKC-EFKM3:
VFD750CP63A-00; VFD750CP63A-21; VFD900CP63A-00; VFD900CP63A-21; VFD1100CP63A-00;
VFD1100CP63A-21; VFD1320CP63A-00; VFD1320CP63A-21
Applicable models for MKC-EFKB:
VFD550CP23A-00; VFD550CP23A-21; VFD750CP23A-00; VFD750CP23A-21; VFD900CP23A-00;
VFD900CP23A-21; VFD1100CP43A-00; VFD1100CP43A-21; VFD1320CP43B-00; VFD1320CP43B-21;
VFD900CP63A-00; VFD900CP63A-21; VFD1100CP63A-00; VFD1100CP63A-21; VFD1320CP63A-00;
VFD1320CP63A-21
ModelMKC-EFKM1Heat Sink Fan
1. Loosen screw 1–4 (figure 1) and disconnect fan
power and pull out the fan. (As shown in the
enlarged picture 1) Screw1–4 Torque: 24–26 kg-cm
/ [20.8–22.6 lb-in.] / [2.4–2.5 Nm]
1
2
3
4
Figure 1
ModelMKC-EFKM2 / MKC-EFKM3Heat Sink Fan
1. Loosen screw 1–4 (figure 2) and disconnect fan
power and pull out the fan. (As shown in the
enlarged picture 2) Screw1–4 Torque: 24–26 kg-cm
/ [20.8–22.6 lb-in.] / [2.4–2.5 Nm]
1
2
3
4
Figure 2
ModelMKC-EFKB: Heat Sink Fan
1. Loosen screw 1–2 and disconnect fan power and pull out the fan. (As shown in the enlarged picture 3)
Screw1–2 Torque: 24–26 kg-cm / [20.8–22.6 lb-in] / [2.4–2.5 Nm]
1
2
Figure 3
