Chapter 7 Optional AccessoriesCP2000
7-104
Frame H
Fan model『MKCHS-HFKM』Heat Sink Fan
Applicable model
Following models use three sets of MKCHS-HFKM:
VFD5000CP43A-00; VFD5000CP43C-00; VFD5000CP43C-21; VFD5600CP43A-00; VFD5600CP43C-21;
VFD6300CP43A-00; VFD6300CP43C-21

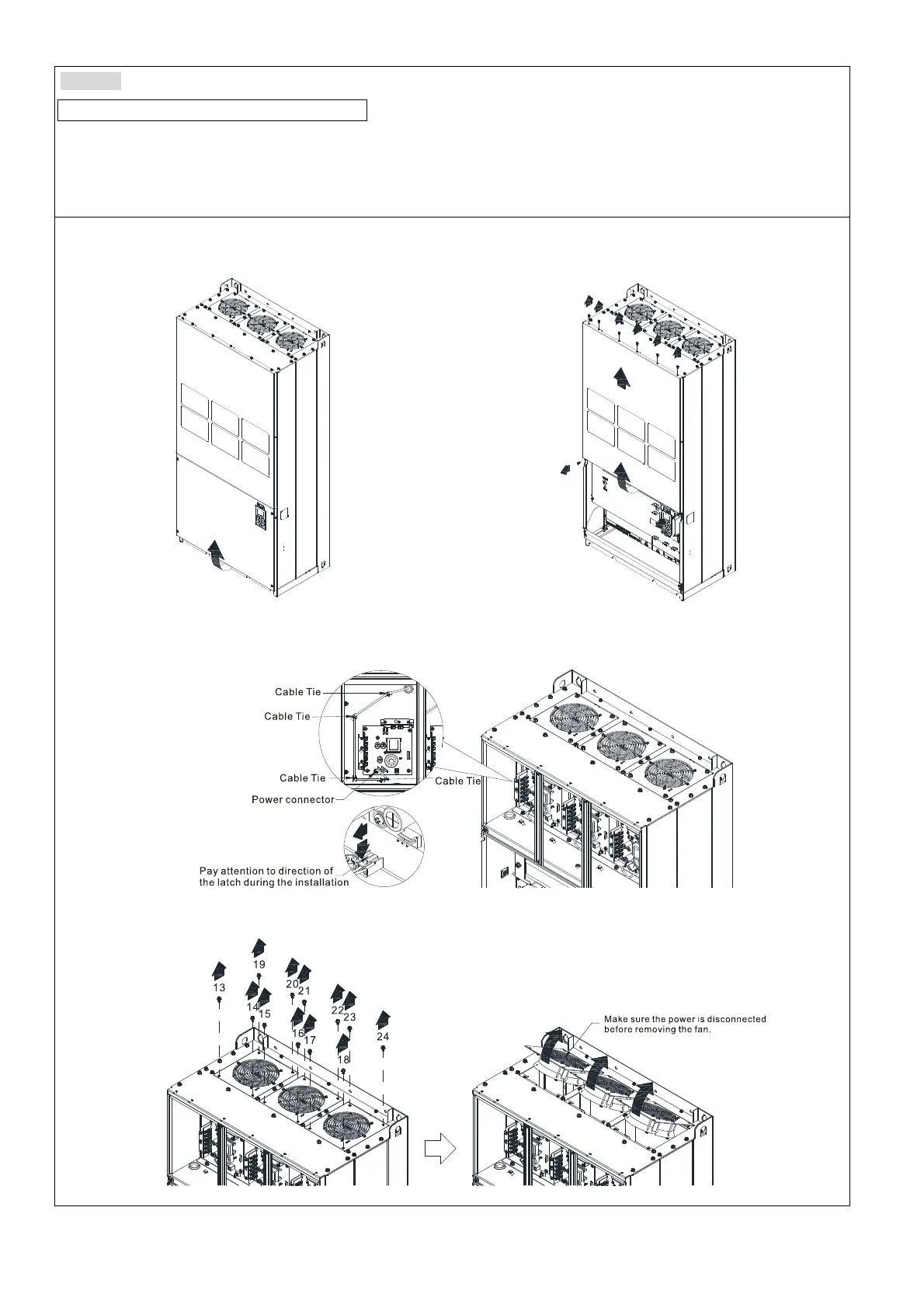

1. Loosen the screw 1–4 and remove the top cover
(figure 1) Screw torque: 14–16 kg-cm / [12.2–13.9
Ib-in.] / [1.4–1.6 Nm]
3
4
2
1
Figure 1
2. Loosen the screw 5–12 and remove the top cover
(figure 2). Screw torque: 24–26kg-cm / [20.8–22.6
Ib-in.] / [2.4–2.5 Nm]
12
6
8
9
5
7
10
11
Figure 2
3. Press the latch to disconnect fan power, and cut the cable tie
Figure 3
4. Loosen the screw 13–24 and remove the fan.
Figure 4
To Next Page
