Delta VFD150CP43B-21 User Manual

Chapter 7 Optional AccessoriesCP2000
7-109
『MKC-AFM』 Installation

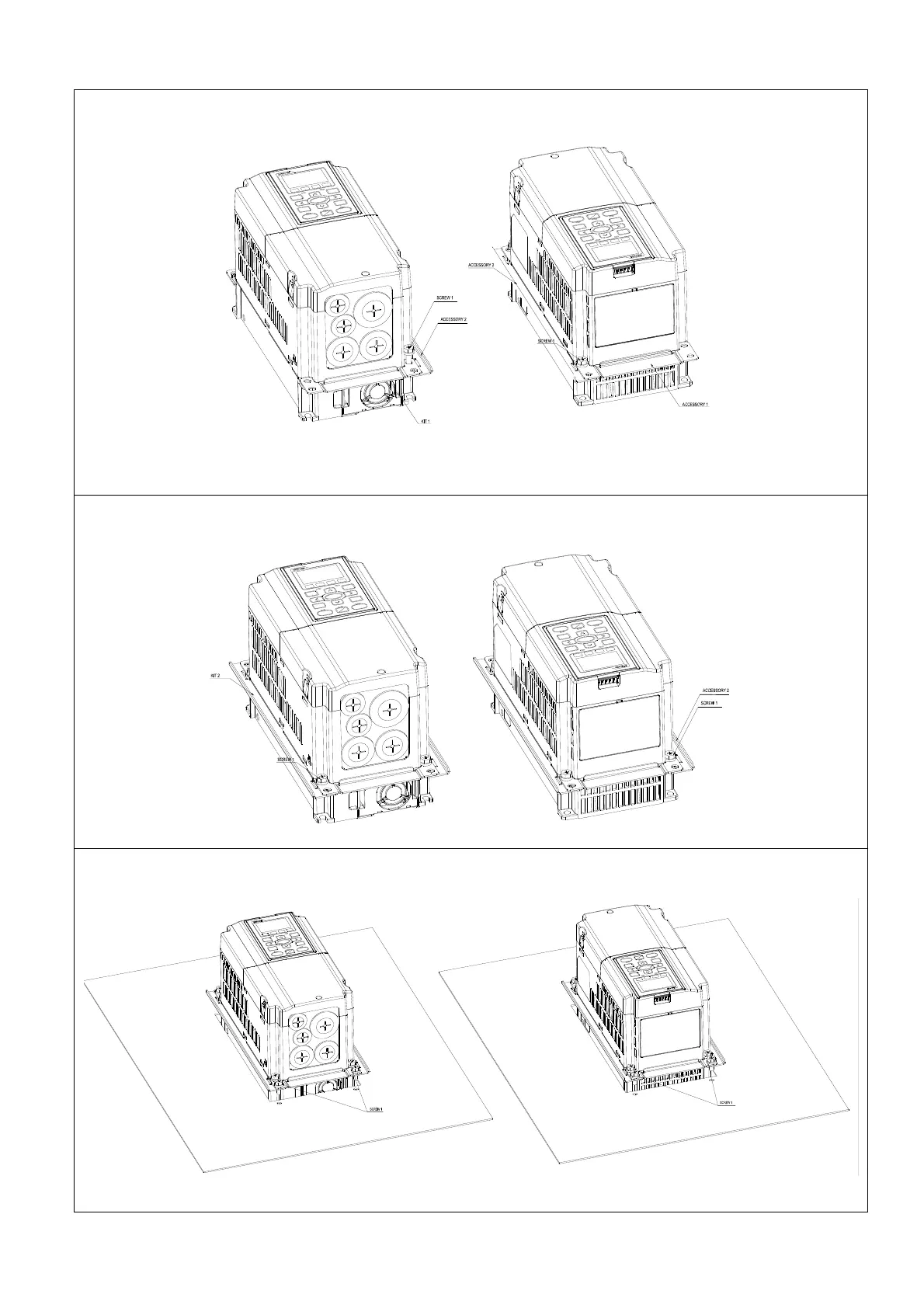

1. Install accessory 2 & 3 by fastening 2 of the screw 2 (M6). Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] / [2.5–2.9
Nm] (figure 1)
Figure 1
2. Install accessory 2 & 3 by fastening 2 of the screw 2 (M6). Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] /
[2.5–2.9 Nm] (figure 2)
Figure 2
3. Plate installation, place 4 of the screw *4 (M6) through accessory 2&3 and the plate, then fasten the screws.
Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] / [2.5–2.9 Nm] (figure 3)
Figure 3
