Chapter 1 IntroductionCP2000
1-15

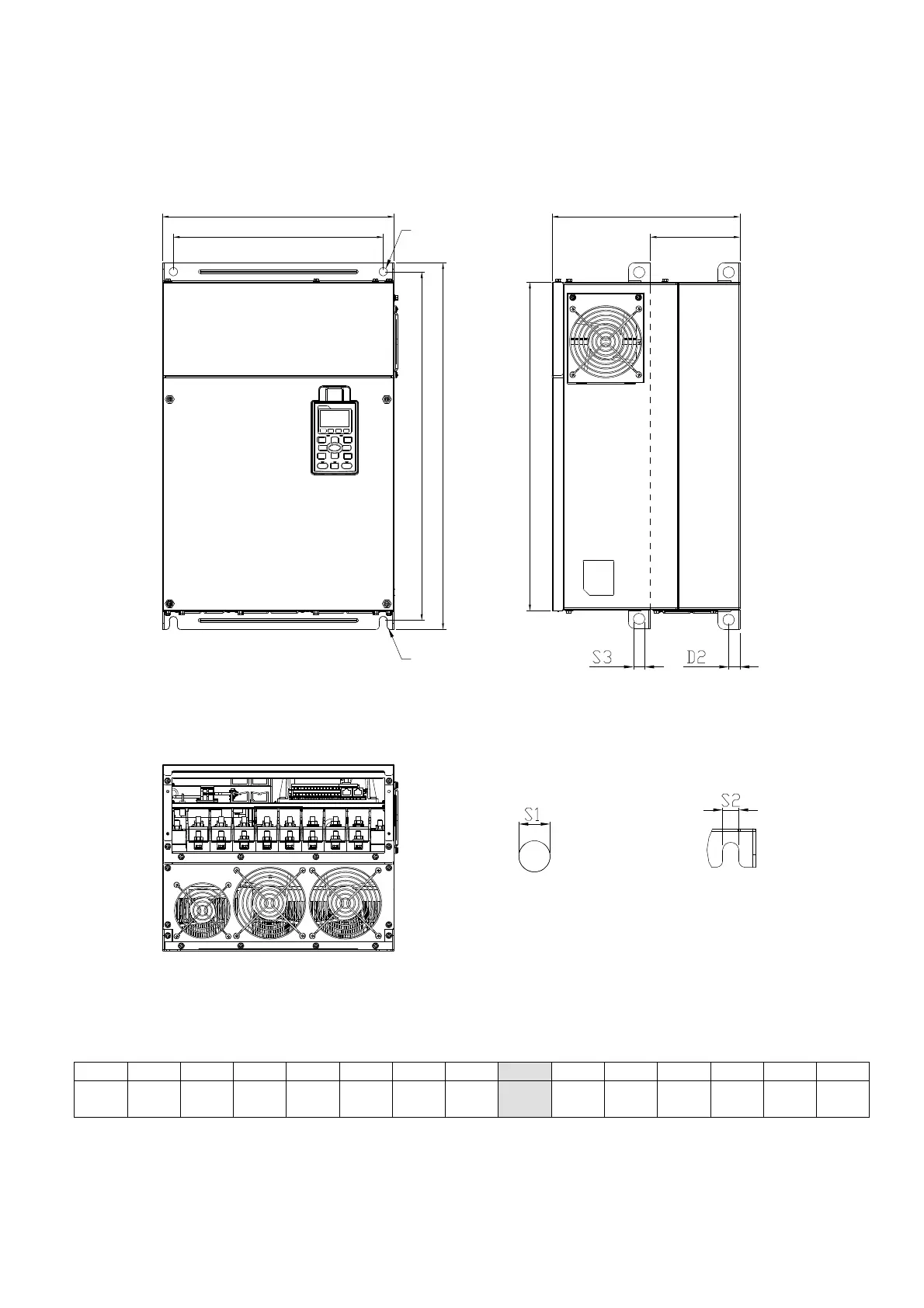

Frame E
E1: VFD550CP23A-00; VFD750CP23A-00; VFD900CP23A-00; VFD1100CP43A-00; VFD1320CP43B-00;
VFD750CP63A-00; VFD900CP63A-00; VFD1100CP63A-00; VFD1320CP63A-00
W1
W
H2
H1
H3
D1
D
See Detail A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
Figure 1-21
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1/S2 S3 Φ1 Φ2 Φ3
E1
370.0
[14.57]
-
300.0
[11.81]
335.0
[13.19]
589.0
[23.19]
560.0
[22.05]
528.0
[20.80]
143.0
[5.63]
18.0
[0.71]
13.0
[0.51]
18.0
[0.71]
- - -
D1*: Flange mounting
See Detail
A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
