Chapter
8
Option
Cards
CP20
00
8-25

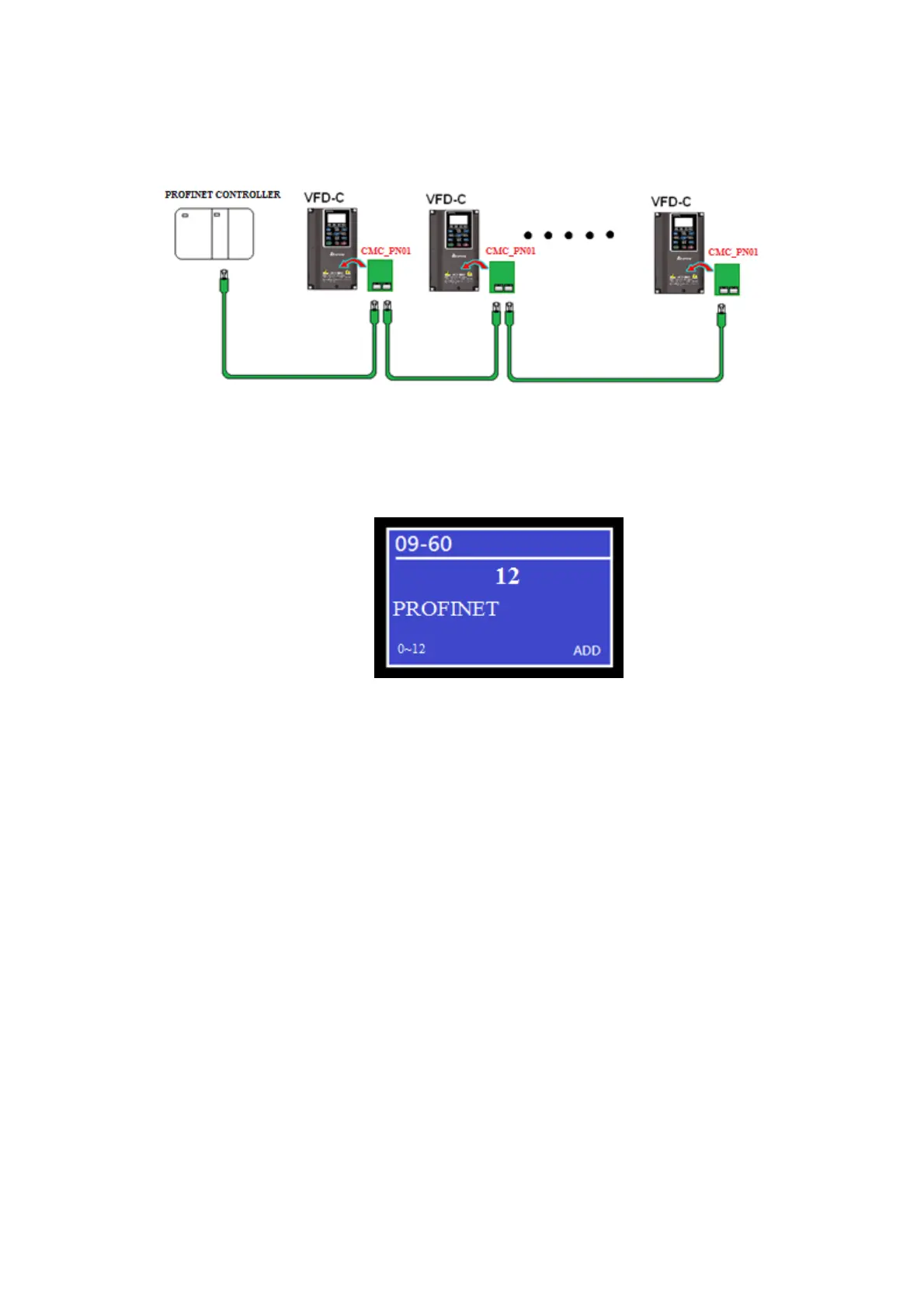

8-10-7 Network Connection
Wiring of CMC-PN01 is as following:
When the hardware is installed and power on, the current set va
lue of Pr
.09-60 will be 12, and
shows “PROFINET” on the display
.If the above information does n
ot show on the display
, please
check the version of VFD-CP2000 and the connection of the card.
261
