Chapter 10 Digital KeypadCP2000
10-17

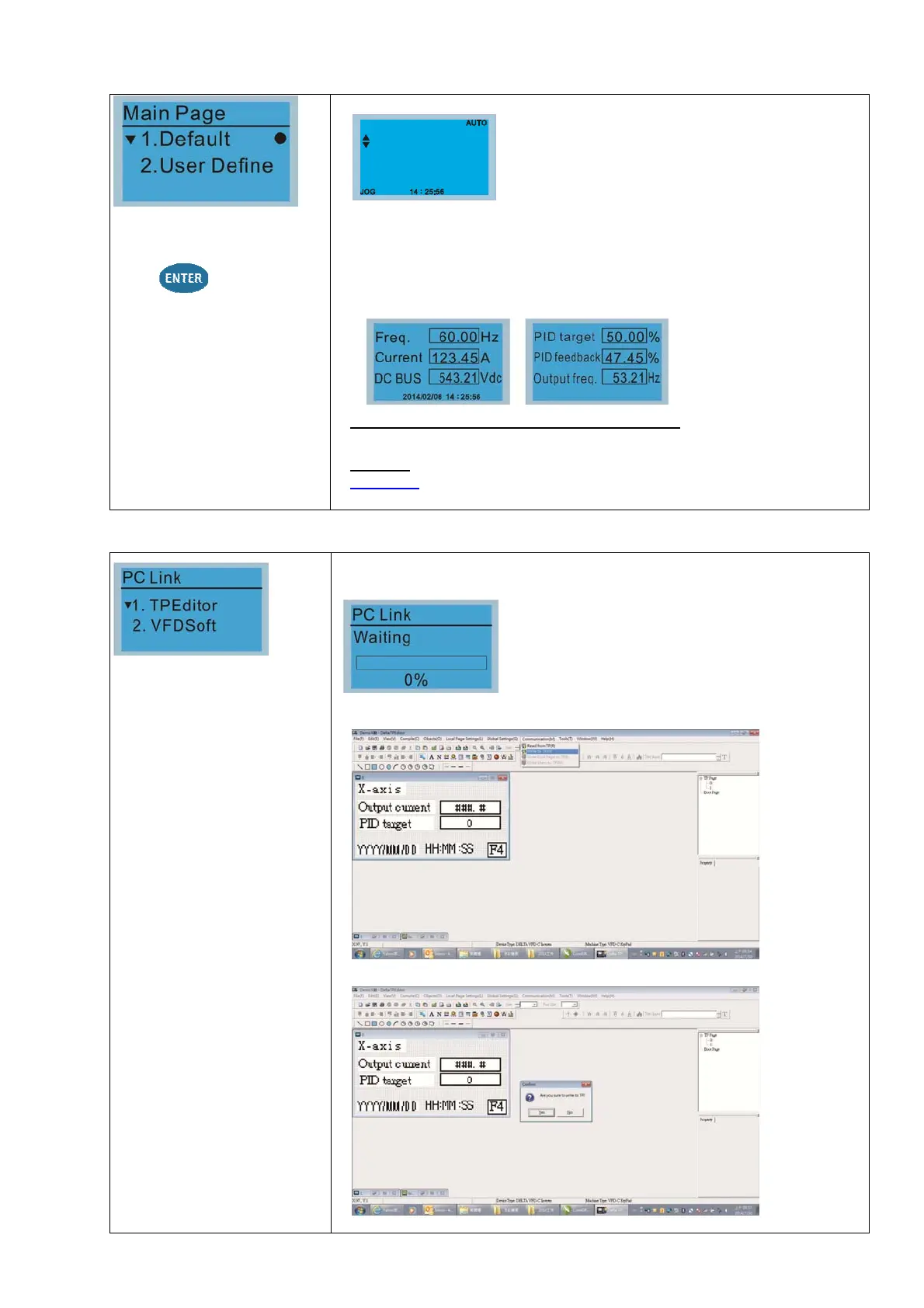

14. Main page
Default picture and editable
picture are available upon
selection.
Press
to select.
1. Default page
F
H
u
60.00Hz
540.0Vdc
0.00Hz
F 60.00Hz >>> H >>> A >>> U (circulate)
2. User Defined: optional accessory is require (TPEditor & USB / RS-485
Communication Interface-IFD6530)
Install an editing accessory would allow users to design their own main
page. If editor accessory is not installed, “user defined” option will display
a blank page.
USB/RS-485 Communication Interface-IFD6530
Please refer to Chapter 07 Optional Accessories for more detail.
TPEditor
Download TPEditor software at Delta website, select TPEditor version 1.60
or above. Refer to instruction for TPEditor in Chapter 10-3.
15. PC Link
1. TPEditor: This function allows users to connect the keypad to a computer
then to download and edit user defined pages.
Click ENTER to go to <Waiting to connect to PC>
In TPEditor, choose <Communication>, then choose “Write to HMI”
Choose <YES> in the <Confirm to Write> dialogue box.
