Chapter 10 Digital KeypadCP2000
10-25

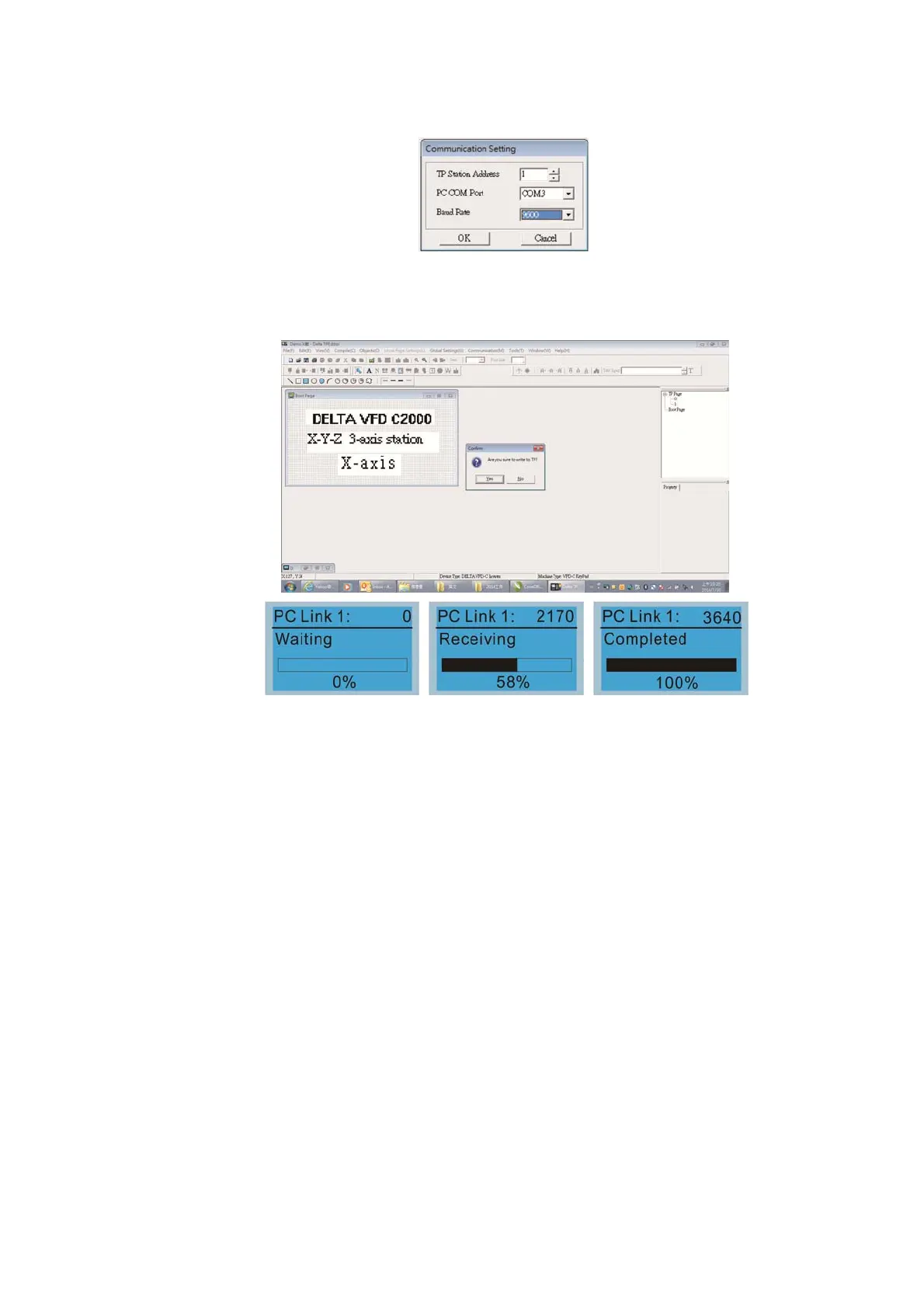

9. Downloading setting: Go to Tool > Communication. Set up communication port and speed of IFD6530.
10. Only three speed selections are available: 9600 bps, 19200 bps and 38400 bps.
11. When a dialogue box displayed on the screen asking to confirm writing or not, press buttons on the keypad
to go to MENU, select PC LINK and then press ENTER and wait for few seconds. Then select YES on the
screen to start downloading.
