Chapter 12 Description of Parameter SettingsCP2000
12.1-00-7
Speed Control Mode
Default: 0
Settings 0: IMVF (IM V/F control)
2: IM / PM SVC (IM / PM space vector control)
Determines the control method of the AC motor drive:
0: IM V/F control: you can set the proportion of V/F as required and control multiple motors
simultaneously.
2: IM / PM space vector control: get the optimal control by auto-tuning the motor parameters.

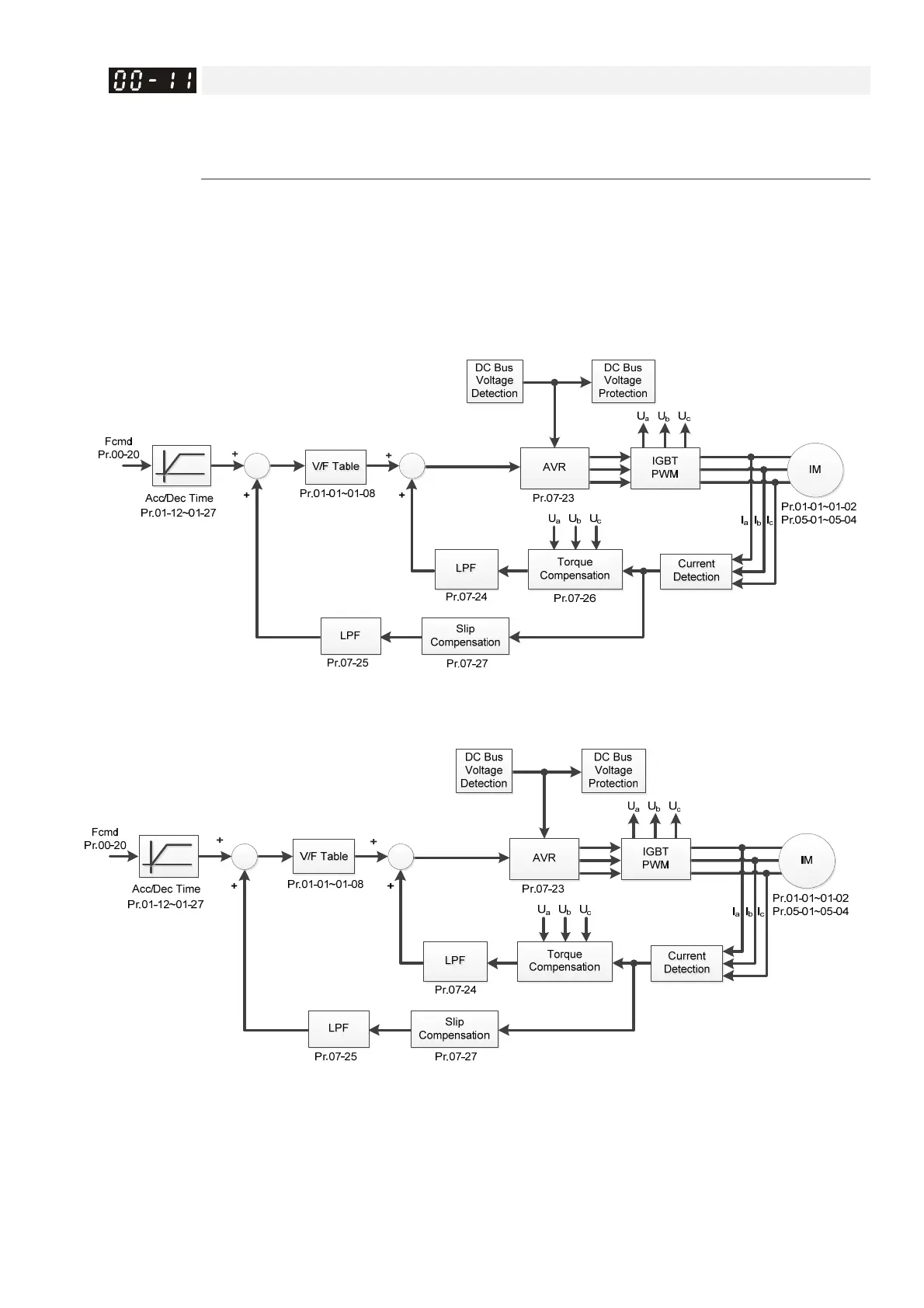

When Pr.00-10=0, and you set Pr.00-11 to 0, the V/F control diagram is as follows:
When Pr.00-10=0, and you set Pr.00-11 to 2, the space vector control diagram is as follows.
Induction Motor Space Vector Control (IMSVC)
