Chapter 12 Description of Parameter SettingsCP2000
12.1-02-4
Settings Functions Descriptions
5 Reset Use this terminal to reset the drive after clearing a drive fault.
6

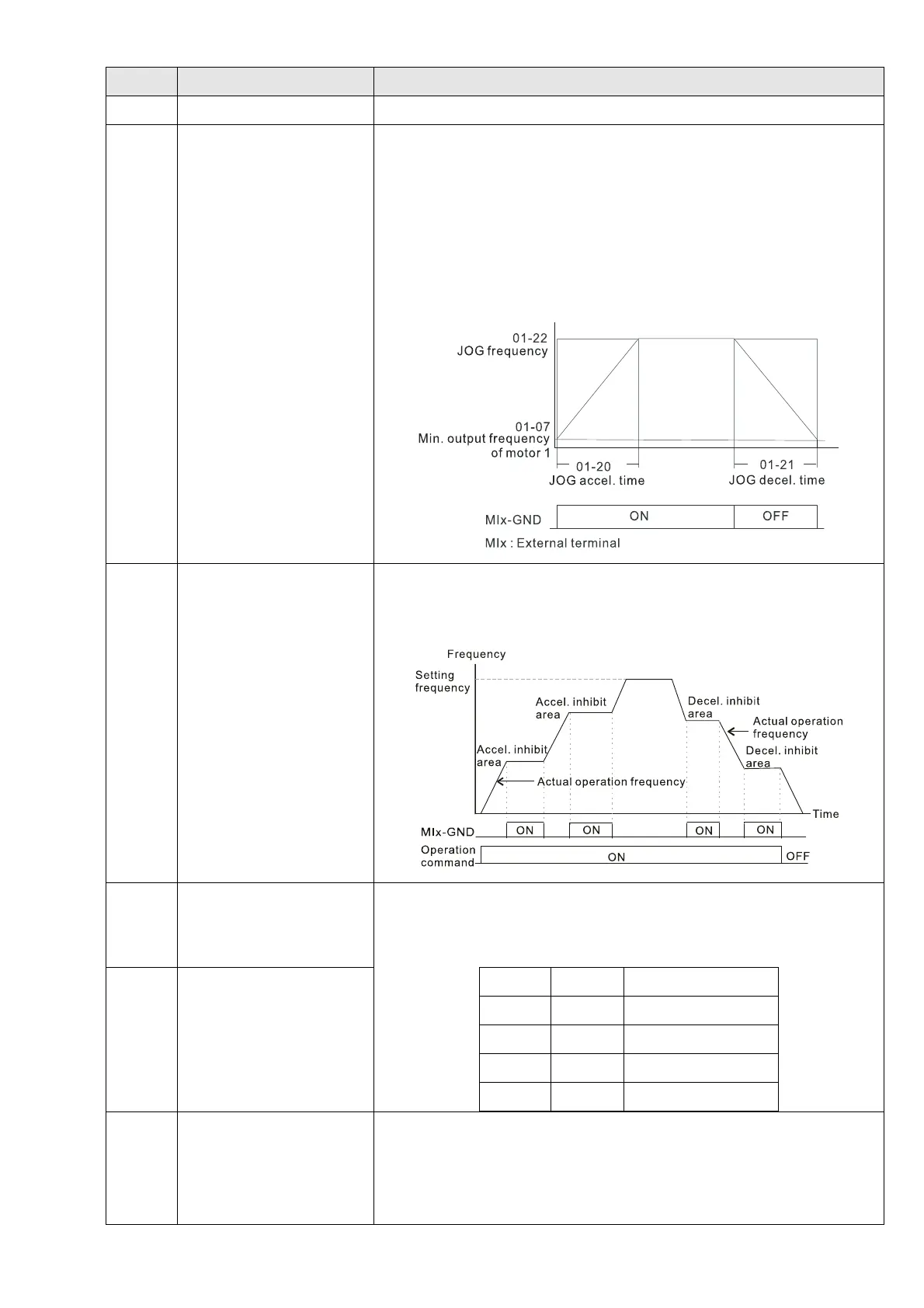

JOG Command
This function is valid when the source of the operation command is
the external terminals.
The JOG operation executes when the drive stops completely.
While running, you can still change the operation direction, and the
STOP key on the keypad is valid. Once the external terminal
receives the OFF command, the motor stops in the JOG
deceleration time. Refer to Pr.01-20–01-22 for details.
7
Acceleration /
deceleration speed
inhibit
When you enable this function, the drive stops acceleration and
deceleration immediately. After you disable this function, the AC
motor drive starts to accelerate or decelerate from the inhibit point.
8
The 1
st
, 2
nd
acceleration
or deceleration time
selection
You can select the acceleration and deceleration time of the drive
with this function, or from the digital status of the terminals; there
are four acceleration and deceleration selection.
MIx=9 MIx=8 Accel./Decel.
OFF OFF 1
st
Accel./Decel.
OFF ON 2
nd
Accel./Decel.
ON OFF 3
rd
Accel./Decel.
ON ON 4
th
Accel./Decel.
9
The 3
rd
, 4
th
acceleration
or deceleration time
selection
10
EF Input
(EF: External fault)
For external fault input. The drive decelerates according to the
Pr.07-20 setting, and the keypad shows EF. (It shows the fault
record when an external fault occurs). The drive keeps running until
the fault is cleared (terminal status restored) after RESET.
