Example 02: PID positive feedback
Pr.08-10 must < Pr.08-11
30 kg is the reference
Set the parameter:
Pr.03-00=5 (AVI1 is PID feedback)
Pr.08-00=4 (PID
positive feedback: AVI1
simulation input function select)
Pr.08-10=110% (Sleep reference:
33 kg = 110% * 30 kg)
Pr.08-11=120% (Wake-up reference:
36 kg = 120% * 30 kg)
Case 01: If feedback <33kg, frequency decrease.
Case 02: If feedback >36kg, frequency increase.

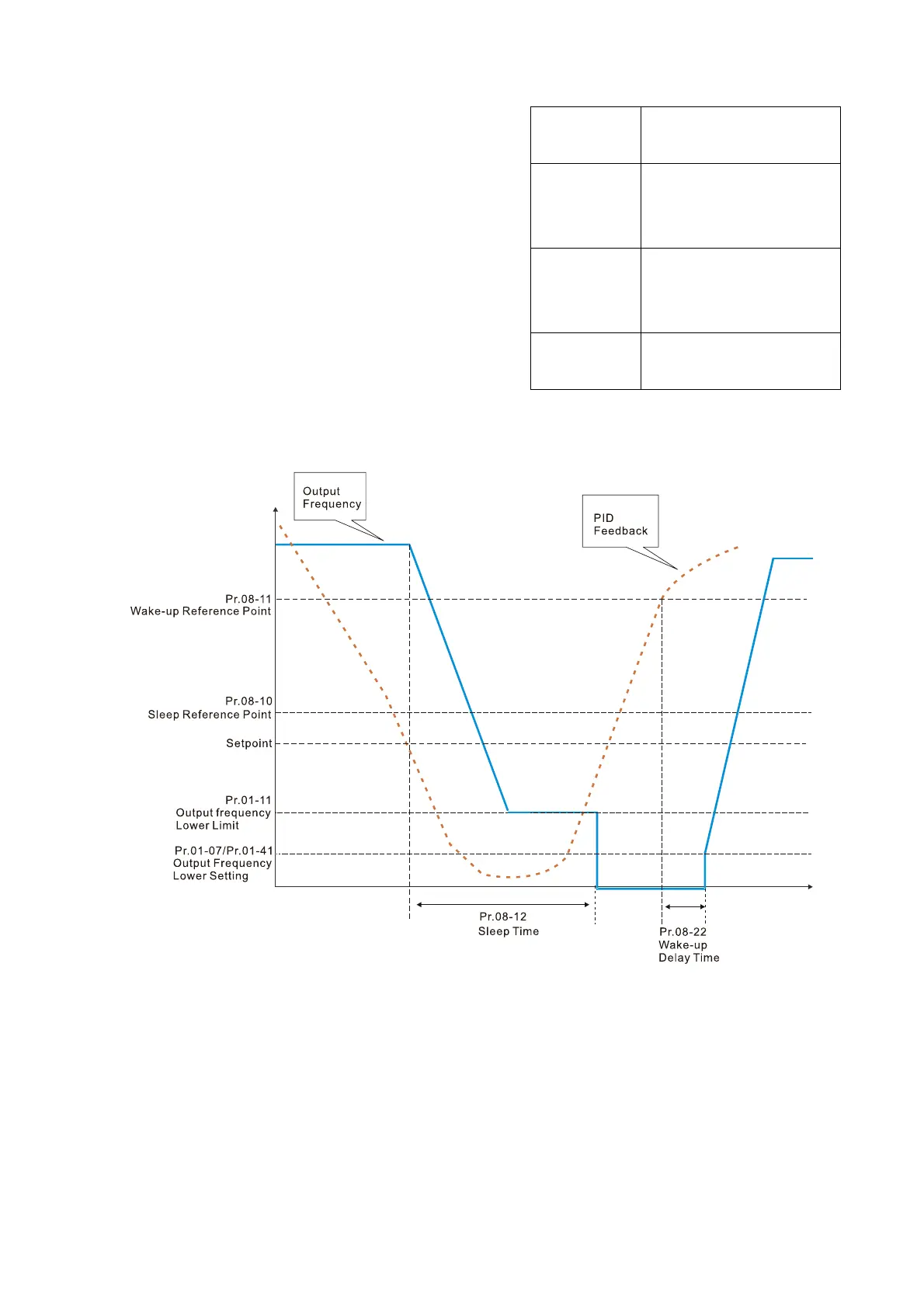

Area
PID
Physical quantity
Sleep area
> 36 kg, the drive goes
into sleep, the motor
goes into sleep
Excessive
area
between 33 kg and 36
kg, the drive remains in
the current state
Wake-up
area
< 33 kg, the drive
wakes-up
To Next Page
