Delta VFD150CP43B-21 User Manual

Chapter 3 UnpackingCP2000
3-12
Frame H

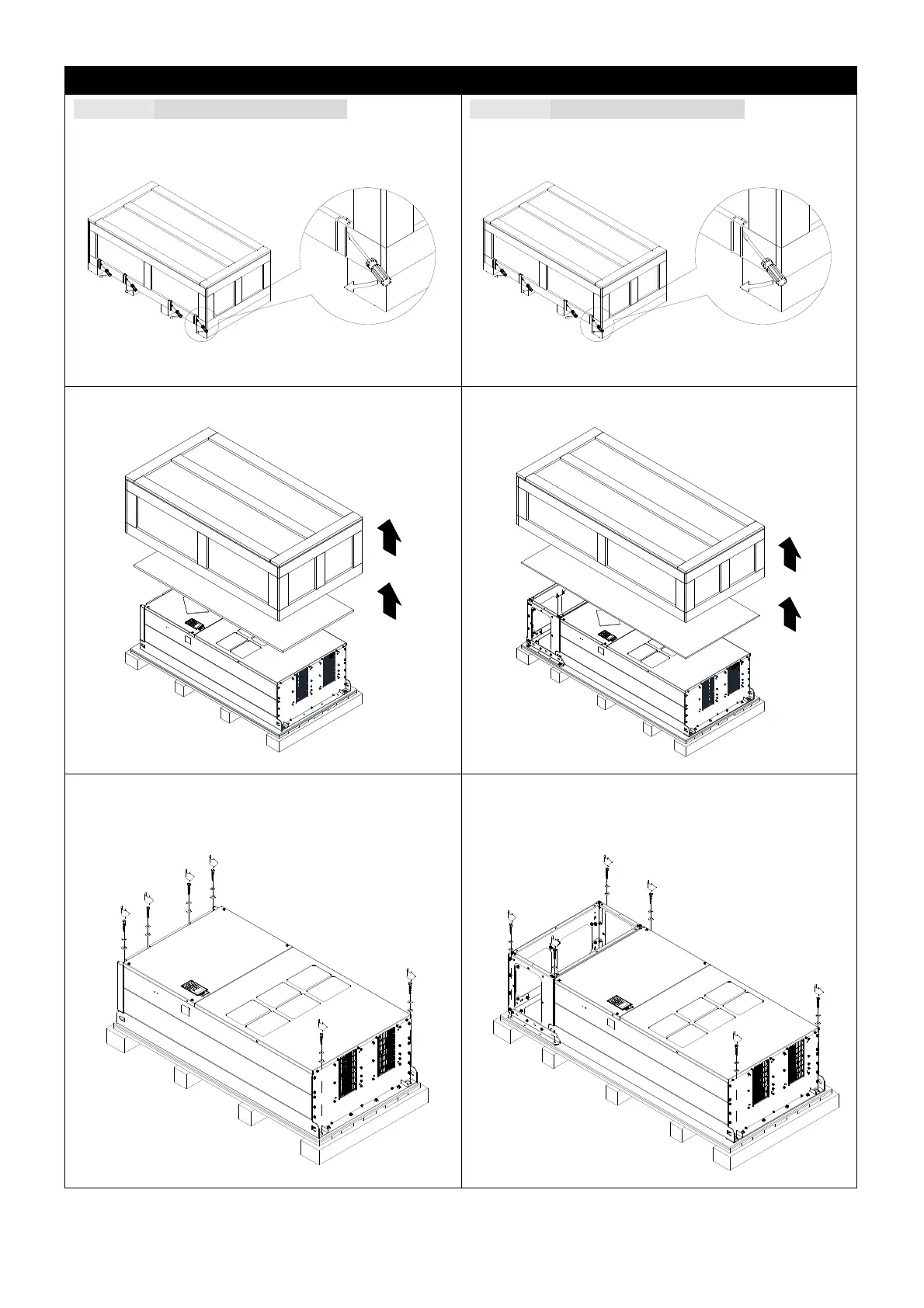

Unpacking 1 (VFDXXXXCPXXA-00) Unpacking 2 (VFDXXXXCPXXC-00)
Remove the eight buckles fixed on the crate with
a flat-head screwdriver, see the figure below.
Remove the eight buckles fixed on the crate with
a flat-head screwdriver, see the figure below.
Remove the top cover, take out the EPEs and the
manual.
Remove the top cover, take out the EPEs and the
manual.
Loosen the six screws fasten the drive on the
pallet, and then remove six metal washers and six
plastic washers. See the figure below.
Loosen the six screws fasten the drive on the
pallet, and then remove six metal washers and six
plastic washers. See the figure below.
Figure 3-45
Figure 3-40
Figure 3-41
Figure 3-44
Figure 3-39
Figure 3-43
