6. When Pr.00-04 is set as 28, the displayed value is the value of PLC register D1043 (see figure
below):

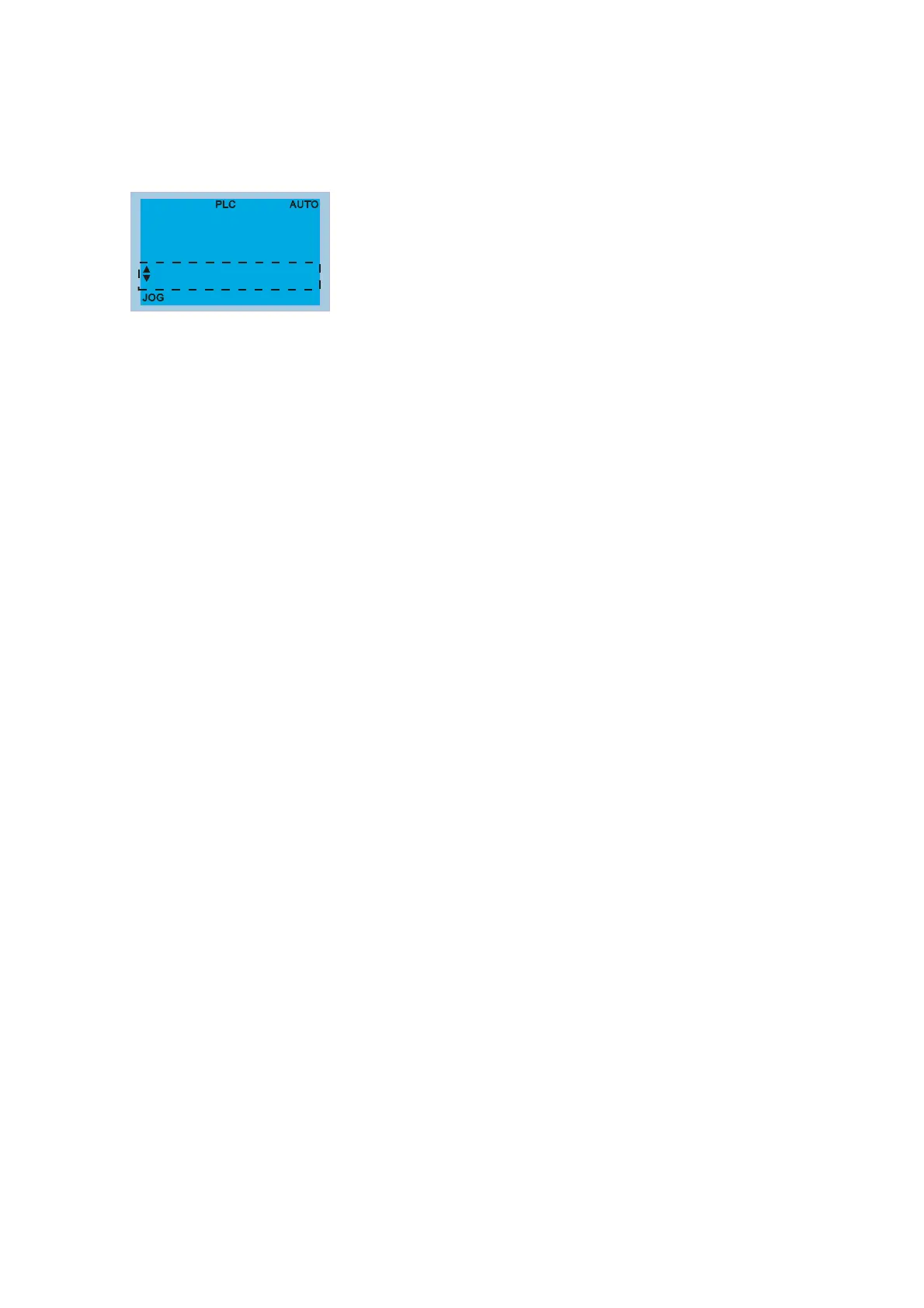

Keypad KPC-CC01
Can display 0–65535
H 0.00Hz
A 0.00Hz
C _ _ _ _ _
7. In the PLC Run and PLC Stop mode, the content 9 and 10 of Pr.00-02 cannot be set nor be
reset to the default value.
8. The PLC can be reset to the default value when Pr.00-02 is set as 6.
9. The corresponding MI function will be disabled when the PLC writes to input contact X.
10. When the PLC controls converter operation, control commands will be entirely controlled by the
PLC and will not be affected by the setting of parameter 00-21.
11. When the PLC controls converter frequency commands (FREQ commands), frequency
commands will be entirely controlled by the PLC, and will not be affected by the setting of
Pr.00-20 or the Hand ON/OFF configuration.
12. When the PLC controls the drive’s operation, if the keypad Stop setting is valid, this will trigger
an FStP error and cause stoppage.
