Chapter 16 PLC Function Applications│CP2000
16-111

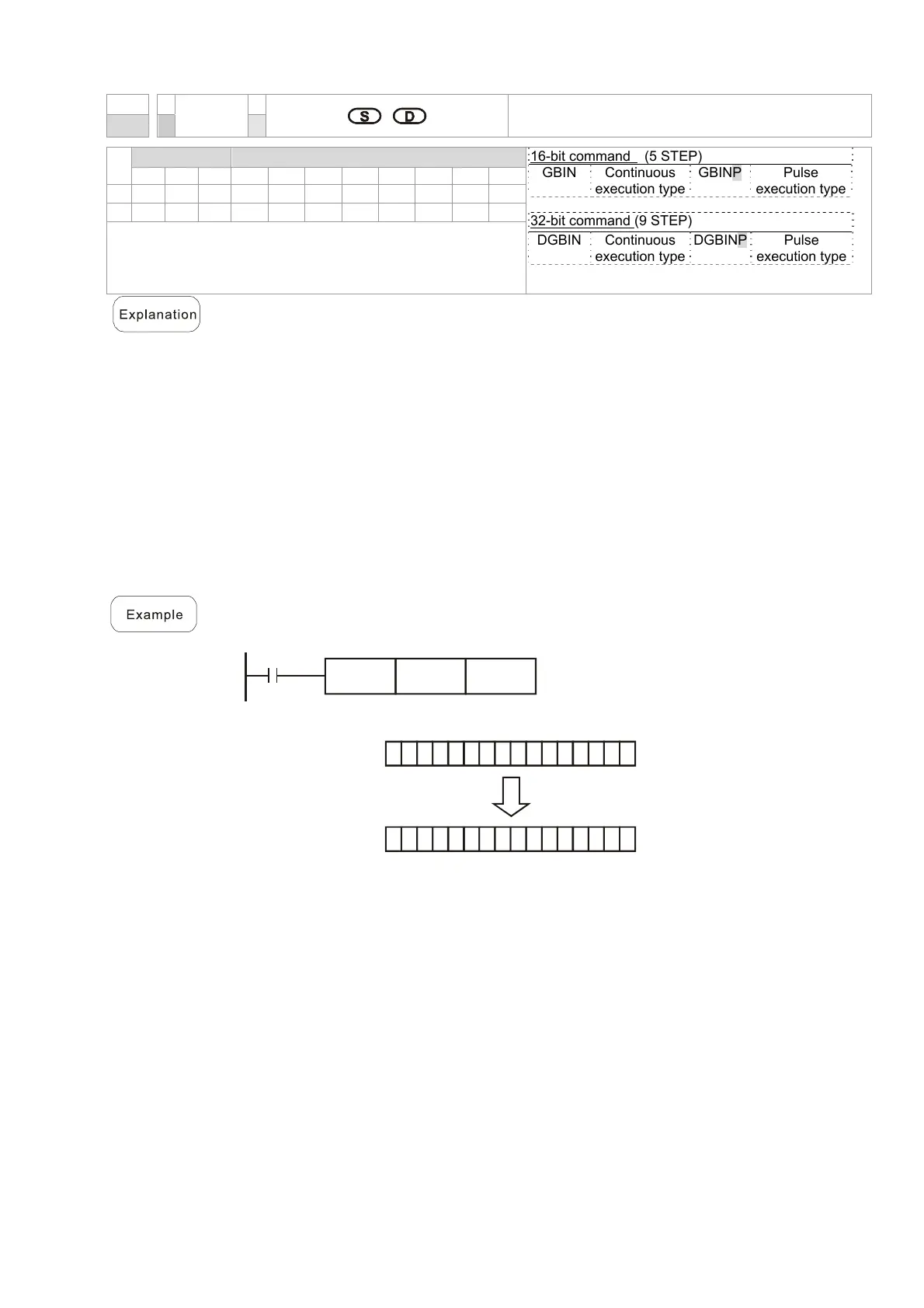

API
GBIN
GRAY code →BIN transformation
171
D P
Bit device Word device
16-bit command (5 STEP)
GBIN Continuous
execution type
GBINP Pulse
execution type
32-bit command (9 STEP)
DGBIN Continuous
execution type
DGBINP Pulse
execution type
 Flag signal: none
X Y M K H KnX KnY KnM T C D
S
＊ ＊ ＊ ＊ ＊ ＊ ＊ ＊
D
＊ ＊ ＊ ＊ ＊
Notes on operand usage:
Please refer to the function specifications table for each device in
series for the scope of device usage
 S: source device used to store GRAY code. D: device used to store BIN value after
transformation.
 The GRAY code corresponding to the value of the device designated by S is
transformed into a BIN value, which is stored in the device designated by D.
 This command will transform the value of the absolute position encoder connected
with the PLC's input and (this encoder usually has an output value in the form of
GRAY code) into a BIN value, which is stored in the designated register.
 The valid range of S is as shown below; if this range is exceeded, it will be
considered an error, and the command will not execute.
 16-bit command: 0–32,767
 32-bit command: 0–2,147,483,647
 When X20=On, the GRAY code of the absolute position encoder connected with
input points X0 to X17 will be transformed into BIN value and stored in D10.
X20
GBIN K4X0 D10
0001 10111000
b15
b0
H1971=K6513 000 0 00111111
X17 X0
GRAY CODE 6513
K4X0
01 0 1
0010
