Chapter 8 Option CardsC2000 Plus
8-41
8-14 CMC-DN01 -- Communication card, DeviceNet
8-14-1 Functions
1. Based on the high-speed communication interface of Delta HSSP protocol, which is able to conduct
immediate control to AC motor drive.
2. Supports Group 2 only slave device connection and polling I/O data exchange.
3. For I/O mapping, supports Max. 32 words of input and 32 words of output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125 Kbps, 250 Kbps, 500 Kbps and extendable serial
transmission speed mode.
6. Node address and serial transmission speed can be set up on AC motor drive.
7. Power supplied from AC motor drive.

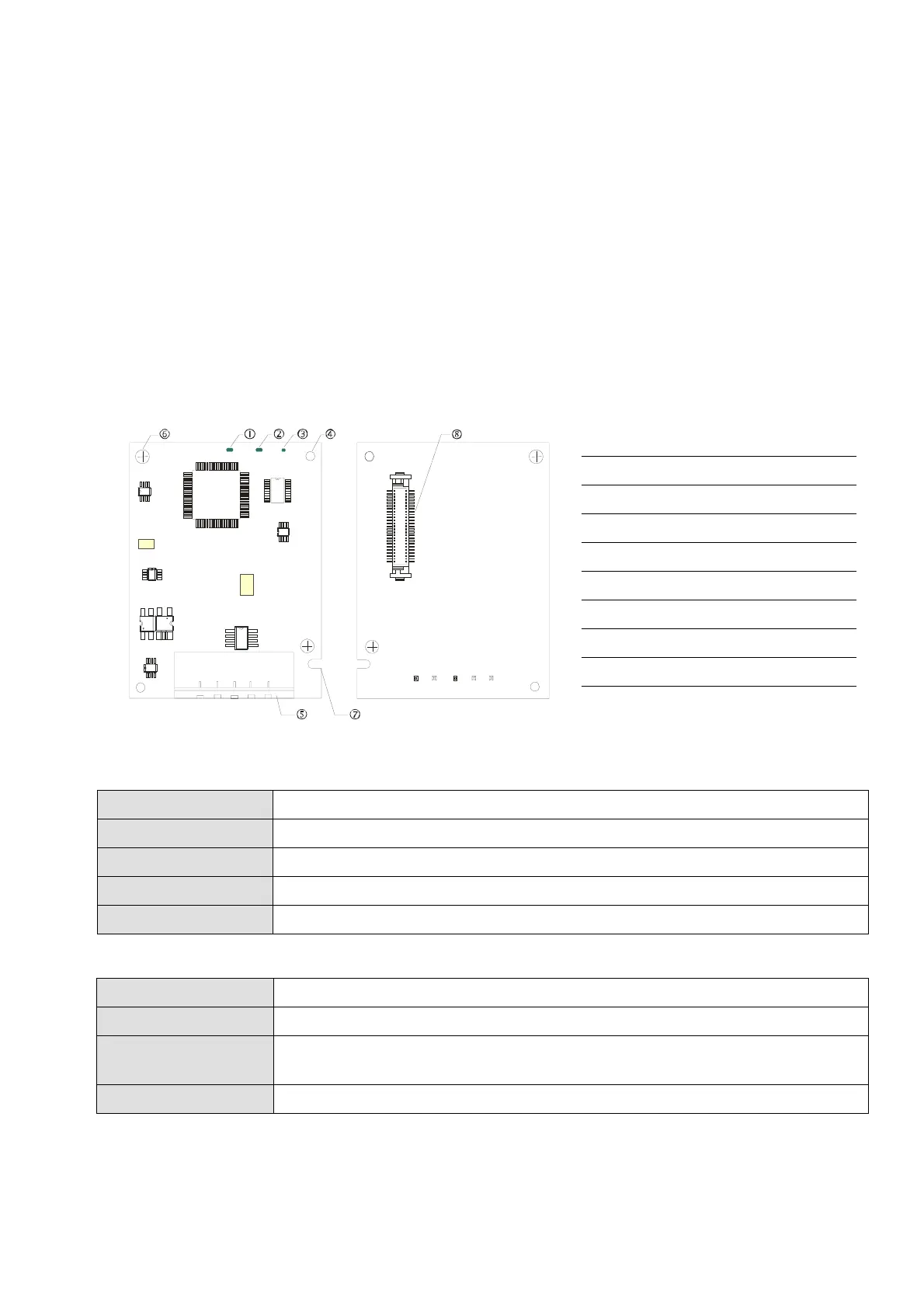

8-14-2 Product Profile
1. NS indicator
2. MS indicator
3. POWER indicator
4. Positioning hole
5. DeviceNet connection port
6. Screw fixing hole
7. Fool-proof groove
8. AC motor drive connection port
8-14-3 Specifications
DeviceNet Connector
Interface 5-PIN open removable connector of 5.08 mm PIN interval
Transmission method CAN
Transmission cable Shielded twisted pair cable (with 2 power cables)
Transmission speed 125 Kbps, 250 Kbps, 500 Kbps and extendable serial transmission speed mode
Network protocol DeviceNet protocol
AC Motor Drive Connection Port
Interface 50 PIN communication terminal
Transmission method SPI communication
Terminal function
1. Communicating with the AC motor drive
2. Transmitting power supply from the AC motor drive
Communication
Delta HSSP protocol
