Chapter 12 Descriptions of Parameter SettingsMS300
319

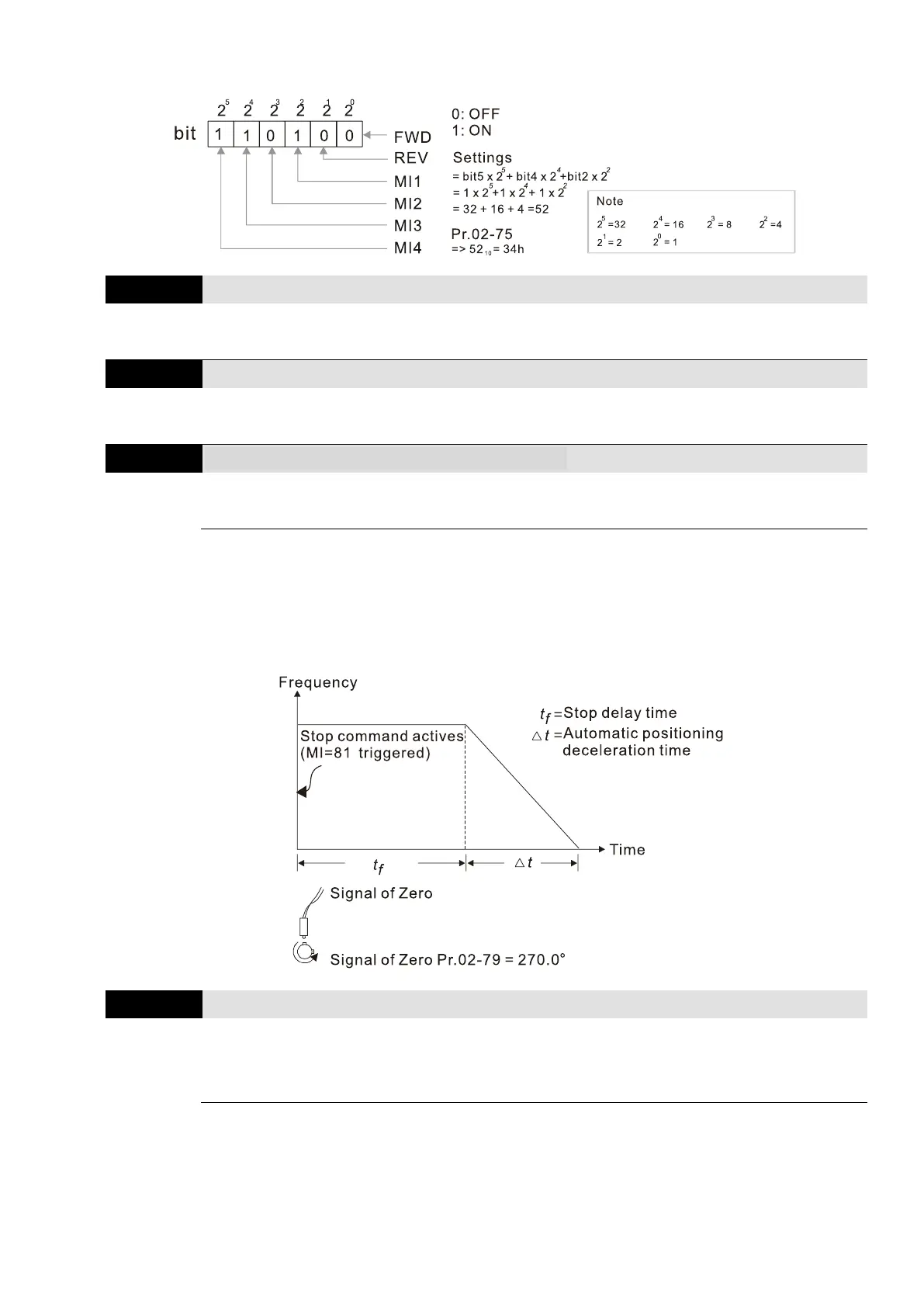

Example: Sets Pr.02-75 = 34h to activate MI1, MI3 and MI4.
02-78
Motor Deceleration Ratio
Default: 200.0
Settings
4.0–1000.0
02-79
Automatic Positioning Angle Setting
Default:180.0
Settings
0.0–6480.0

02-80
Automatic Positioning Deceleration Time
Default: 0.00
Settings
0.01–100.00 sec.
 Automatic positioning function is disabled when Pr.02-80 = 0.00.
 Use this parameter with the multi-function input terminal setting 81 (Simple positioning zero point
position signal input) to complete the positioning setting for application.
 tf automatically generates according to the positioning angle. Δt = Pr.02-80. The gross area (tf +
Δt is the required distance of the positioning.

02-81
EF Activates when the Terminal Count Value Reached
Default: 0
Settings
0: Terminal count value reached, no EF displays (continues to operate)
1: Terminal count value reached, EF activates
