Chapter 16 PLC Function ApplicationsMS300
720
API
ROL
D n
Left rotation
31
D
P
bit device
Word device
16-bit command (5 STEP)
ROL
Continuous
execution type
ROLP
Pulse
execution type
32-bit command (9 STEP)
DROL
Continuous
execution type
DROLP
Pulse
execution type
Flag signal: M1022 Carry flag
X
Y
M
K
H
KnX
KnY
KnM
T
C
D
D
n
Notes on operand usage:
K4 (16-bit) is only valid if the operand D is designated as KnY or
KnM.
n operand n=1 to 16 (16-bit)
D: Device to be rotated. n: Number of bits for one rotation.
Rotates the device designated by D to the left n bits.
Generally use this command as a pulse execution type command (ROLP).

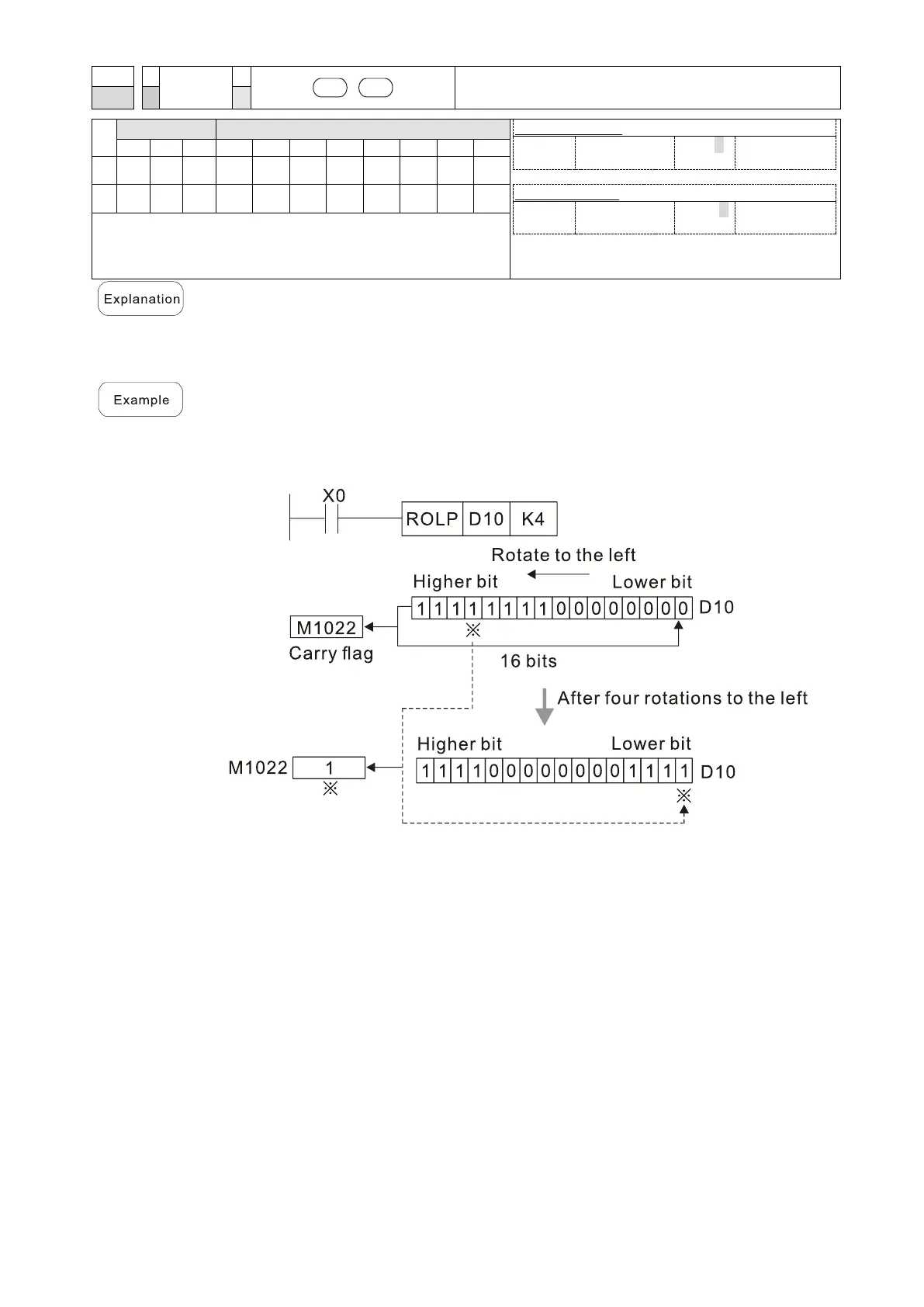

When X0 switches OFF to ON, 4 of the 16 bits in D10 specify a left rotation; the
content of the bit indicated with * (see diagram below) is sent to the carry flag
signal M1022.
