Delta VFD185B43A - VFD015 B21 B 1.50 Kw (2 HP) 230 V; 1-Phase; VFD015 B23 B 1.50 Kw (2 HP) 230 V; 3-Phase; VFD022 B23 B 2.20 Kw (3 HP) 230 V; 3-Phase; VFD022 B43 B 2.20 Kw (3 HP) 460 V; 3-Phase

C
VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
C-3
VFD015B21B 1.50 kW (2HP) 230V / 1-phase
VFD015B23B 1.50 kW (2HP) 230V / 3-phase
VFD022B23B 2.20 kW (3HP) 230V / 3-phase
VFD022B43B 2.20 kW (3HP) 460V / 3-phase

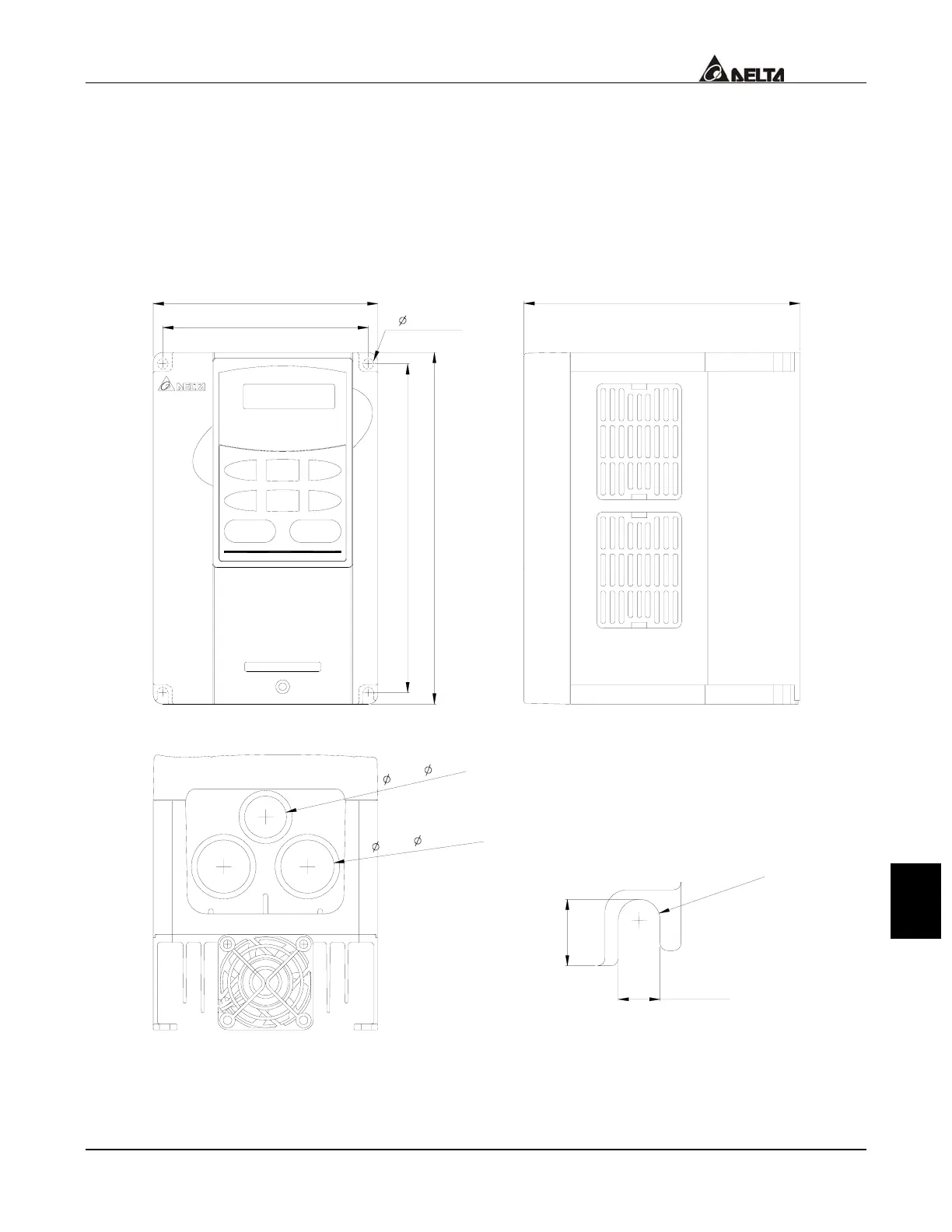

Unit: mm (inches)
5.5[0.22]
R
2
.
7
5
[
0
.
1
1
]
2
8
.
0
[
1
.
1
0
]
(
2
X
)
2
2
.
0
[
0
.
8
7
]
8.7 [0.34]
145.0 [5.71]
118.0 [4.65]
108.0 [4.25]
5.5[0.22]
185.0 [7.28] 173.0 [6.81]
