Chapter 8 Option CardsMS300
152

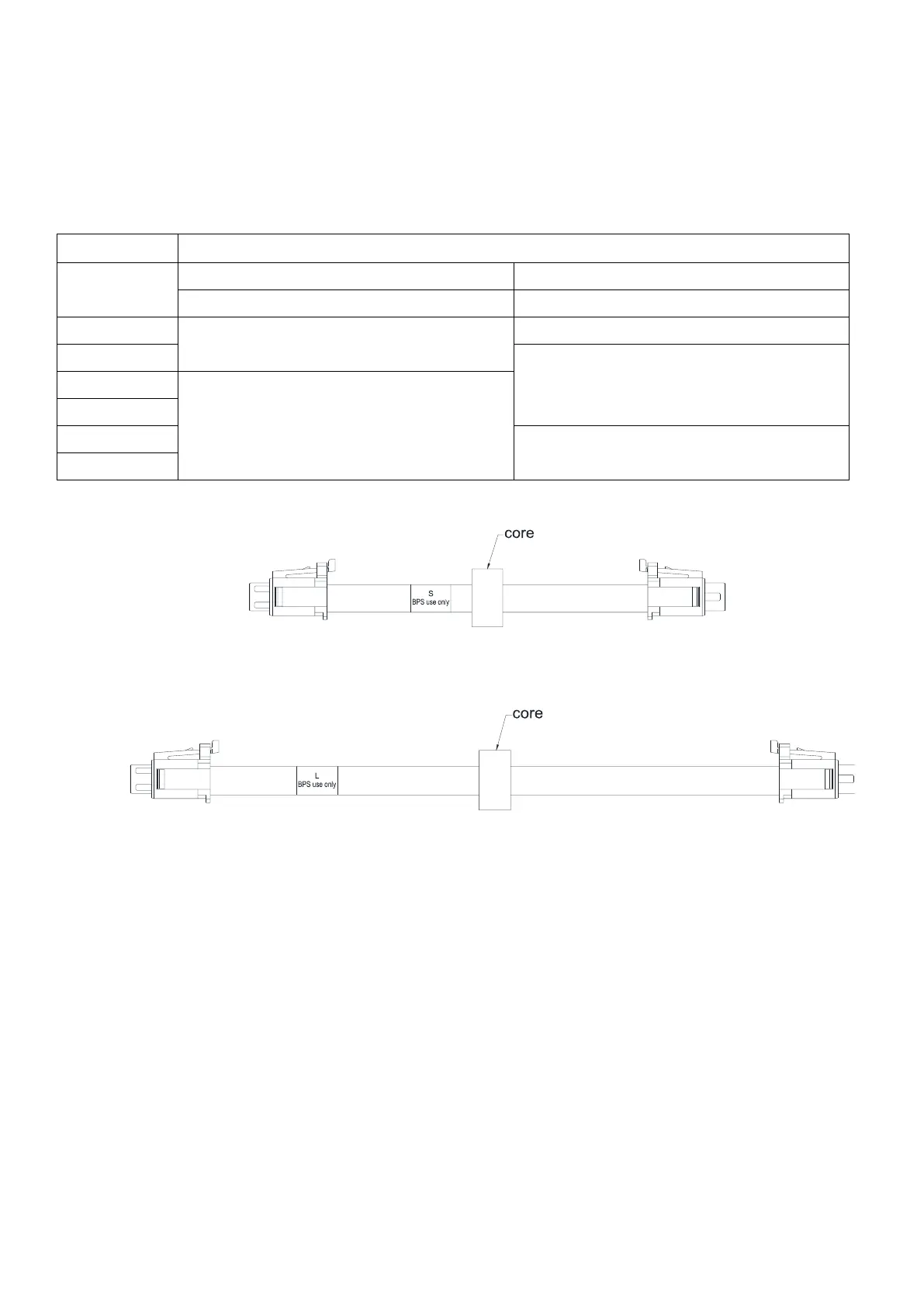

 Power Card Cables
An option card mounting box and cables with two different length are included when you purchase the
power card EMM-BPS02 (DC 24 V backup power supply card), so you do not need to purchase it with
the connection cables. “BPS use only” and “# S” or “# L” are marked on the EMM-BPS02 power card
cable. See the table below to select your applicable power card cables according to different mounting
positions.
Power Card
EMM-BPS02
Frame
Mounting Position 1
Mounting Position 2
Cable Model#
Cable Model#
A
# S
# S
B
# L
C
# L
D
E
N/A
F
Table 8-2
# S
Figure 8-7
Figure 8-8
# L
