Display the Frequency Command Executed by External Terminal
0.00–599.00 Hz (Read only)
When you set the source of the Frequency command as the external terminal, if LV or Fault
occurs, the external terminal Frequency command is saved in this parameter.
Internal / External Multi-Function Input Terminal Selection
Selects the terminals MI1–MI7 to be internal terminals or external terminals. When the MIx is set
as internal terminal, the corresponding external terminal function is disabled.
To activate internal terminals via Pr.02-75 setting.

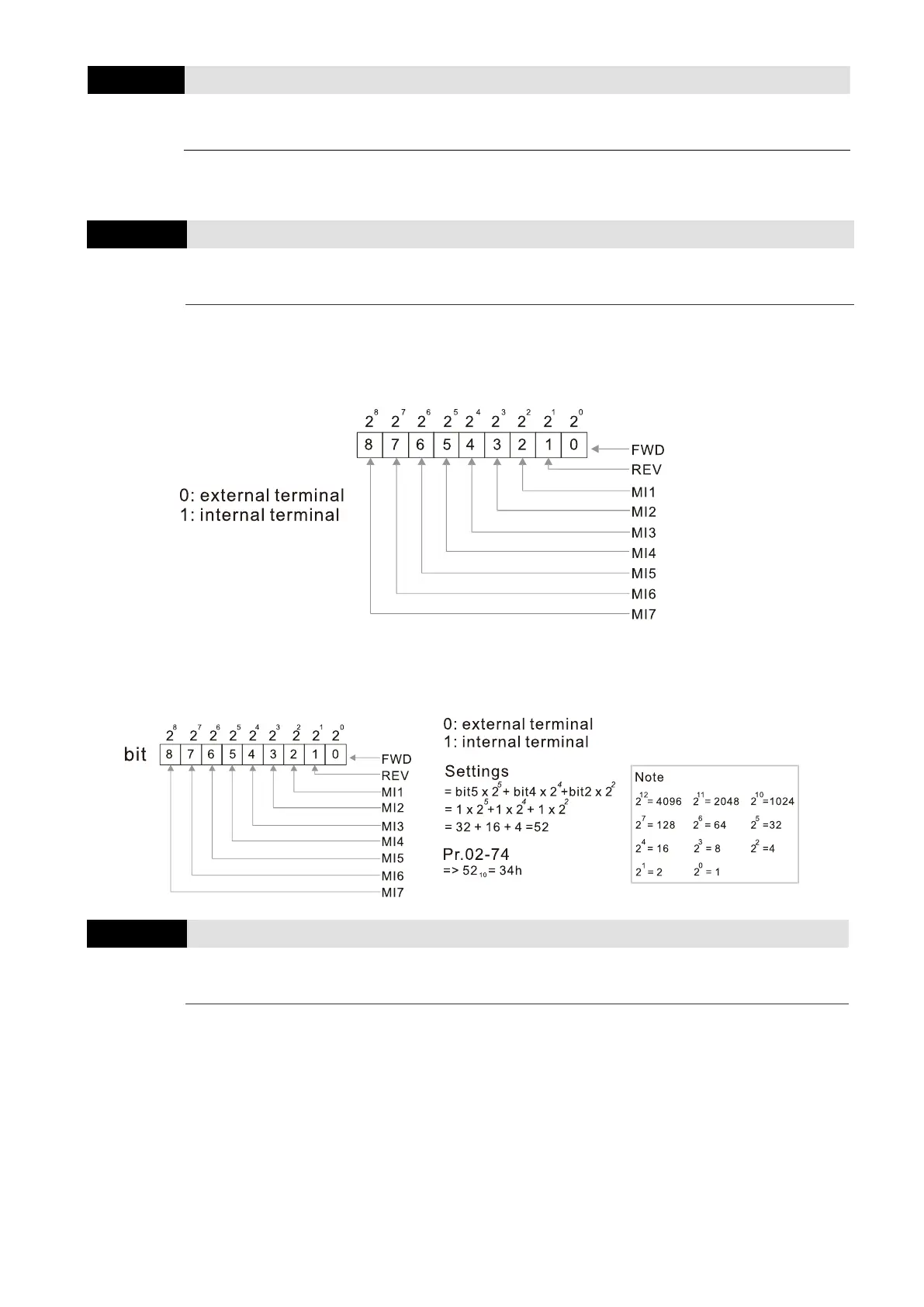

Setting method: convert the binary 12bit number to hexadecimal number for input.
Example: if the MI1, MI3, MI4 are triggered by virtual terminals, then Pr.02-74 = 34h.
Internal Multi-Function Output Terminal Selection
Sets the internal terminal action (ON / OFF) through digital keypad, communication or PLC.
The Local / Remote options on the digital keypad have the lowest priority. When the PLC uses
the entity DI, the corresponding function of original DI can still be triggered through virtual
terminals.
Pr.02-74 and Pr.02-75 can both be changed during RUN.
Pr.02-74 and Pr.02-75 are saved after powering off.
You can choose N.O. (Pr.02-12 bit = 0) or N.C. (Pr.02-12 bit = 1) through the Pr.02-12 MI mode
to trigger the virtual terminals.
