Chapter 7 Optional AccessoriesMS300
84
Recommended maximum wiring gauge when installing a zero phase reactor
Zero Phase Reactor
Model No.
Max. Wire
Gauge or LUG
width
Max. Wire Gauge AWG (1Cx3)
Max. Wire Gauge AWG (4Cx1)
75°C
90°C
75°C
90°C
RF008X00A
13 mm
3 AWG
1 AWG
3 AWG
1 AWG
T600006L2040W453
11 mm
9 AWG
4 AWG
6 AWG
6 AWG
T600006L2050W565
16 mm
1 AWG
2/0 AWG
1 AWG
1/0 AWG
Table 7-44
7-5-3 Zero Phase Reactor for Signal Cable
To solve interference problems between signal cables and electrical equipment, install a zero phase
reactor on the signal cable. Refer to the table below for models and dimensions. Installing a zero
phase reactor on the signal cable at the source of the interference suppresses the interference and
noise between signal cables.

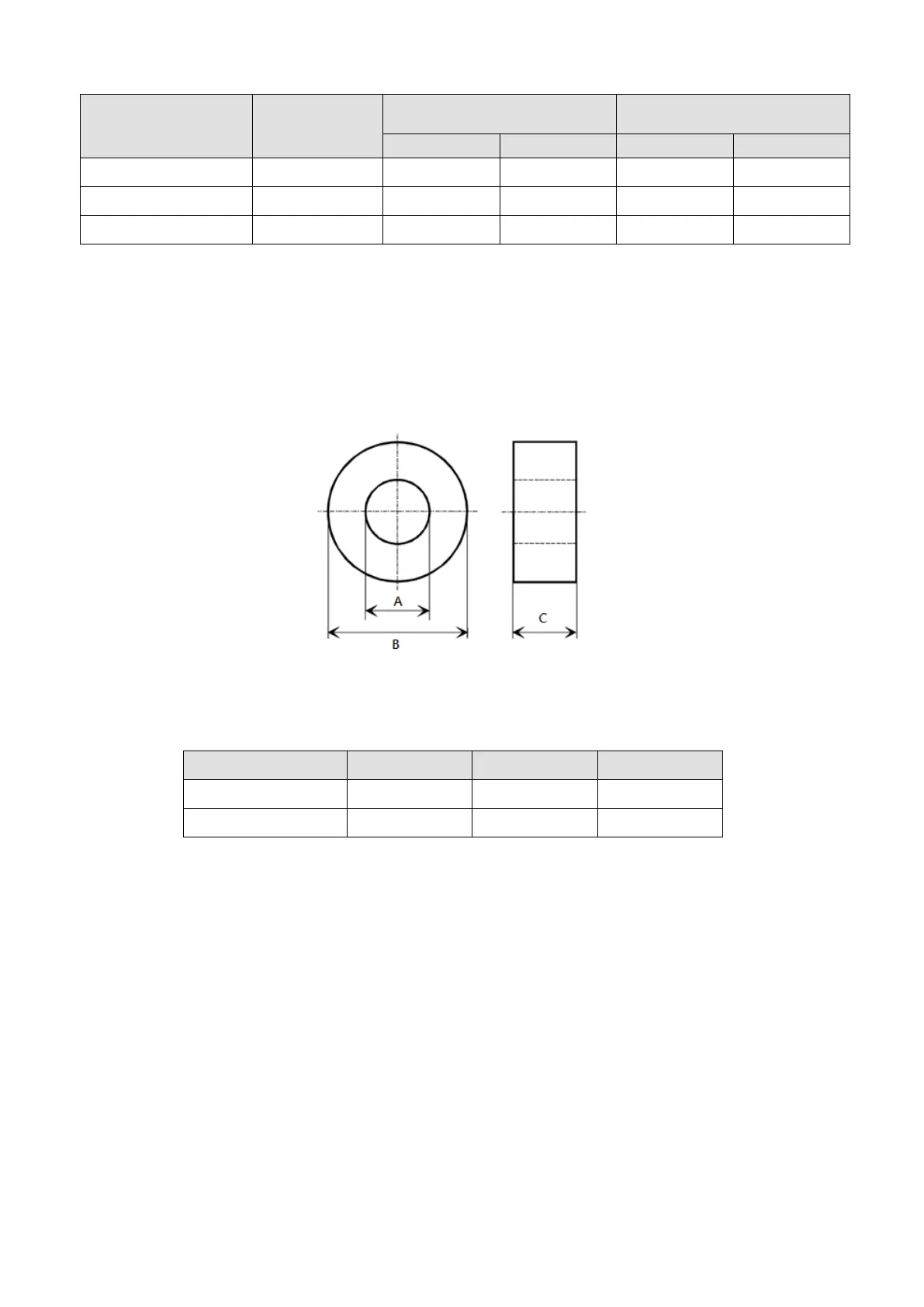

Figure 7-25
Unit: mm
Model
A
B
C
T60004L2016W620
10.7
17.8
8.0
T60004L2025W622
17.5
27.3
12.3
Table 7-45
