Chapter 7 Optional AccessoriesMS300
86

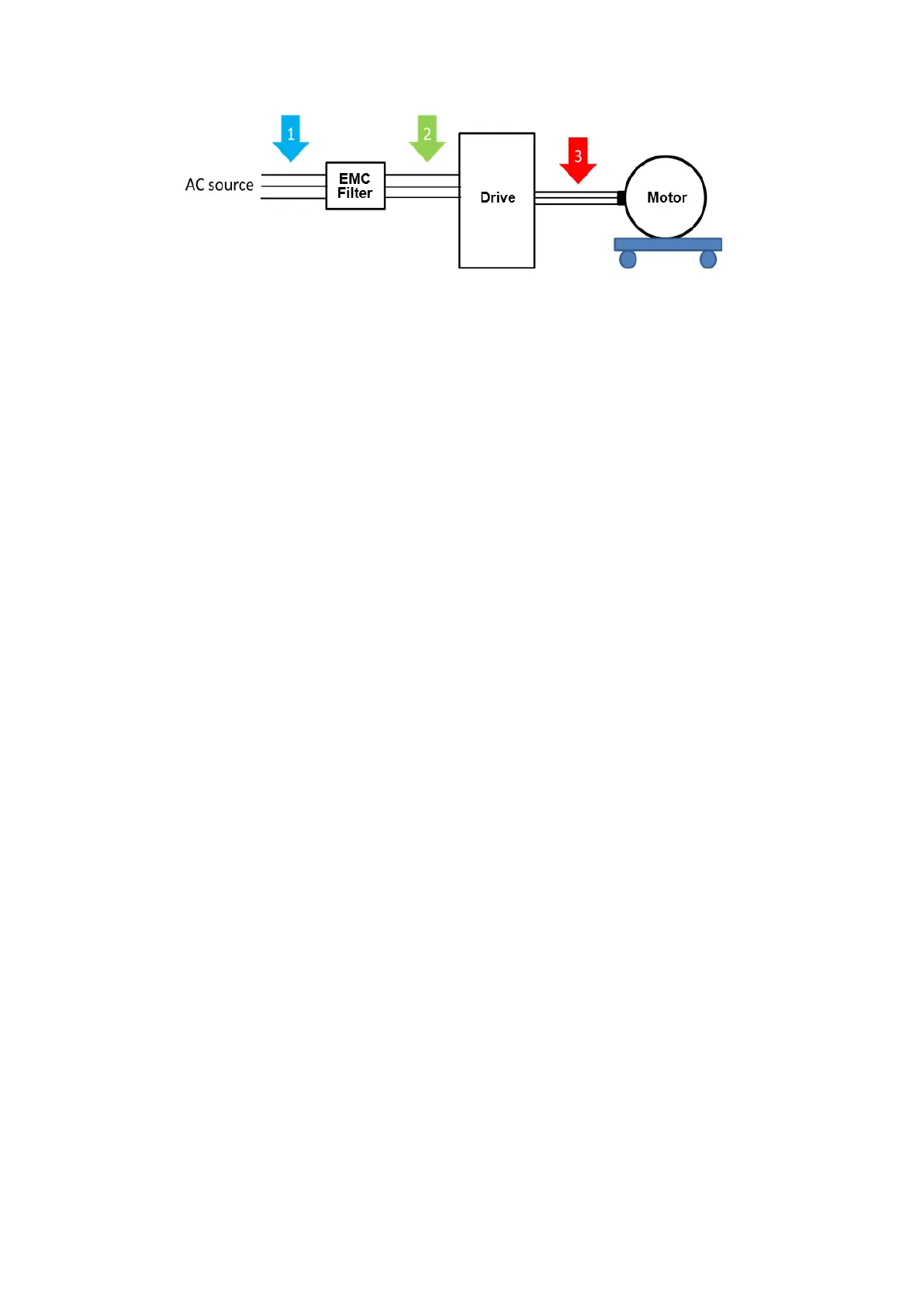

Zero phase reactor installation position diagram:
Figure 7-26
*1 Install at the cable between the power supply and the EMC filter
*2 Install at the cable between the EMC filter and the drive
*3 Install at the cable between the drive and the motor
