Chapter 1 IntroductionC2000 Plus
1-10

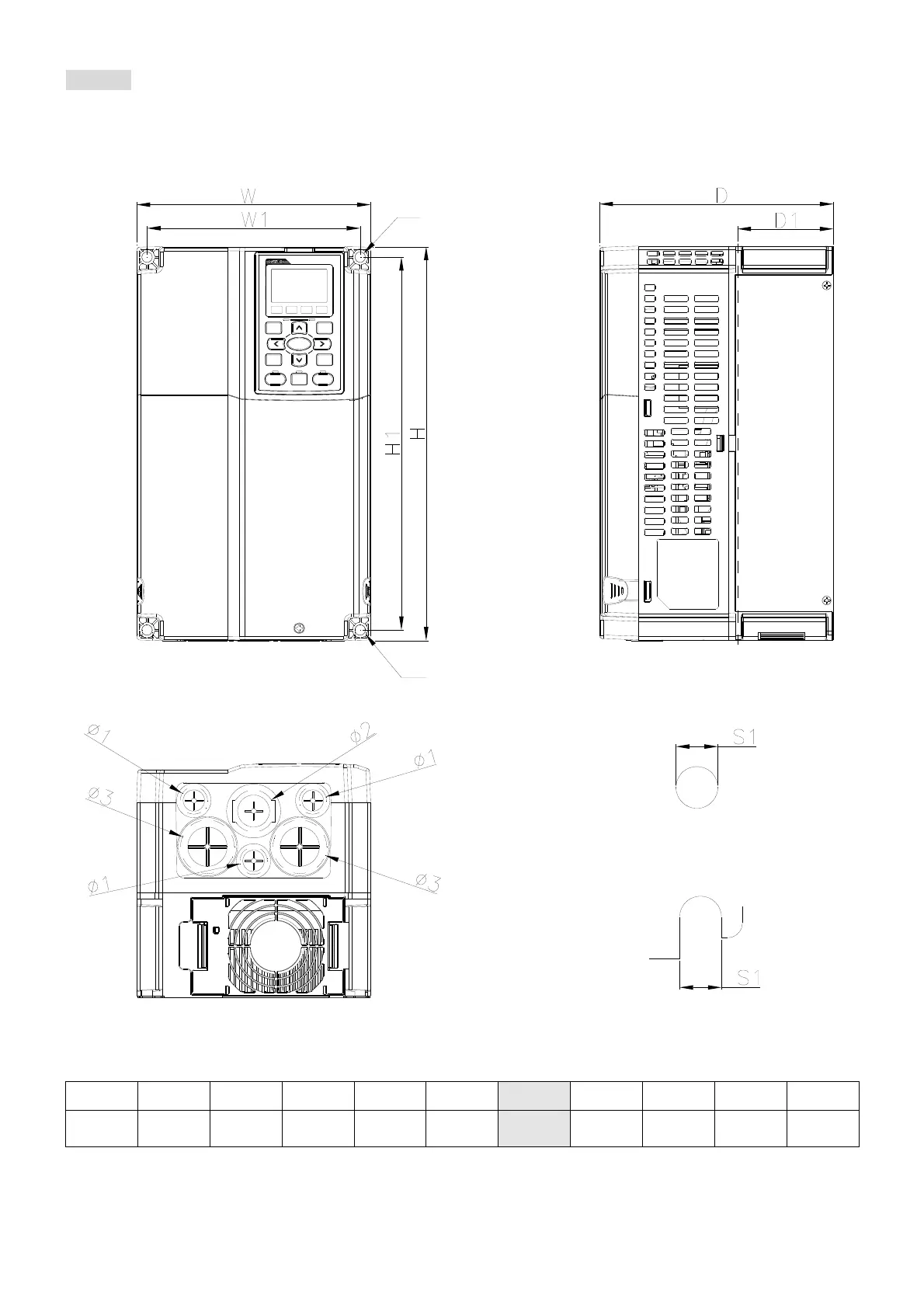

Frame B
VFD055C23A-21; VFD055C53A-21; VFD075C23A-21; VFD075C43A-21; VFD075C4EA-21;
VFD075C53A-21; VFD110C23A-21; VFD110C43A-21; VFD110C4EA-21; VFD110C53A-21;
VFD150C43A-21; VFD150C4EA-21; VFD150C53A-21
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail A
See Detail B
Figure 1-16
Unit: mm [inch]
Frame W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
B
190.0
[7.48]
320.0
[12.60]
190.0
[7.48]
173.0
[6.81]
303.0
[11.93]
77.9
[3.07]
8.5
[0.33]
22.2
[0.87]
34.0
[1.34]
43.8
[1.72]
D1*: Flange mounting
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail B
See Detail A
