Chapter 7 Optional AccessoriesC2000 Plus
7-106

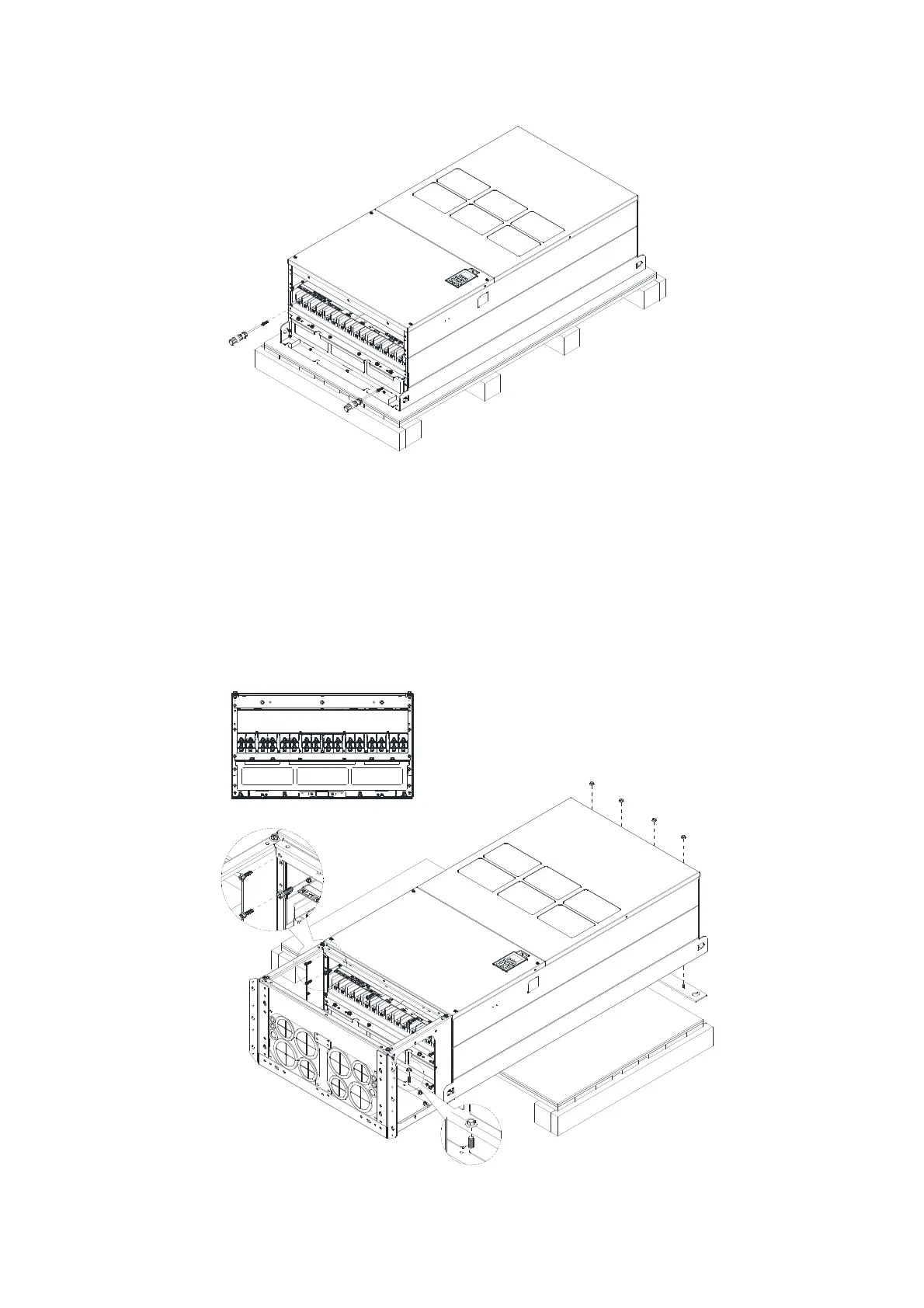

3. Tighten the M6 screws to locations shown in the following figure.
Screw Torque: 35–45 kg-cm / (30.3–39 Ib-in.) / (3.4–4.4 Nm)
Figure 7-114
4. Install the conduit box by tightening all the screws shown in the following figure.
Screw 1–6: M6 screw torque: 55–65 kg-cm / (47.7–56.4 Ib-in) / (5.4–6.4 Nm)
Screw 7–9: M8 screw torque: 100–110 kg-cm / (86.7–95.4 Ib-in) / (9.8–10.8 Nm)
Screw 10–13: M10 screw torque: 250–300 kg-cm / (216.9–260.3 Ib-in) / (24.5–29.4 Nm)
Screw 14–17: M8 screw torque: 100–110 kg-cm / (86.7–95.4 Ib-in) / (9.8–10.8 Nm)
2
3
7
12
1312
11
10
17
16
15
14
6
4
5
9
8
7
3
2
1
Figure 7-115
