Chapter 7 Optional AccessoriesC2000 Plus
7-148

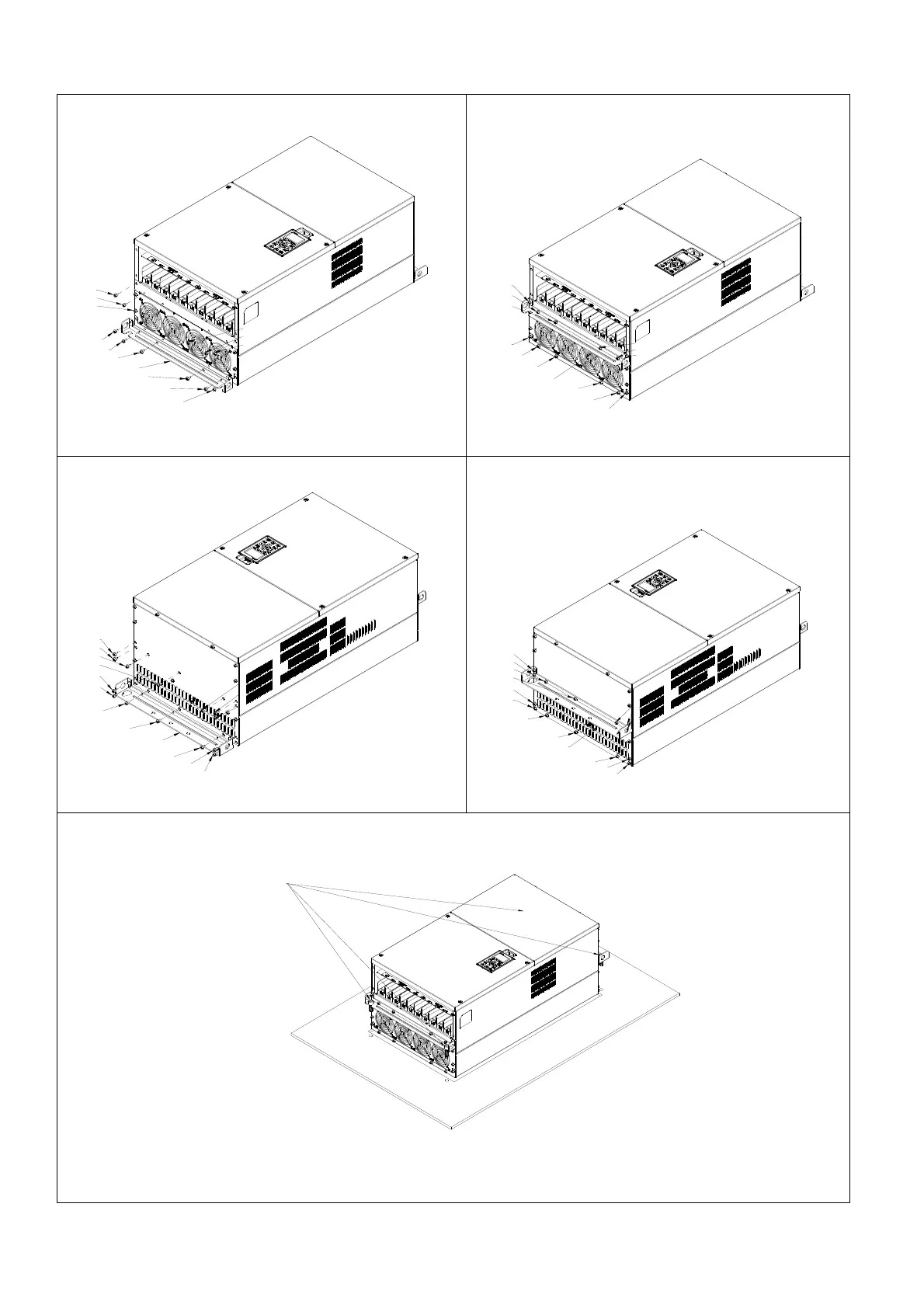

Frame F installation
1. Loosen 12 screws and remove Fixture 2.
1
2
3
4
6
5
12
7
8
9
10
11
FIXTURE 2
Figure 7-223
2. Loosen 12 screws and remove Fixture 2.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
1
6
5
12
7
8
FIXTURE2
9
10
11
2
3
4
Figure 7-224
3. Loosen screw 13 –26 and remove Fixture 1.
13
19
18
17
14
15
16
20
26
25
21
22
23
24
FIXTURE1
Figure 7-225
4. Install Fixture 1 by tightening screw 13 –26
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
13
19
18
17
20
26
25
24
FIXTURE1
23
21
22
14
15
16
Figure 7-226
5. Place 4 of the M12 screws through Fixture 1&2 and plate then tighten the screws.
Screw torque: 300–400 kg-cm / (260–347 Ib-in.) / (29.4–39.2 Nm)
Screws M12*4
Figure 7-227
