Chapter 8 Option CardsC2000 Plus
8-54
8-17-7 Network connection

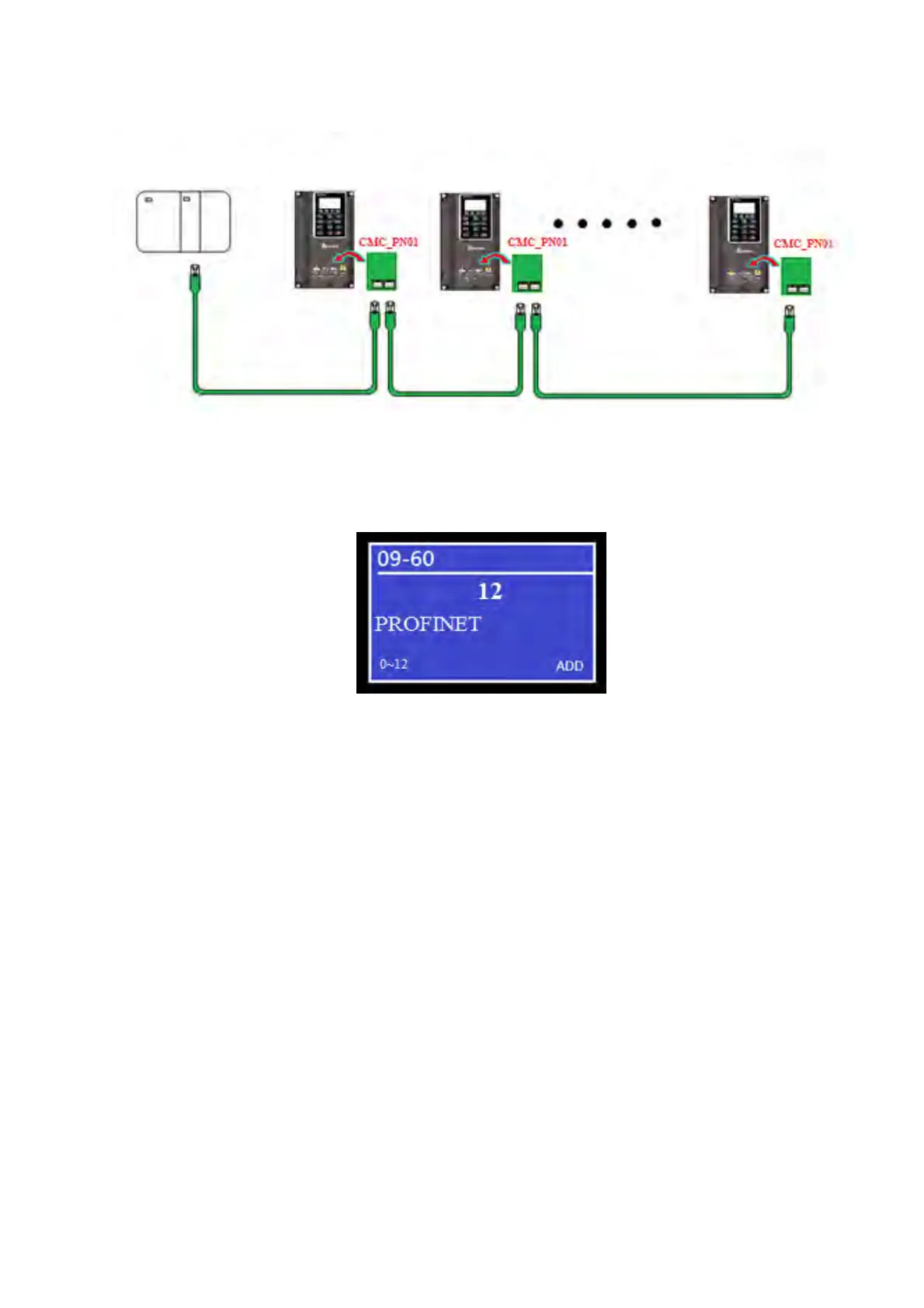

The wiring of CMC-PN01 shows as follows:
When the installation is finished, supply electricity to the drive. The Pr.09-60 of the drive should
be able to display “PROFINET” with a current value of 12. If not, make sure your version of the drive
is correct (C2000 Plus needs V3.05 or later versions) and the communication card is correctly
connected.
C2000 Plus
Profinet controller
C2000 Plus
C2000 Plus
