Chapter 10 Digital KeypadC2000 Plus
10-6

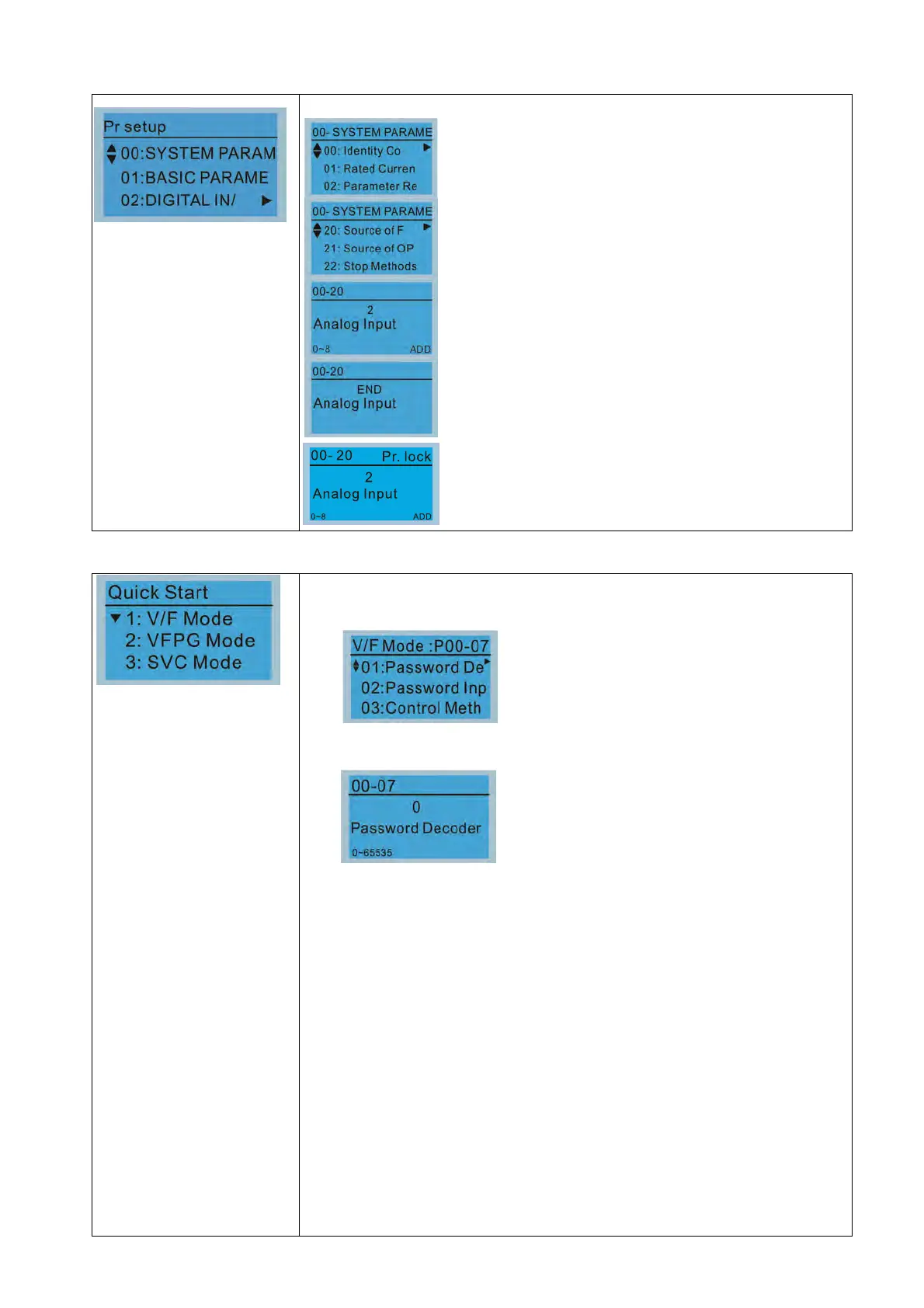

1. Parameter Setup
Press ENTER to select.
Press UP / DOWN to select
the parameter group.
Once you select a parameter
group, press ENTER to go
into that group.
For example: Setup source for the master frequency command.
In the Group 00 Motor Drive Parameter,
use UP / DOWN keys to select parameter 20: Auto
Frequency Command.
Press ENTER to go to this parameter’s setting menu.
Use the UP / DOWN keys to choose a setting.
For example: choose 2 Analogue Input, and then press
ENTER key.
After you press ENTER, END is displayed which
means that the parameter setting is done.
NOTE: When parameter lock / password protection
function is enabled, it displays “Pr. lock” on the upper
right corner of the keypad. The parameter cannot be
written or is protected by the password under this
circumstances.
2. Quick Start
Press ENTER to select.
Quick Start:
1. V/F Mode
2. VFPG Mode
3. SVC Mode
4. FOCPG Mode
5. TQCPG Mode
6. My Mode
Description:
1. VF Mode
01:Password Decoder
Items
1. Parameter protection password input
(Pr.00-07)
2. Parameter protection password setting
(Pr.00-08)
3. Control mode (Pr.00-10)
4. Speed control mode (Pr.00-11)
5. Load selection (Pr.00-16)
6. Carrier frequency (Pr.00-17)
7. Master frequency command source / Source
selection of the PID target (AUTO)(Pr.00-20)
8. Operation command source (AUTO)
(Pr.00-21)
9. Stop method (Pr.00-22)
10. Digital keypad STOP function (Pr.00-32)
11. Max. operation frequency (Pr.01-00)
12. Motor 1 rated / base frequency (Pr.01-01)
13. Motor 1 rated / base voltage (Pr.01-02)
14. Motor 1 mid-point frequency 1 (Pr.01-03)
15. Motor 1 min-point voltage 1 (Pr.01-04)
16. Motor 1 mid-point frequency 2 (Pr.01-05)
17. Motor 1 mid-point voltage 2 (Pr.01-06)
18. Motor 1 min. output frequency (Pr.01-07)
19. Motor 1 min. output voltage (Pr.01-08)
20. Output frequency upper limit (Pr.01-10)
21. Output frequency lower limit (Pr.01-11)
22. Acceleration time 1 (Pr.01-12)
23. Deceleration time 1 (Pr.01-13)
24. Over-voltage stall prevention (Pr.06-01)
25. Derating protection (Pr.06-55)
26. Software brake chopper action level
(Pr.07-00)
27. Speed tracking during start-up (Pr.07-12)
