Chapter 10 Digital KeypadC2000 Plus
10-35
For example, if you set Function Key to F1, Min Value to 0 and Max Value to 4, when you press
F1 on the keypad, then you can press Up/Down on the keypad to increase or decrease the value.
Press ENTER on the keypad to confirm your setting. You can also view the parameter table 01-44
to verify if you correctly entered the value.

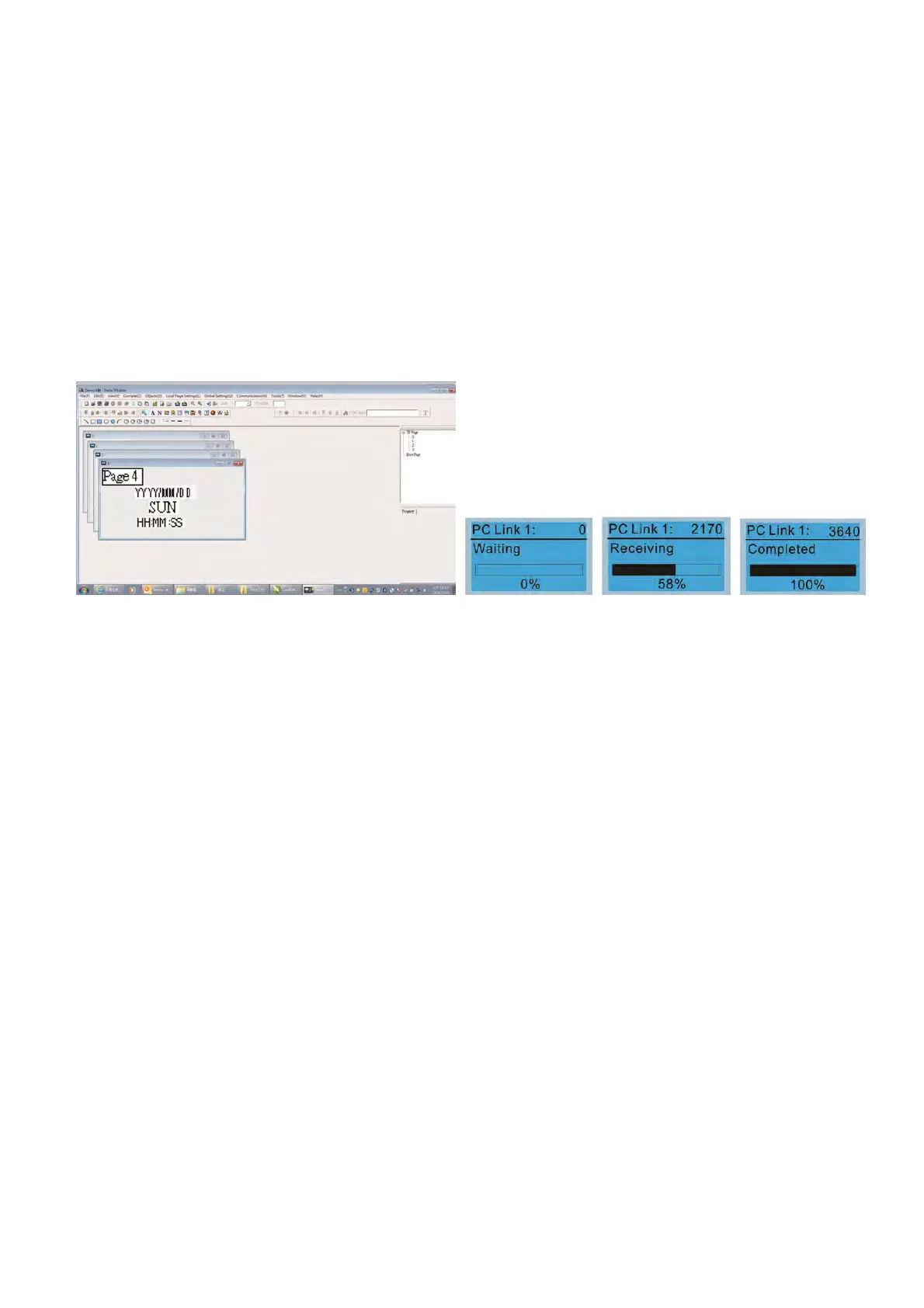

11. Download TP Page: Press Up / Down on the keypad to select #13 PC Link.
Then press ENTER on the keypad. The screen displays “Waiting”. In TPEditor, choose a page that you
have created, and then on the Communication menu click Write to TP to start downloading the page to
the keypad.
When you see “Completed” on the keypad screen, the download is finished. You can then press ESC on
the keypad to go back to the menu screen.
