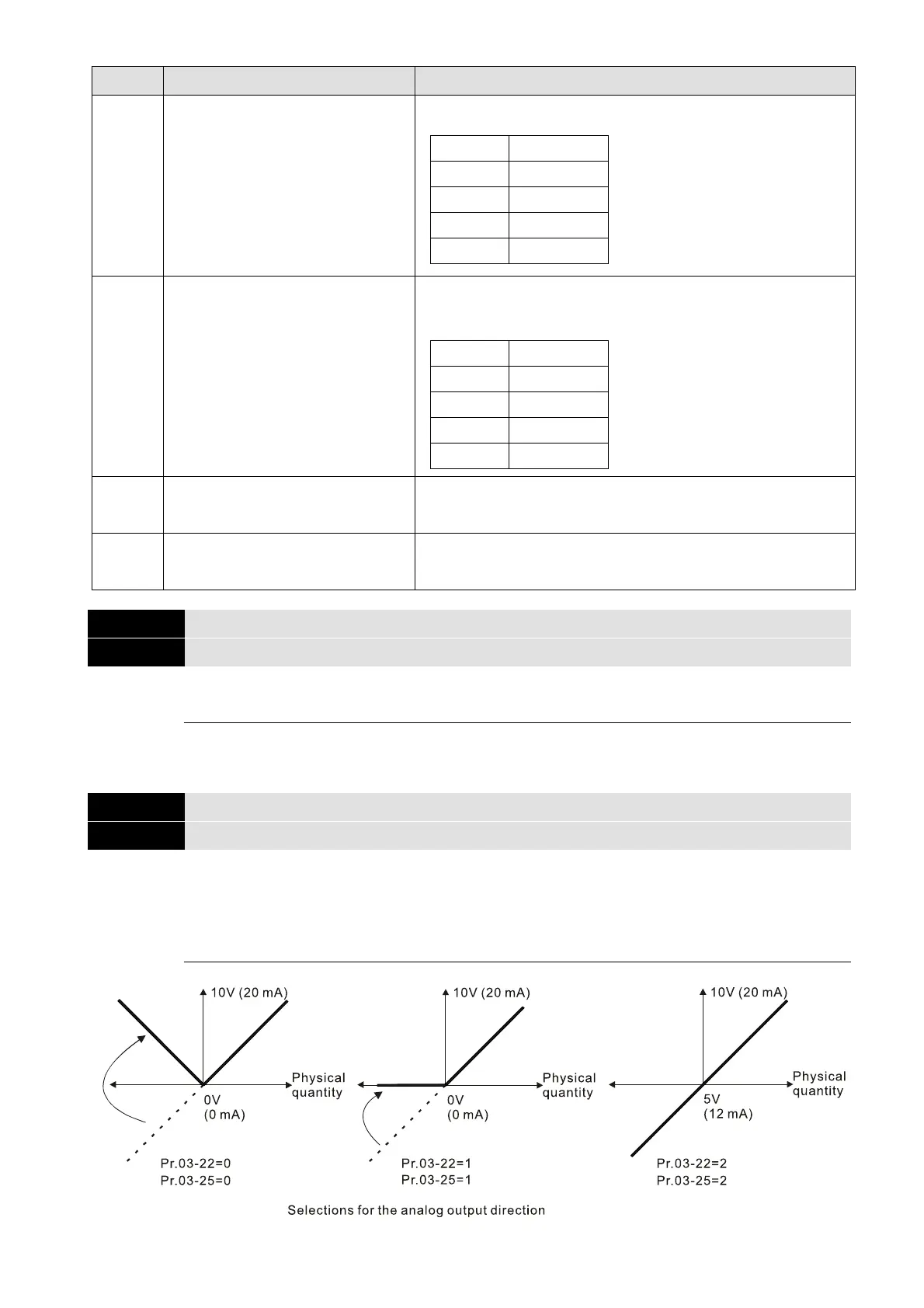

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-03-20
Settings Functions Descriptions
21 RS-485 analog output
For RS-485 (InnerCOM / Modbus) control analog output
Terminal Address
AFM1 26A0H
AFM2 26A1H
AO10 26AAH
AO11 26ABH
22
Communication card analog
output
For communication analog output
(CMC-EIP01, CMC-PN01, CMC-DN01)
Terminal Address
AFM1 26A0H
AFM2 26A1H
AO10 26AAH
AO11 26ABH
23 Constant voltage output
Pr.03-32 and Pr.03-33 control the voltage output level.
0
–100% of Pr.03-32 corresponds to 0–10 V of AFM1.
25
CANopen and RS-485 analog
output
For CANopen and InnerCOM
control output

03-21
AFM1 Analog Output Gain 1

03-24
AFM2 Analog Output Gain 2
Default: 100.0
Settings 0.0–500.0%
 Adjust the voltage level outputted to the analog meter from the analog signal (Pr.03-20) output
terminal AFM of the drive.

03-22
AFM1 Analog Output 1 in REV Direction

03-25
AFM2 Analog Output 2 in REV Direction
Default: 0
Settings 0: Absolute value in output voltage
1: Reverse output 0 V; forward output 0–10 V
2: Reverse output 5–0 V; forward output 5–10 V
