Delta VFD220C43A-21 User Manual

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-11-29

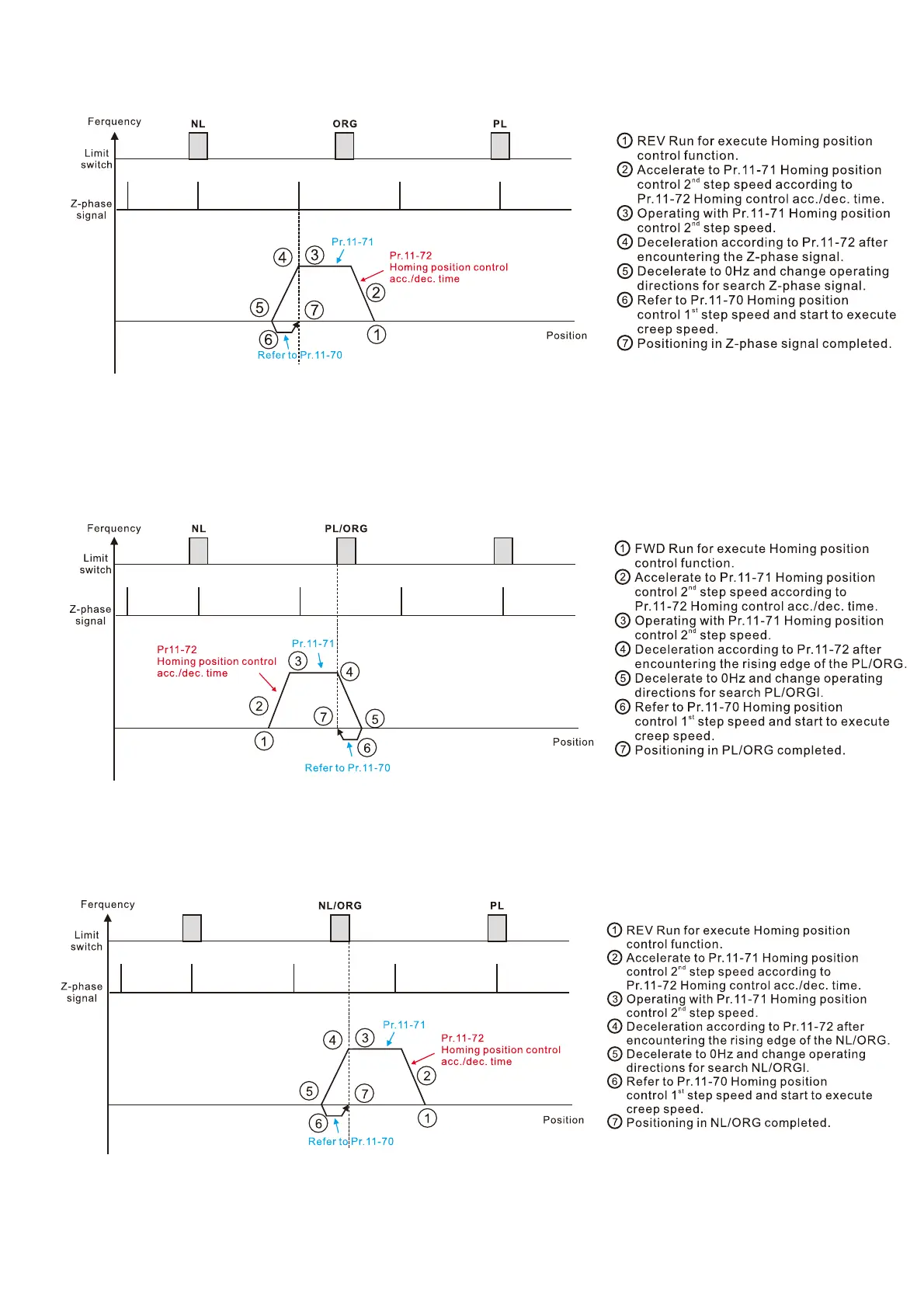

 Locate the Z-phase signal in the reverse direction and use the Z-phase signal as the origin.
 Execute homing position control in the forward direction and use the positive limit switch or the
ORG switch as the origin.
 Execute homing position control in the reverse direction and use the negative limit switch or the
ORG switch as the origin.

Delta VFD220C43A-21 Specifications

General

Brand	Delta
Model	VFD220C43A-21
Category	DC Drives
Language	English
