Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-11-40

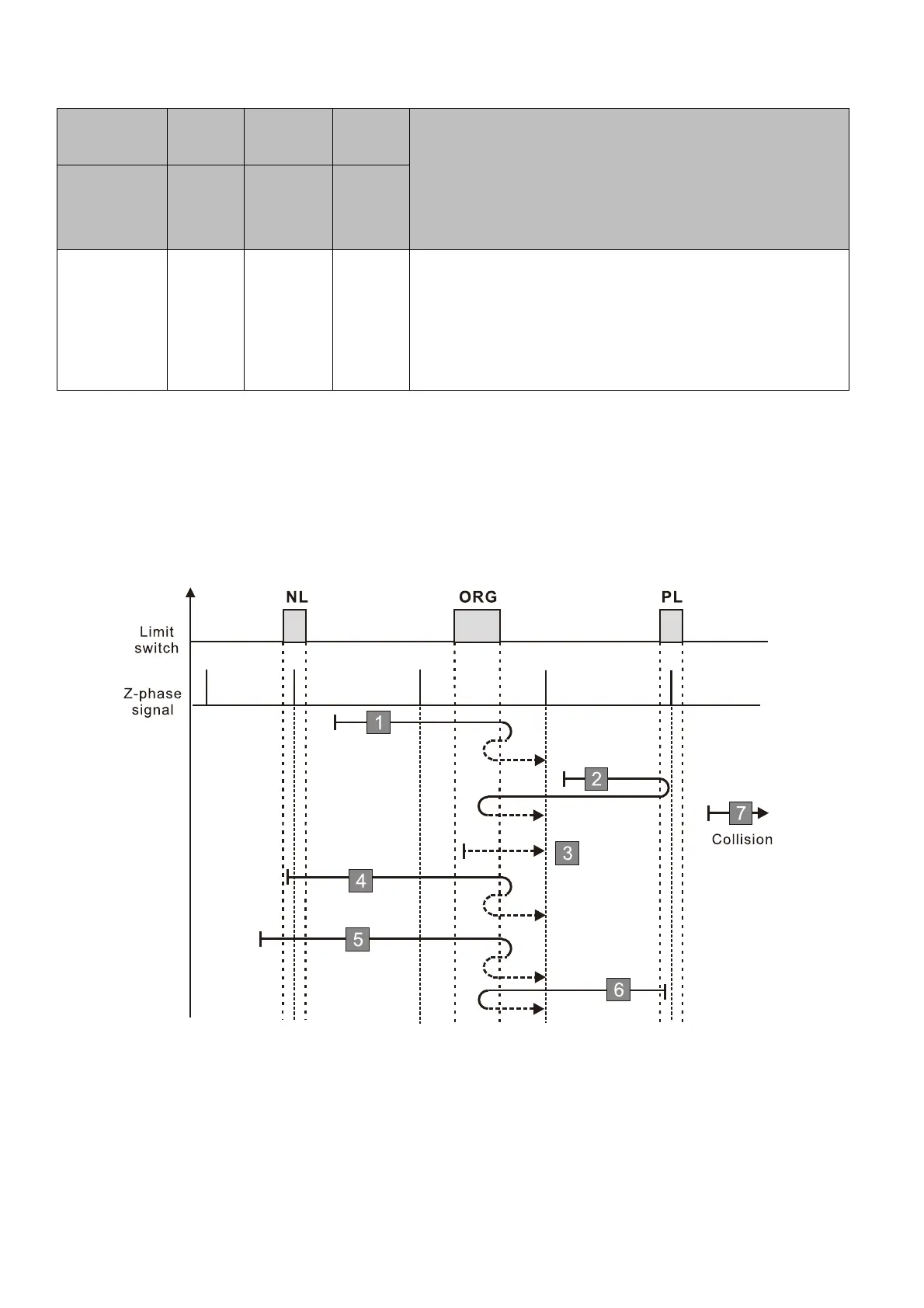

Diagram 10
CiA402 object
0x6098H
Z Y X
Function Description
Homing
Method
Home
Limit
Z-phase
Signal
Setting
Homing
Mode
10 1 1 6
Execute homing position control in the forward direction
until encountering the ORG switch (from 1 to 0). Then,
continue locating the Z-phase signal in the same
direction as the origin. When encountering the positive
limit switch, the direction is reversed to locate the origin.
1. The initial movement is in the forward direction.
2. When moving in the forward direction and encountering the positive limit switch, the movement
direction is reversed and waits for the falling-edge trigger of the positive limit switch.
3. When moving in the reverse direction and encountering the rising edge of the ORG switch, the
movement direction is reversed.
4. Then, the movement locates the Z-phase signal in the forward direction and uses the Z-phase signal
as the origin.
A homing failure occurs when the following condition happen:
1. If a negative limit switch signal is encountered when the motor moves in the reverse direction, a
homing failure occurs.
2. If no positive limit switch or Z-phase signal is encountered in the homing process mentioned above,
and time-out is triggered, then a homing failure occurs.
