Chapter 8 Option CardsMS300
173
LED
Status
Indication
LINK-IN
Green
ON
Network connection is in normal status
Flashes
Network is in operation
OFF
Doesn’t connect to network
LINK-OUT
Green
ON
Network connection is in normal status
Flashes
Network is in operation
OFF
Doesn’t connect to network
Table 8-43
8-7-7 Network Connection

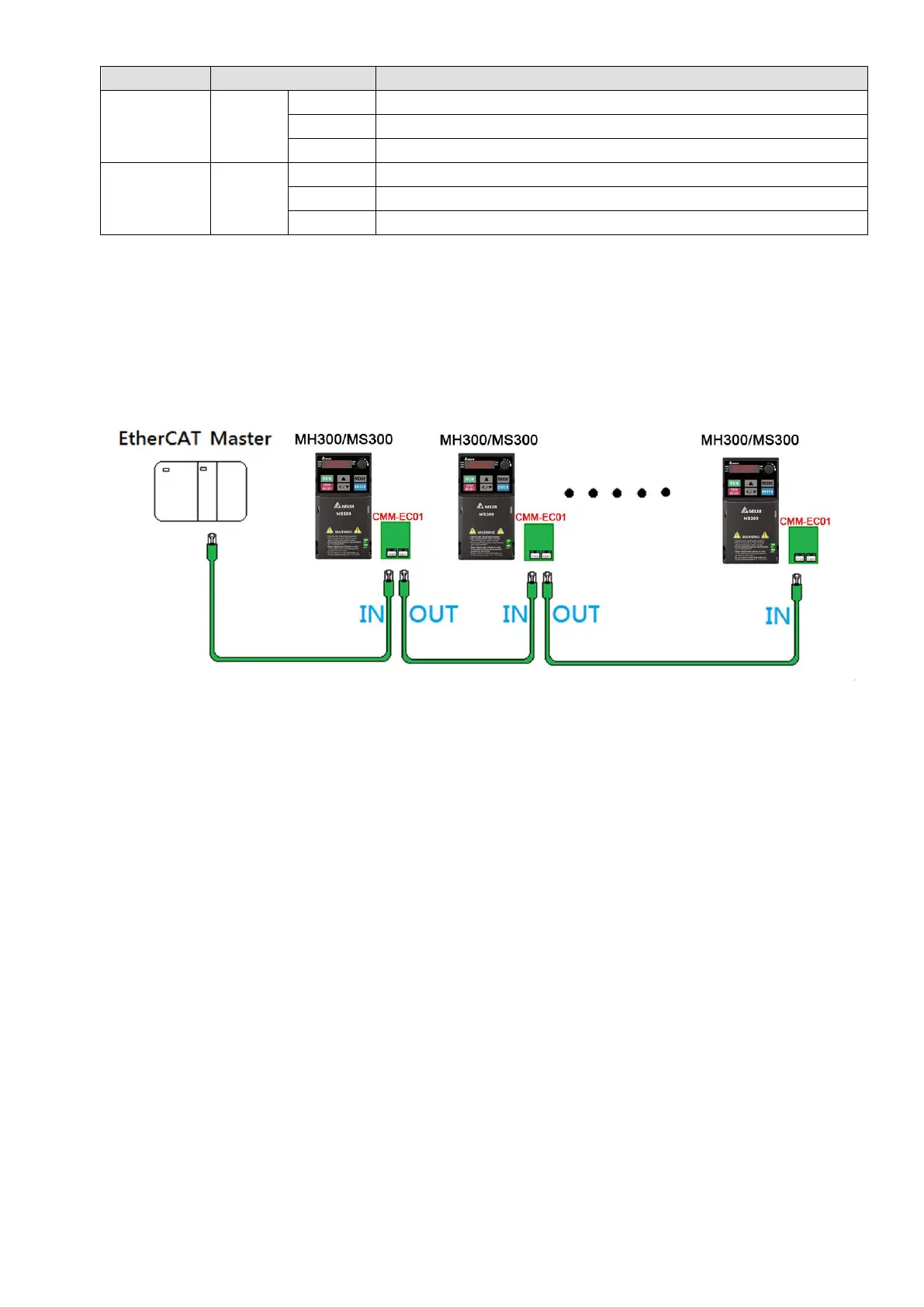

Pay attention to the connection method for EtherCAT because its packet delivery is directional. When
front-mounting the communication card, the delivery direction for CMM-EC02 is from left (IN) to right
(OUT). The diagram below shows the correct wiring for front-mounting CMM-EC01.
Front-mounting the communication card:
Figure 8-46
After finishing assembling the hardware, supply power to the drive. Then, Pr.09-60 on the drive
should display “EtherCAT”, with a current value of 6. If not, make sure your version of the drive is
correct (MS300 needs firmware version 1.02 or later) and verify if the communication card is correctly
connected.
