Reactor Dimension and Specifications
AC Input Reactor:

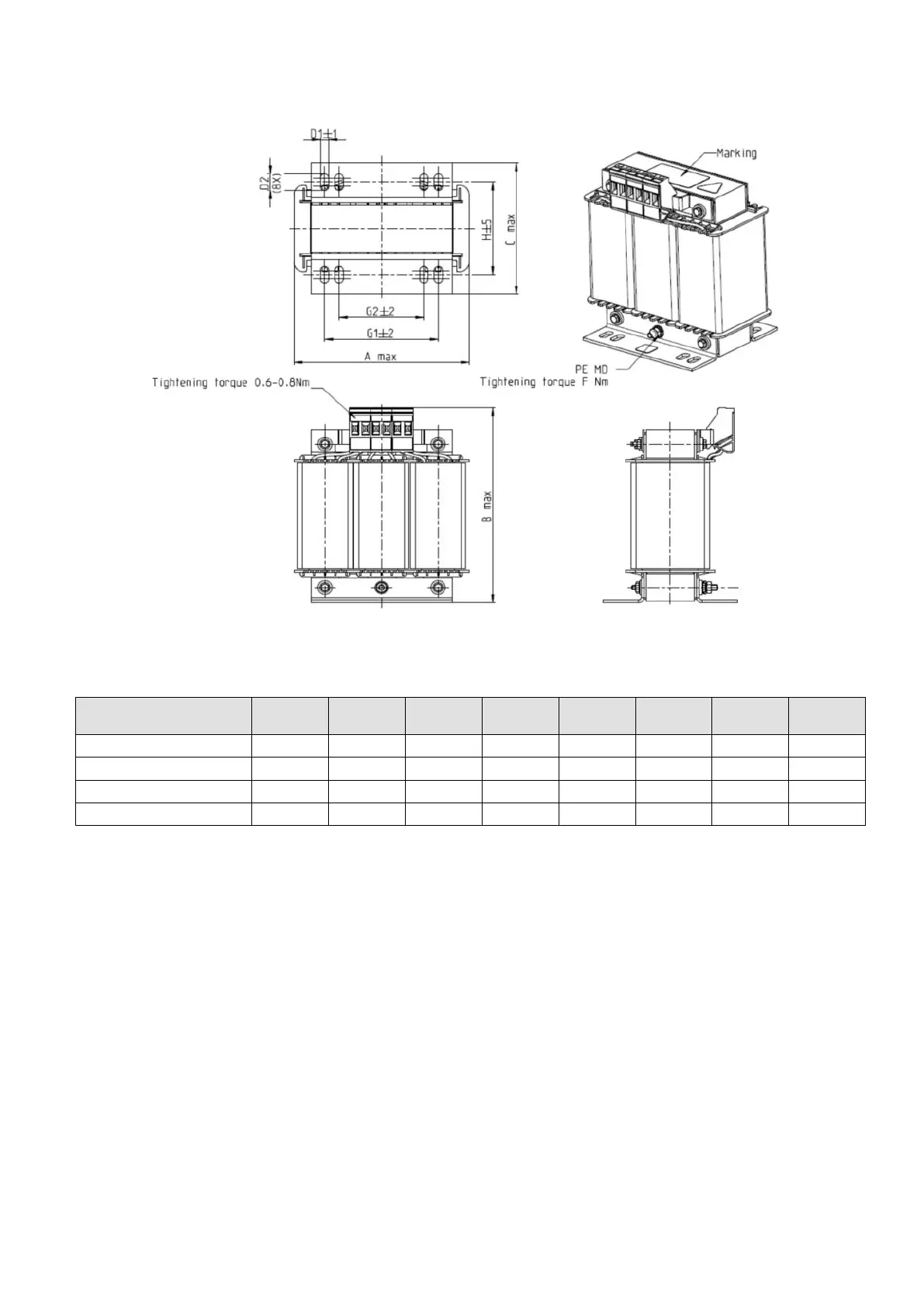

Figure 7-7
Unit: mm
AC Input Reactors
Delta Part #
A
B
C
D1*D2
E
G1
G2
PE D
DR005A0254
100
115
65
6*9
45
60
40
M4
DR008A0159
100
115
65
6*9
45
60
40
M4
DR011A0115
130
135
95
6*12
60
80.5
60
M4
DR017AP746
130
135
100
6*12
65
80.5
60
M4
Table 7-23
