Chapter 8 Option CardsMS300
159

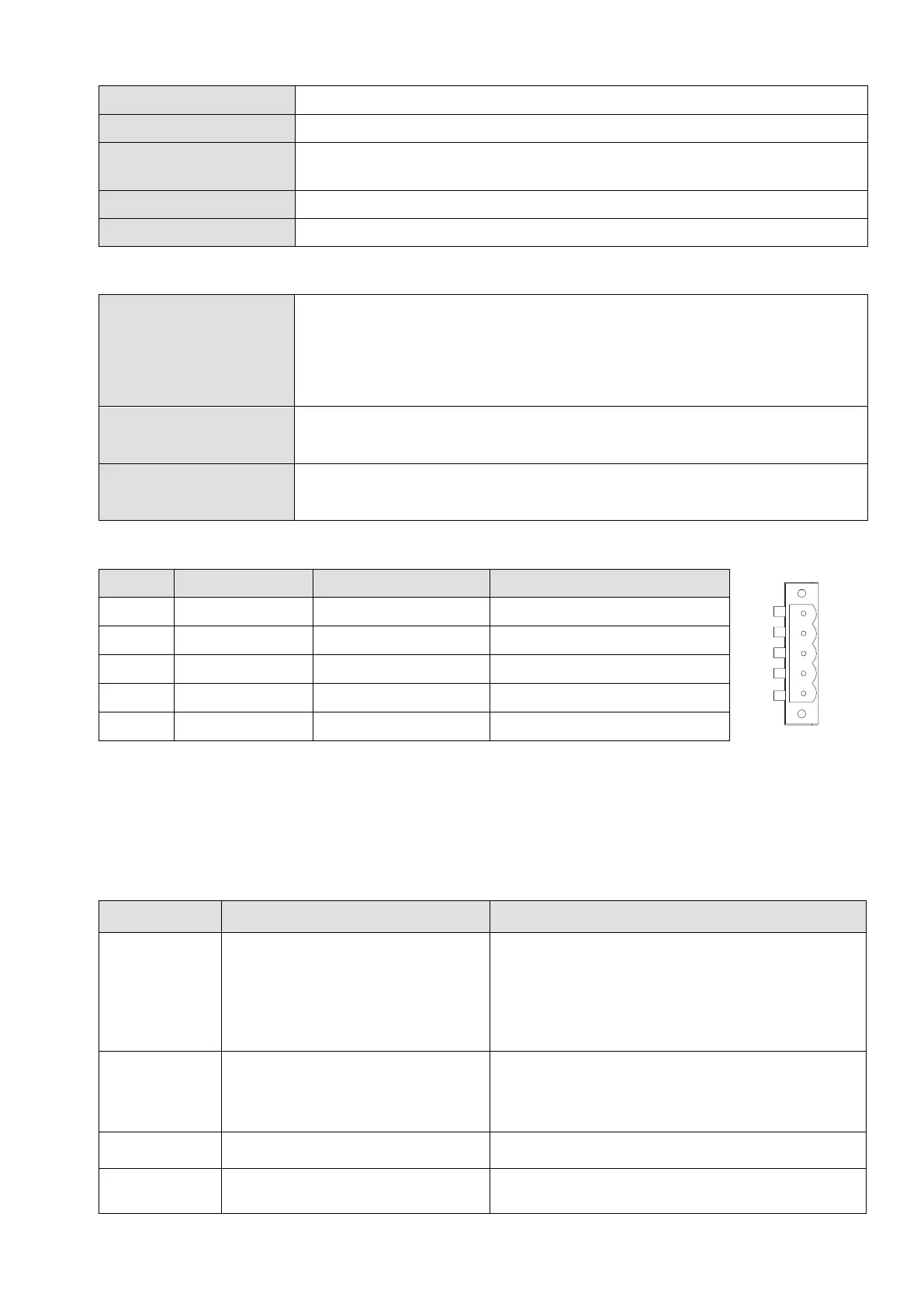

Electrical Specification
Power Supply Voltage
15 V
DC
(supplied by the AC motor drive)
Insulation Voltage
500 V
DC
Communication Cable
Power Consumption
0.85 W
Power Consumption
1 W
Weight
23 g
Table 8-14
Environment
Noise Immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation / Storage
Operation: -10–50ºC (temperature), 90% (humidity)
Storage: -25–70ºC (temperature), 95% (humidity)
Shock / Vibration
Resistance
International standards:
IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
Table 8-15
DeviceNet Connector
PIN
Signal
Color
Definition
5
4
3
2
1
1
V+
Red
24 V
DC
2
H
White
Signal+
3
S
-
Ground
4
L
Blue
Signal-
5
V-
Black
0 V
Table 8-16
Figure 8-29
8-3-4 LED Indicator & Troubleshooting
There are two LED indicators on the CMM-DN02: NS LED and MS LED. NS LED and MS LED are
dual-color LEDs, displaying the connection status and error messages of the communication module.
NS LED
LED Status
Indication
Corrective Action
OFF
No power supply or the CMM-DN02
does not pass the MAC ID test.
1. Check the power to the CMM-DN02 and see if
the connection is normal.
2. Make sure there is at least one node on the
bus.
3. Check if the baud rate of the CMM-DN02 is the
same as that of the other nodes.
Green light
flashes
The CMM-DN02 is on-line but does
not connect to the master.
1. Configure the CMM-DN02 to the scan list of the
master.
2. Re-download the configured data to the
master.
Green light ON
The CMM-DN02 is on-line and
normally connects to the master.
No action is required.
Red light
flashes
The CMM-DN02 is on-line, but I/O
connection is timed-out.
1. Check if the network connection is normal.
2. Check if the master operates normally.
