Delta VFD2A8MS21ANSAA User Manual

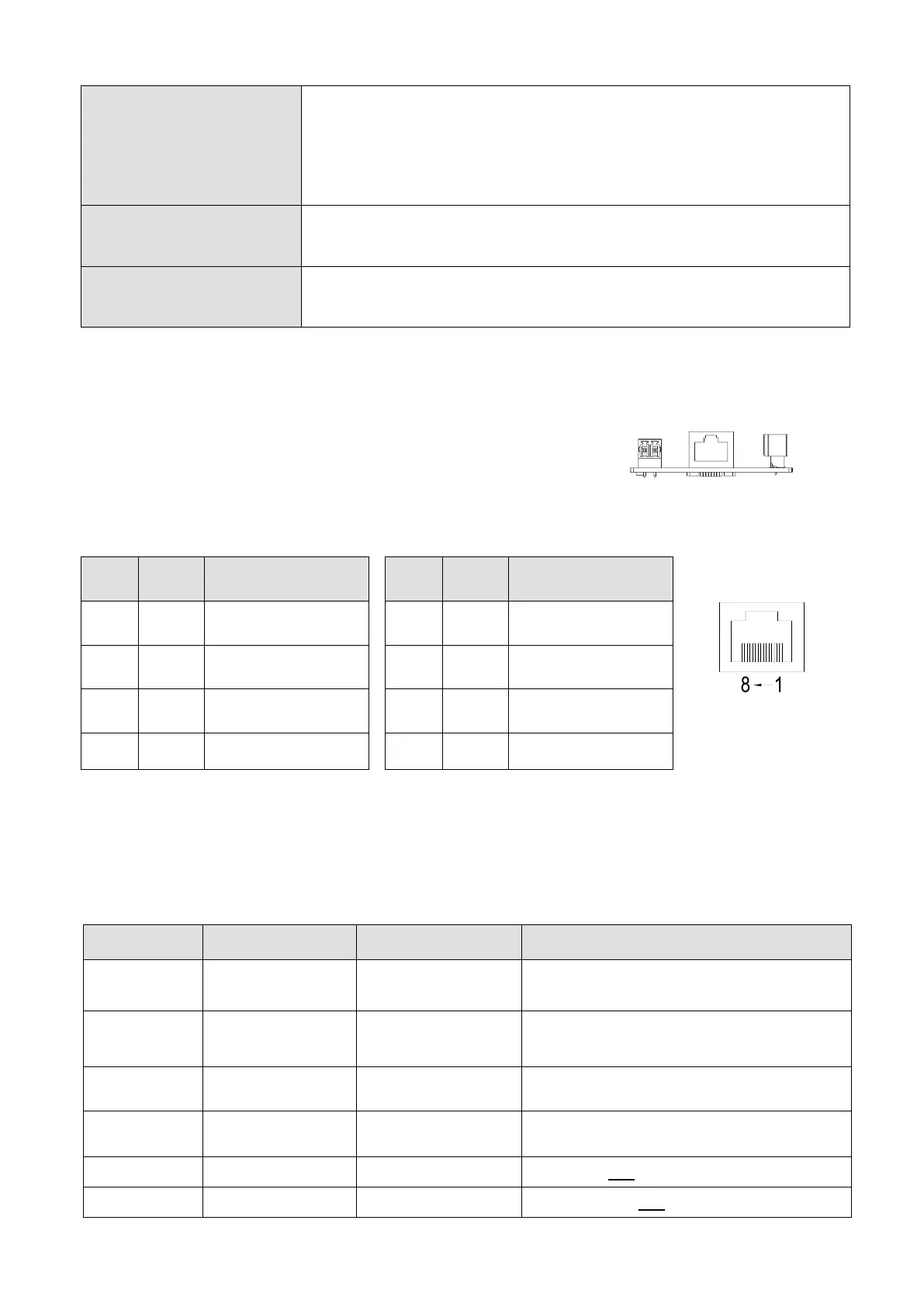

Chapter 8 Option CardsMS300
162
Environment
Noise Immunity
ESD (IEC 61800-5-1, IEC 61000-4-2)
EFT (IEC 61800-5-1, IEC 61000-4-4)
Surge Test (IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 61000-4-6)
Operation / Storage
Operation: -10–50°C (temperature), 90% (humidity)
Storage: -25–70°C (temperature), 95% (humidity)
Shock / Vibration Resistance
International standards:
IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
Table 8-21
8-4-4 Installation
Connecting the CMM-EIP02 to the Network
1. Turn off the power of the drive.
2. Open the front cover of the drive.
3. Connect the CAT-5e network cable to the RJ45 port of the
CMM-EIP02 (as shown in the right figure).
Figure 8-32
RJ45 PIN Definition
PIN
Signal
Definition
PIN
Signal
Definition
Figure 8-33
1
Tx+
Positive pole for data
transmission
5
--
N/C
2
Tx-
Negative pole for data
transmission
6
Rx-
Negative pole for data
reception
3
Rx+
Positive pole for data
reception
7
--
N/C
4
--
N/C
8
--
N/C
Table 8-22
Table 8-23
8-4-5 MS300 Communication Parameter Settings when Connecting to Ethernet
When you connect the MS300 to Ethernet, set up the communication parameters based on the table
below. The Ethernet master reads and writes the frequency command words and operation command
words after you set the communication parameters.
Parameters
Function
Current Setting Value
Description
00-20
Master frequency
command source
8
The frequency command is controlled by the
communication card.
00-21
Operation
command source
5
The operation command is controlled by the
communication card.
09-30
Communication
decoding method
0
The decoding method for Delta AC motor
drive.
09-75
IP configuration
0
0: Static IP
1: Dynamic IP (DHCP)
09-76
IP address 1
192
IP address 192.168.1.5
09-77
IP address 2
168
IP address 192.168.1.5
