Delta VFD2A8MS21ANSAA User Manual

Chapter 8 Option CardsMS300
172
Shock / Vibration
Resistance
International standards:
IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
Table 8-40

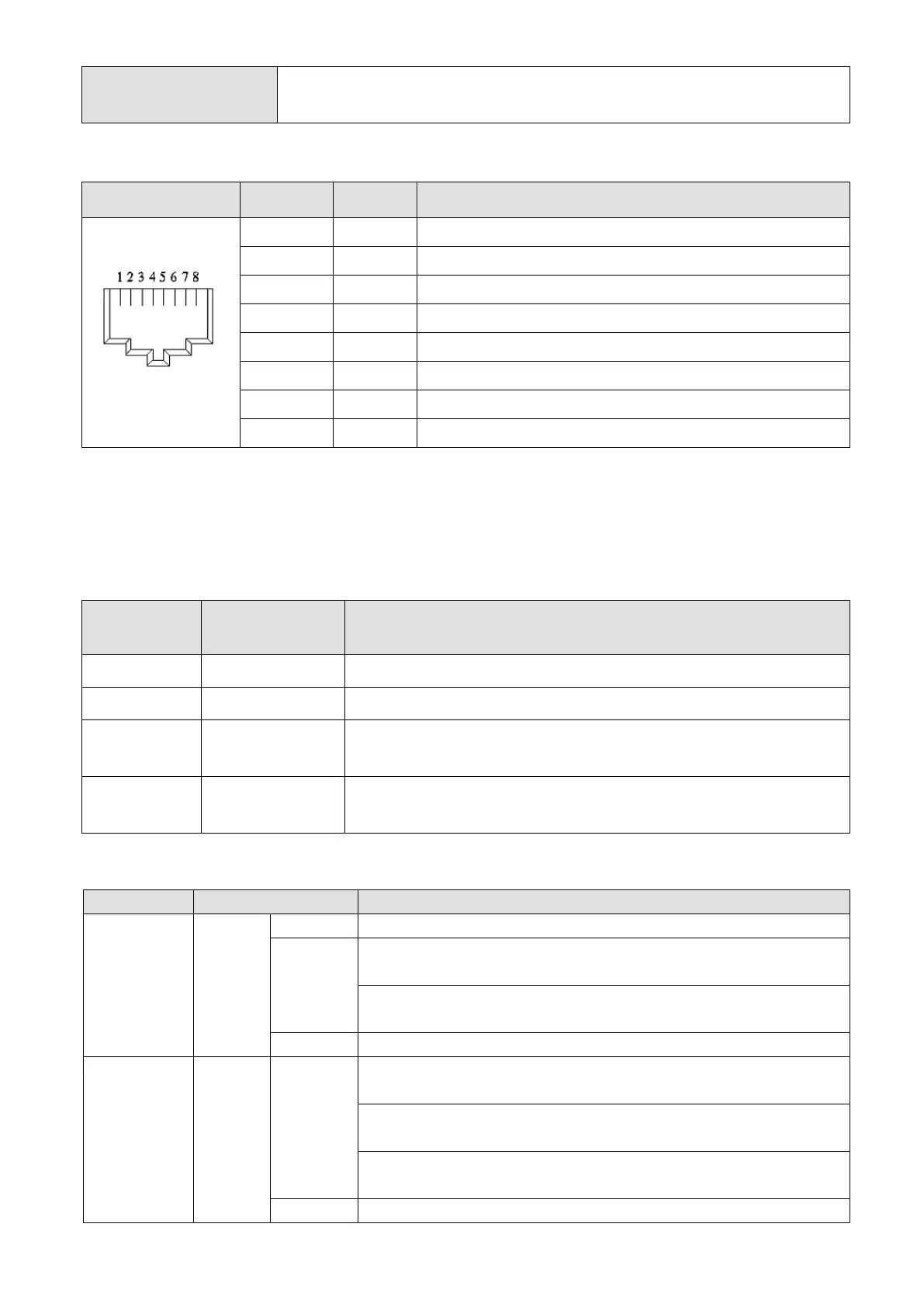

8-7-4 RJ45 PIN Definition
RJ45
PIN
Signal
Definition
Figure 8-45
1
Tx+
Data transmit positive
2
Tx-
Data transmit negative
3
Rx+
Data receive positive
4
--
N/C
5
--
N/C
6
Rx-
Data receive negative
7
--
N/C
8
--
N/C
Table 8-41
8-7-5 Communication Parameter Settings when MS300 Connects to EtherCAT
When operating MH300 with a CMM-EC02 card, you should set the control source and operation
source to be controlled by the communication card. Follow the table below to set up the
corresponding parameters.
Parameter
Setting Value /
Display
Description
00-20
8
The frequency command is controlled by the communication card.
00-21
5
The control command is controlled by the communication card.
09-30
1
Communication decoding method: EtherCAT only supports decoding
method 2 (60xx).
09-60
6
Communication card identification: When the drive connects with
CMM-EC02, the display shows 6 (EtherCAT Slave).
Table 8-42
8-7-6 LED Indicator Light
LED
Status
Indication
RUN
Green
ON
Normal operation
Flashes
Pre-operation (The light stays ON for 200 ms and then goes OFF for
200 ms alternately)
Operate in safe mode (The light stays ON for 200 ms and then goes
OFF for 1000 ms alternately)
OFF
Initial state
ERROR
Red
Flashes
Basic configuration error (The light stays ON for 200 ms and then goes
OFF for 200 ms alternately)
Status switching error (The light stays ON for 200 ms and then goes
OFF for 1000 ms alternately)
Time out (The light stays ON for 200 ms twice, and then goes OFF for
200 ms alternately)
OFF
No errors
