Delta VFD2A8MS21ANSAA

Chapter 8 Option CardsMS300
175

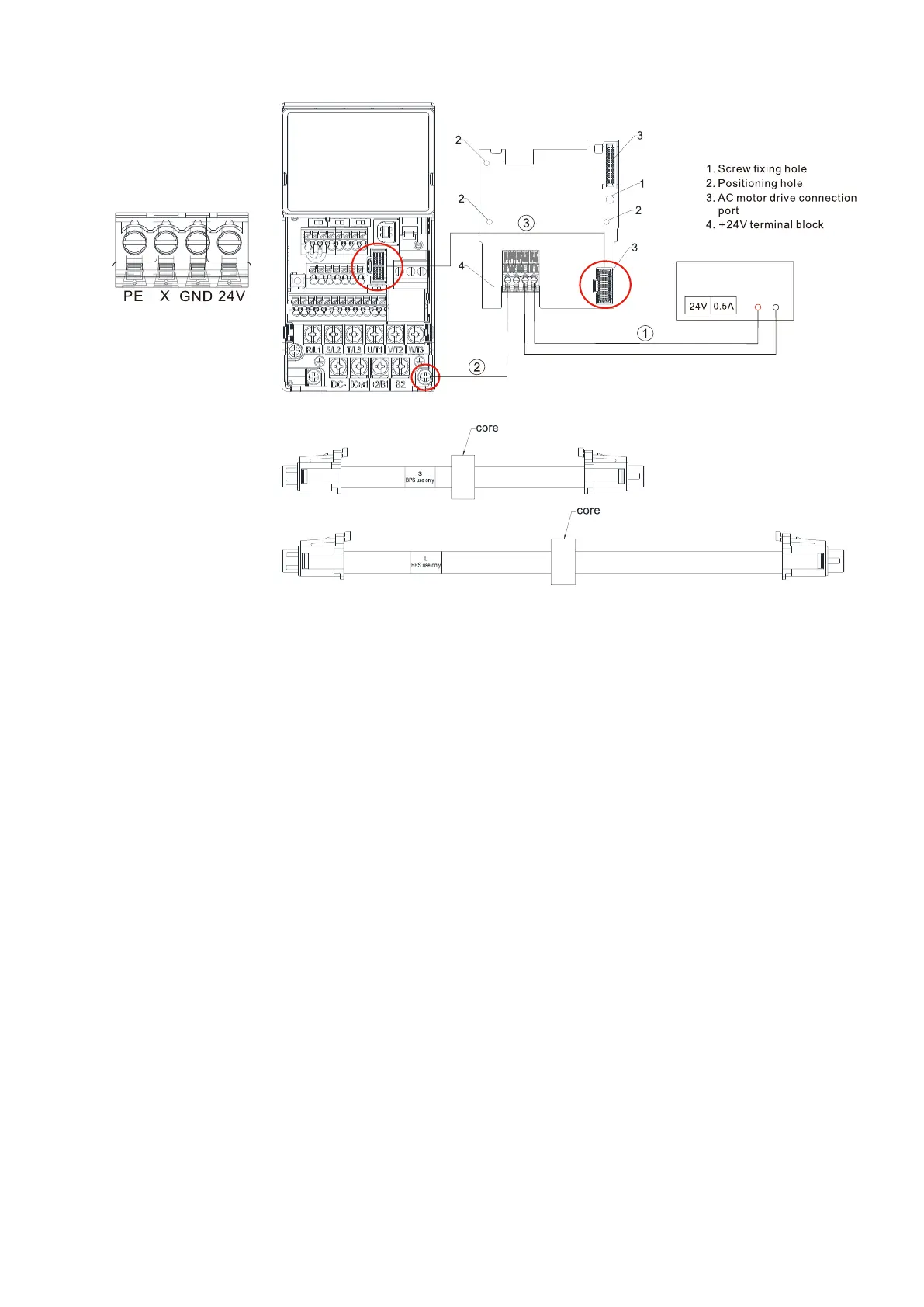

8-8-4 The Cable Connection of +24V Power Card
+24V terminal block
Figure 8-49
Figure 8-50
# S
# L
Figure 8-51
Operating procedures (refer to the mark ○
1
○
2
○
3
in the Figure 8-50)
○
1
Choose the power supply or the host to connect the positive and negative electrodes to +24V
power card.
○
2
Connect the ground terminal of +24V power card and the ground terminal of the drive.
○
3
Connect one side of the cable to the connection port of the drive and another side to the +24V
power card’s.
